Valve Guide Seal: Service and Repair

REMOVAL
1. Remove valve spring.

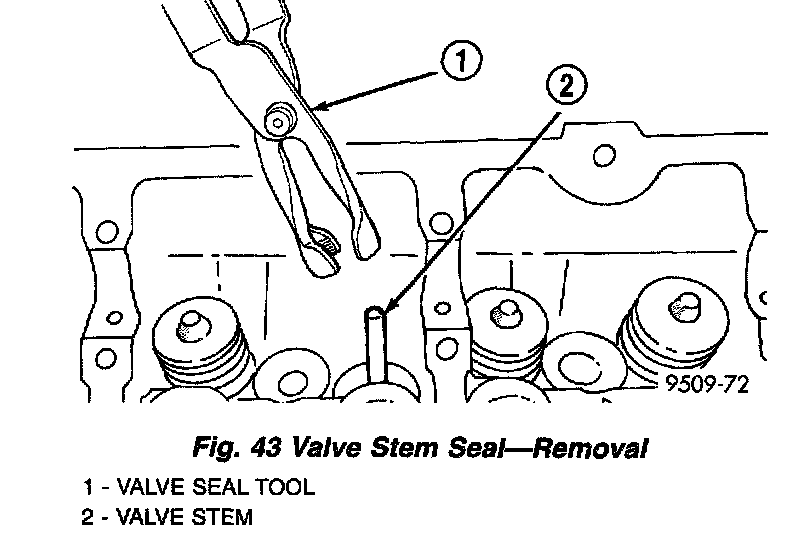

2. Remove valve stem seal by using a valve seal tool (Fig. 43).

INSTALLATION
1. The valve stem seat/valve spring seat should be pushed firmly and squarely over the valve guide using the valve stem as guide. Do not force seal against top of guide.
2. Install valve spring.
