Home >> Chrysler >> 2001 >> Sebring Convertible V6-2.7L VIN U >> Repair and Diagnosis >> Diagrams >> Connectors >> Connector and Ground Index >> Part 2 of 7

Part 2 of 7

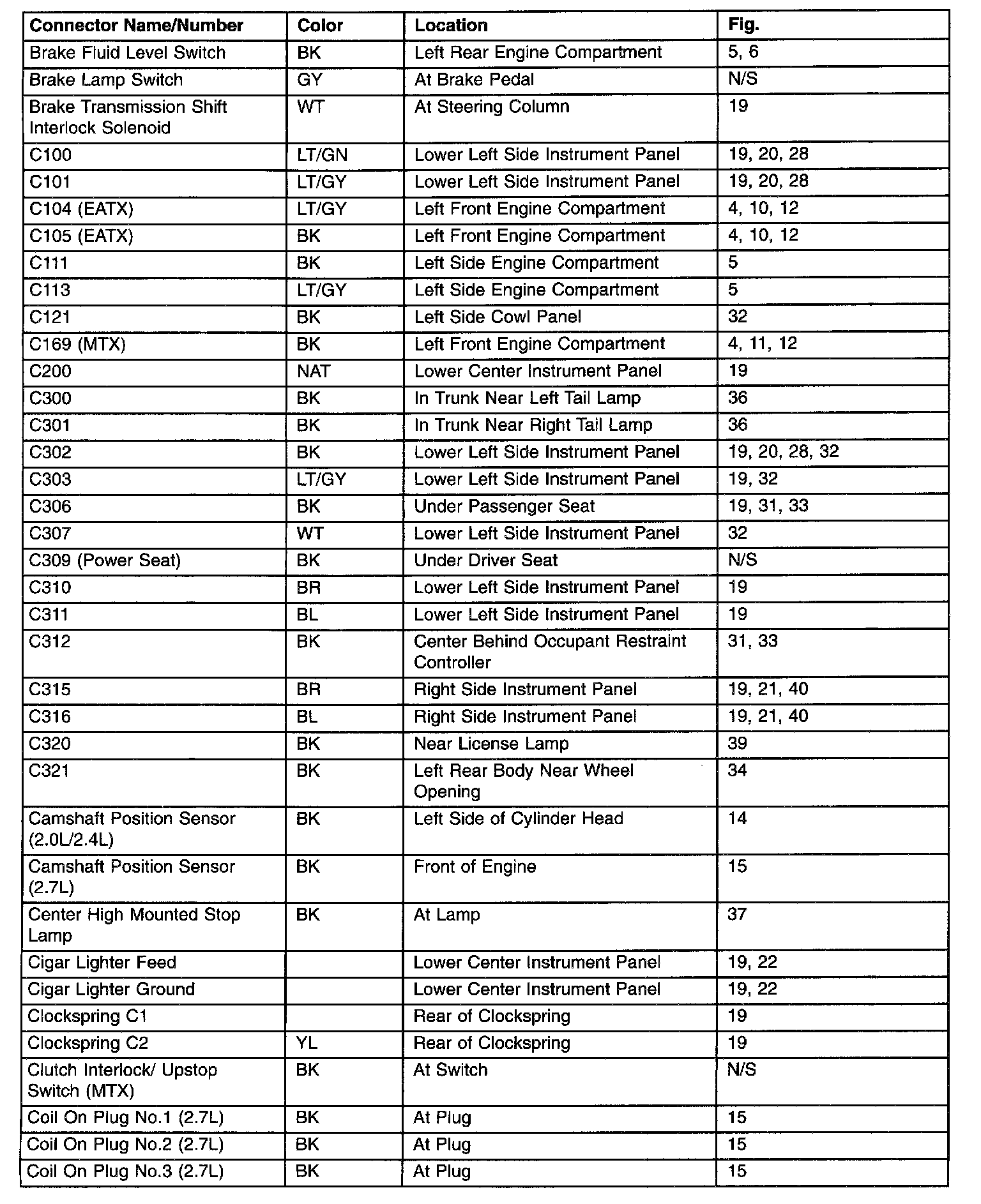

Connector/Ground Locations - JR27 Only ( Part 2 Of 7 ):
