Wiper Relay




Power Distribution Center (PDC):

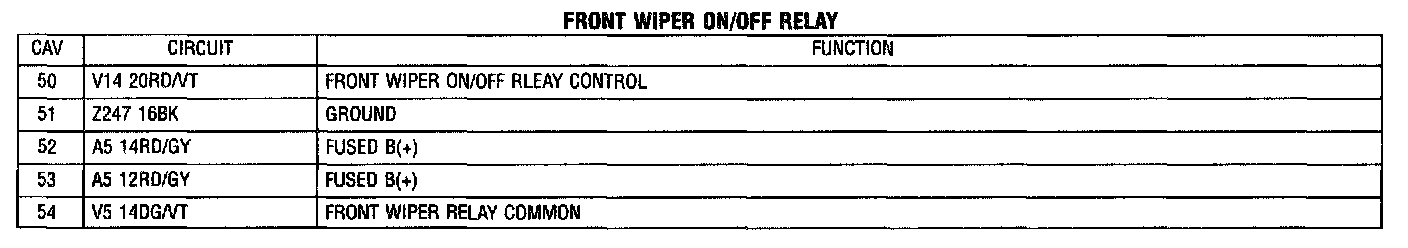

Front Wiper ON/OFF Relay:

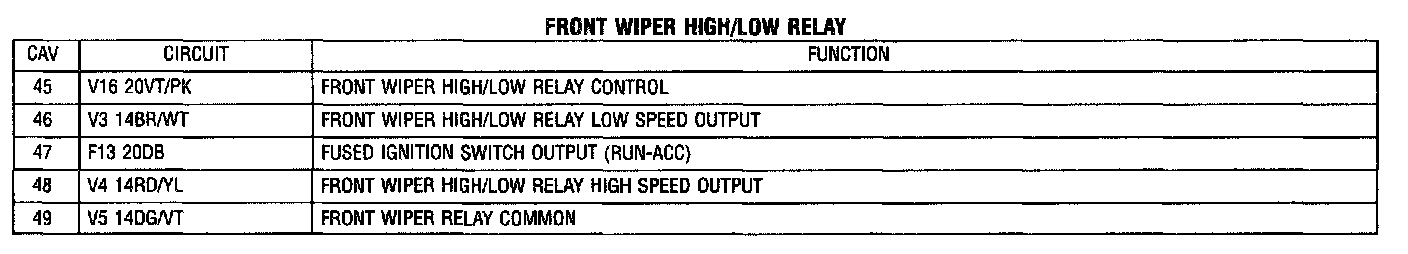

Front Wiper High/Low Relay:
