Sebring Convertible V6-2.7L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Tensioner
Seat Belt Tensioner

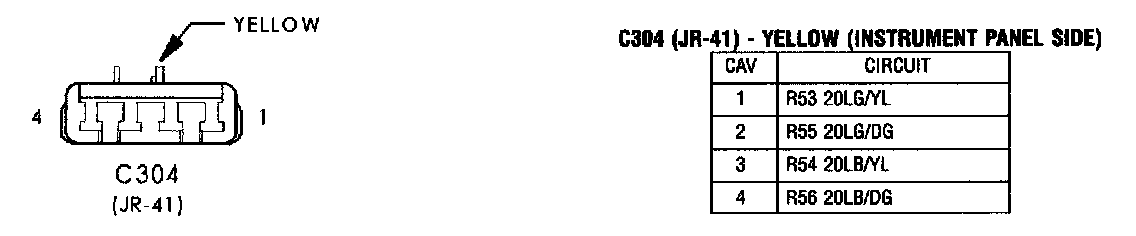

C304 (JR-41):

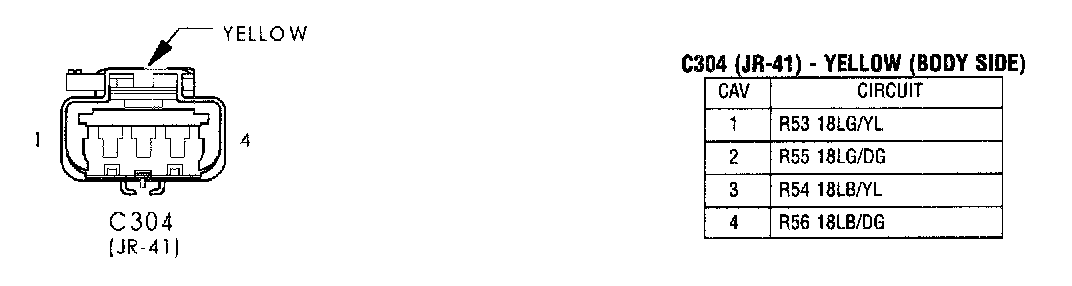

C304 JR-41:

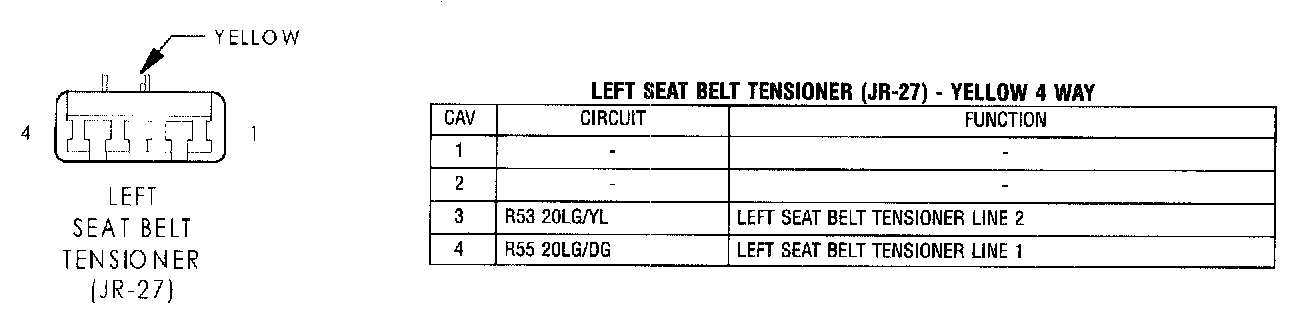

Left Seat Belt Tensioner (JR-27):

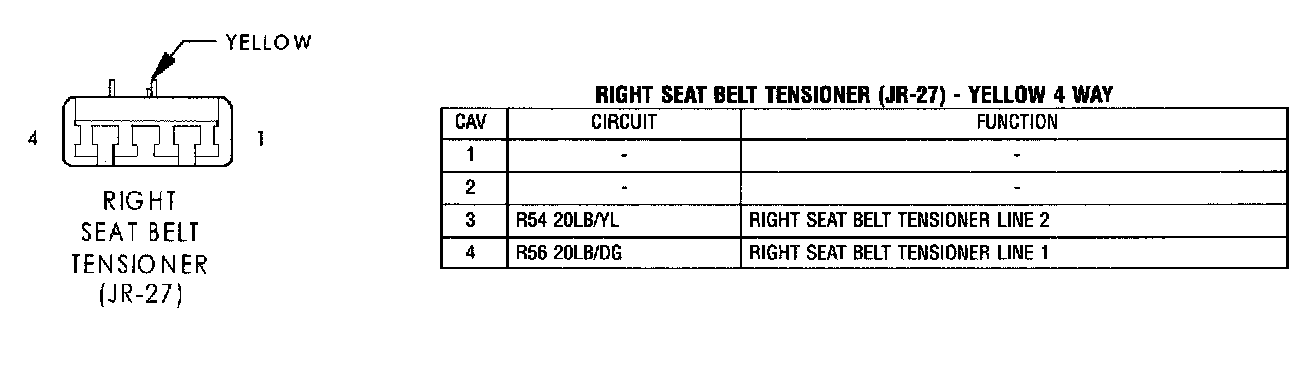

Right Seat Belt Tensioner (JR-27):
