Home >> Chrysler >> 2001 >> Sebring Convertible V6-2.7L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Control Module

Seat Belt Control Module

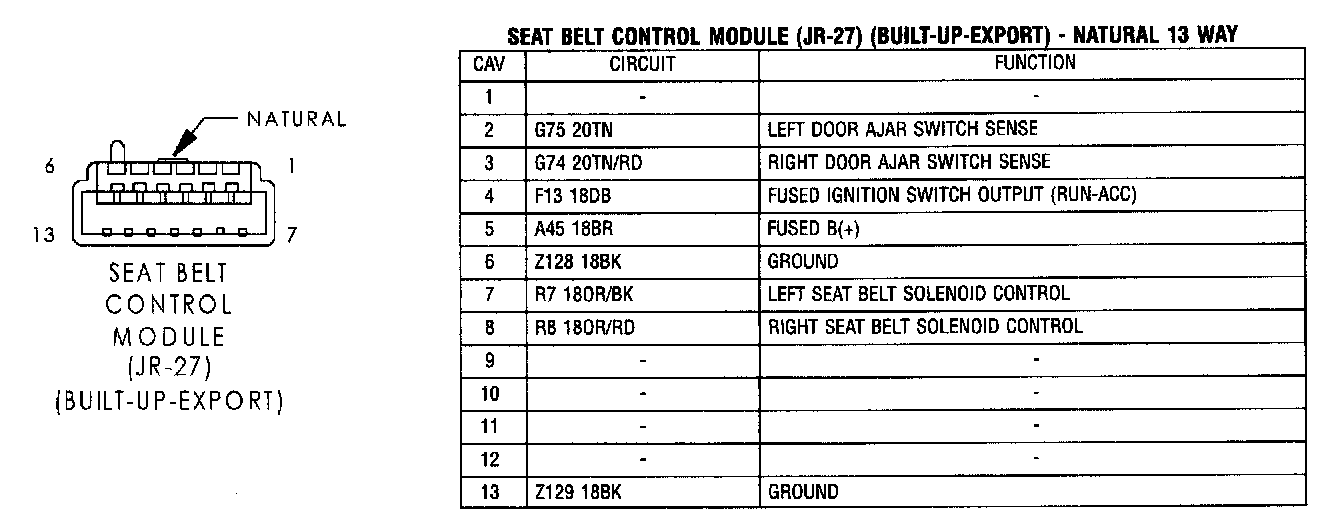

Seat Belt Control Module (JR-27) (Built-up Export):
