Home >> Chrysler >> 2001 >> Sebring Convertible V6-2.7L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo

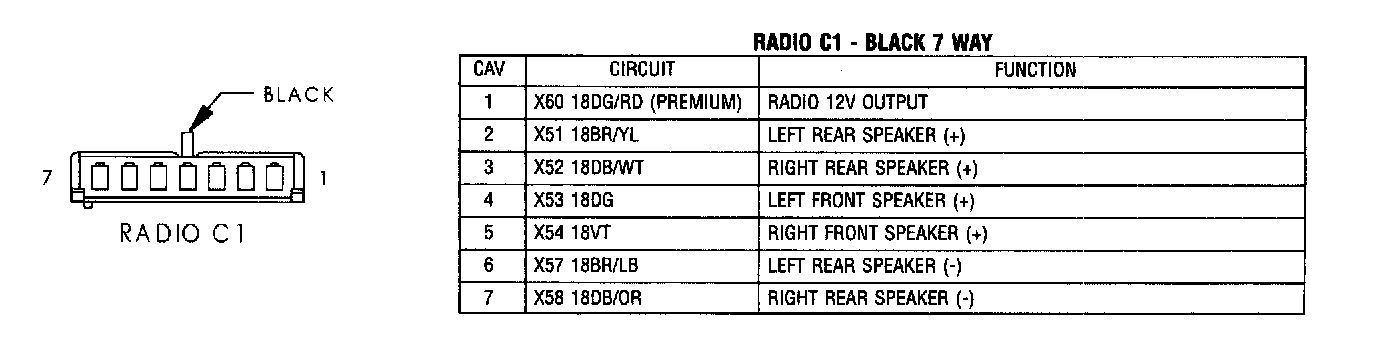

Radio C1:

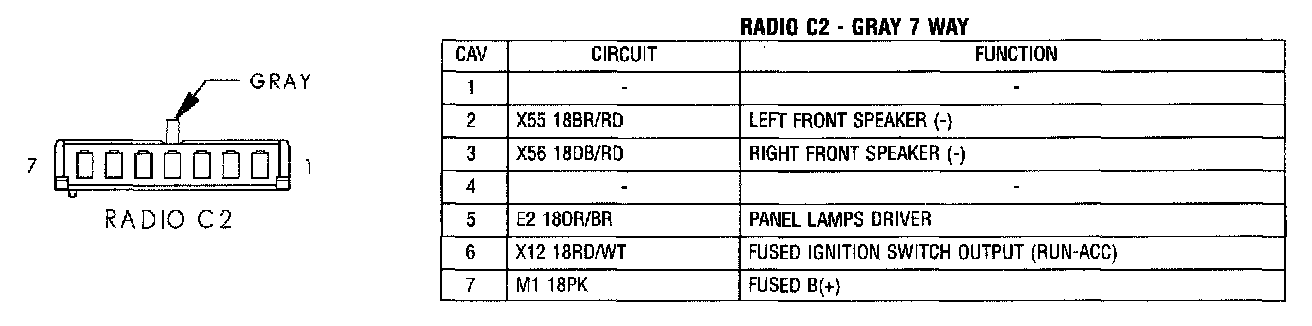

Radio C2:




Radio C3:
