Radiator Cooling Fan Motor Relay
Radiator Cooling Fan Motor Relay
Power Distribution Center (PDC):

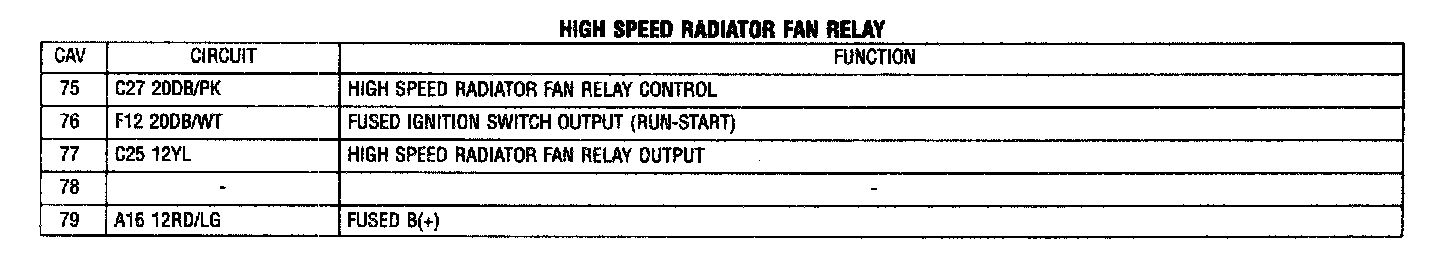

High Speed Radiator Fan Relay:

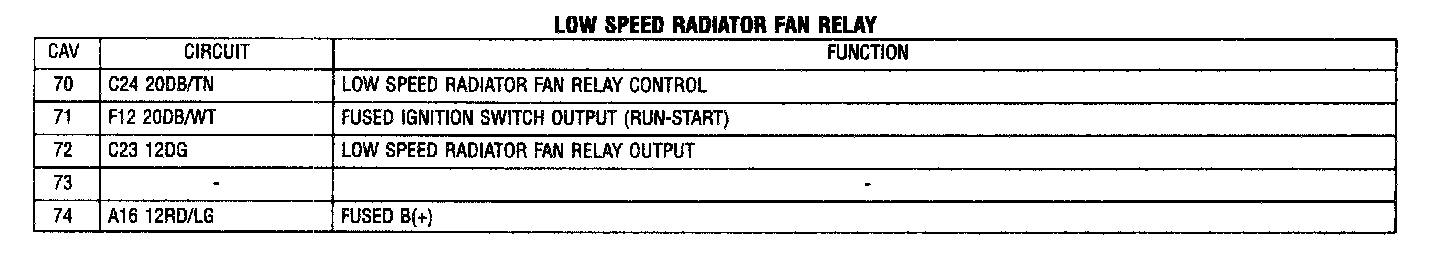

Low Speed Radiator Fan Relay:
