Connector Views
>>
Heating and Air Conditioning
>>
System Diagram
System Diagram

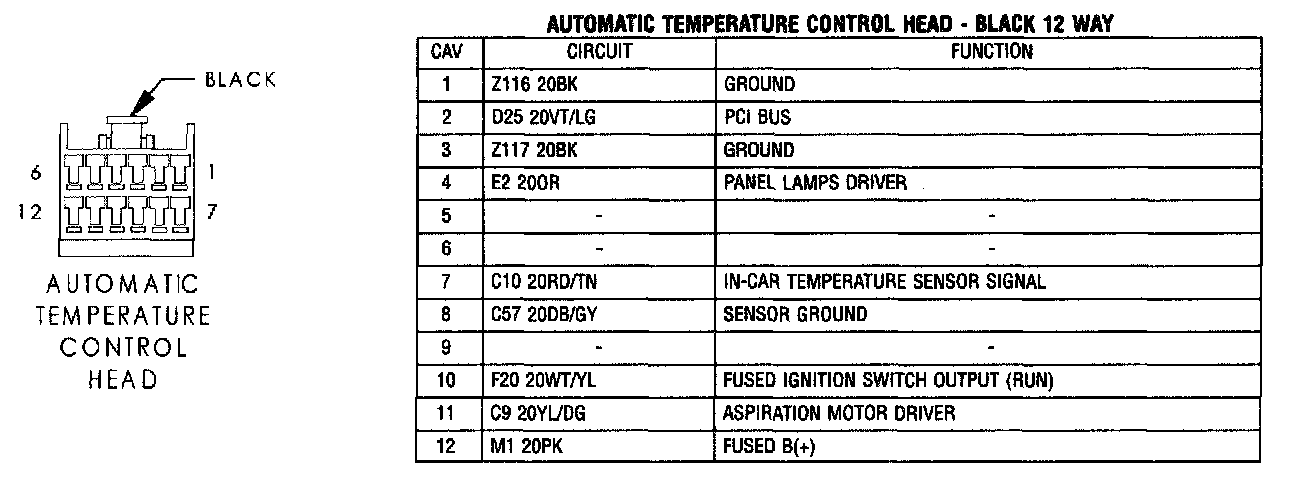

Automatic Temperature Control Head:

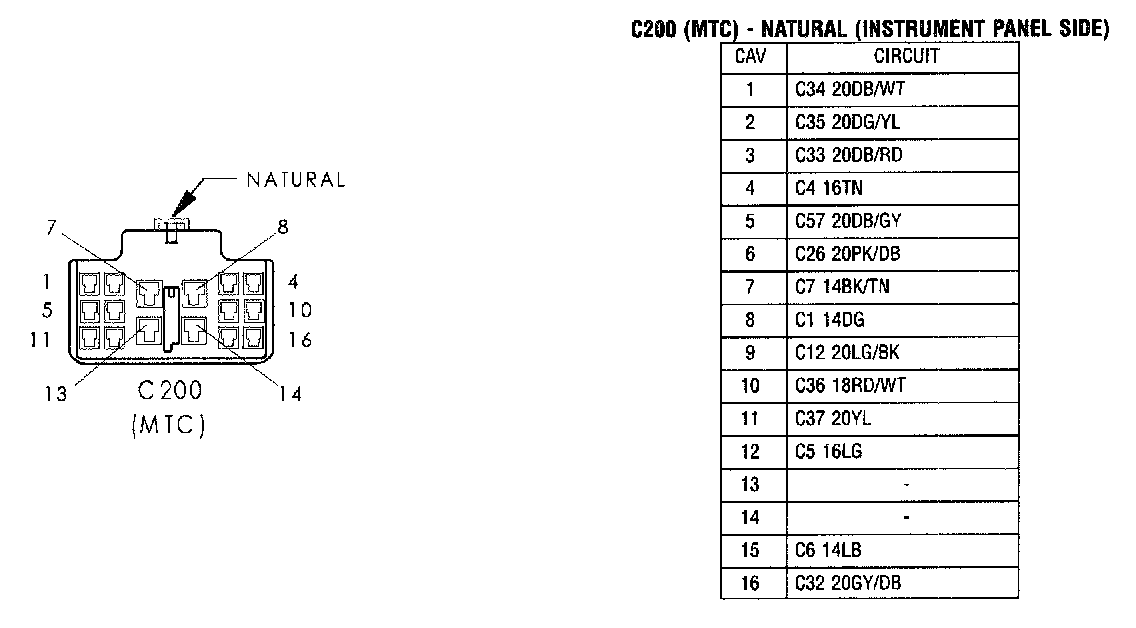

C200 (MTC):

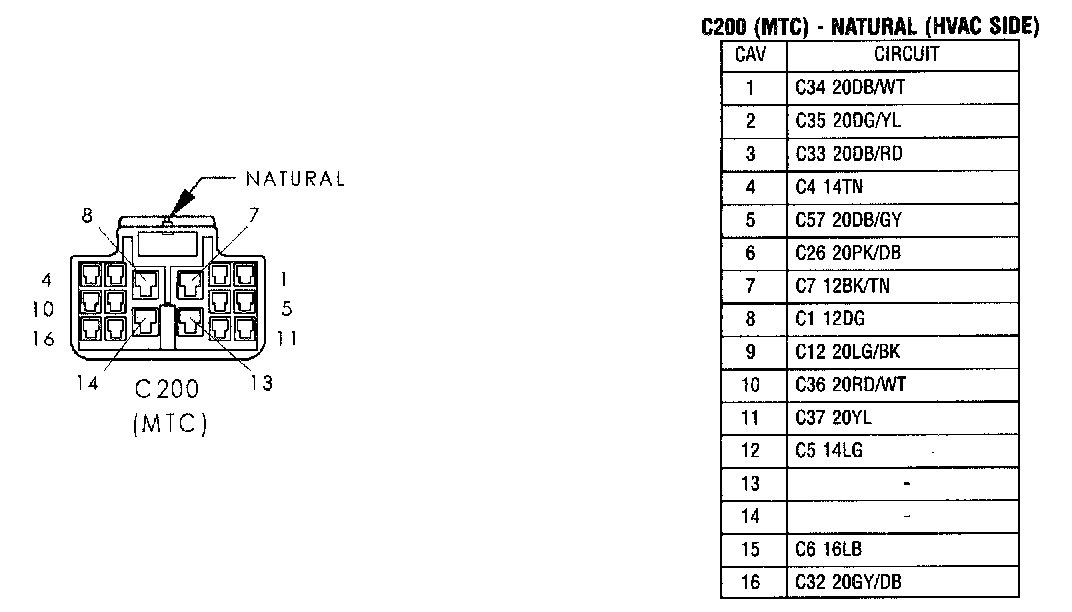

C200 (MTC):
