Home >> Chrysler >> 2001 >> Sebring Convertible V6-2.7L VIN U >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp Washer Pump

Headlamp Washer Pump

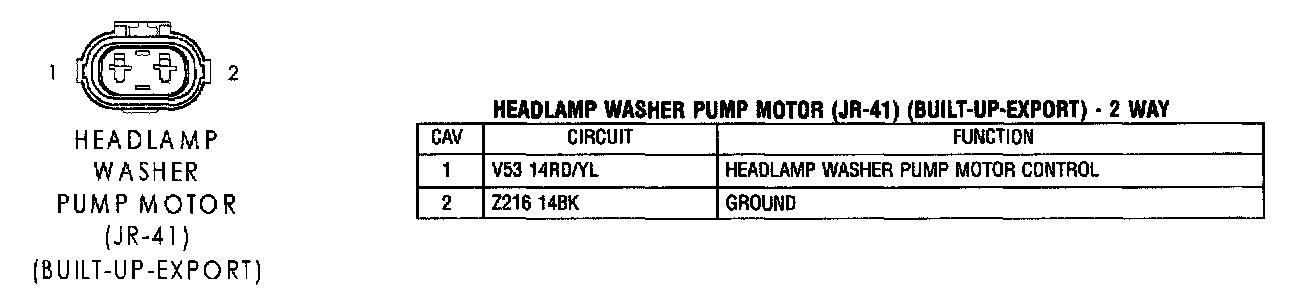

Headlamp Washer Pump Motor (JR-41) (Built-up-export):
