Air Bag Control Module

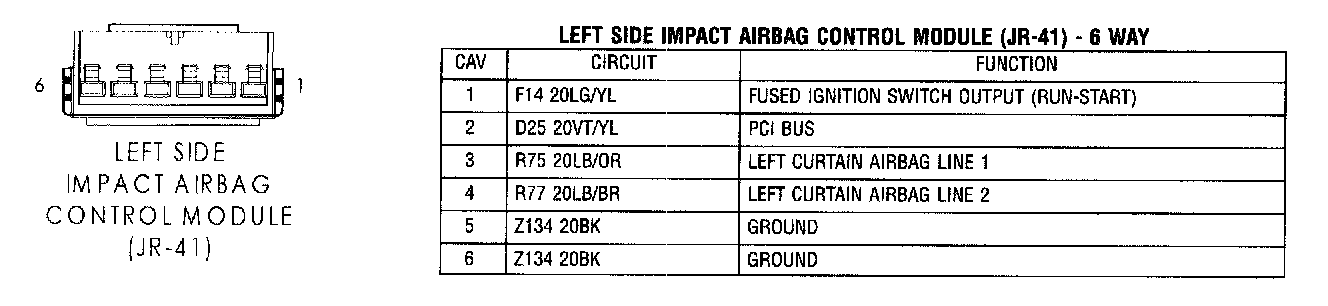

Left Side Impact Airbag Control Module (JR-41):

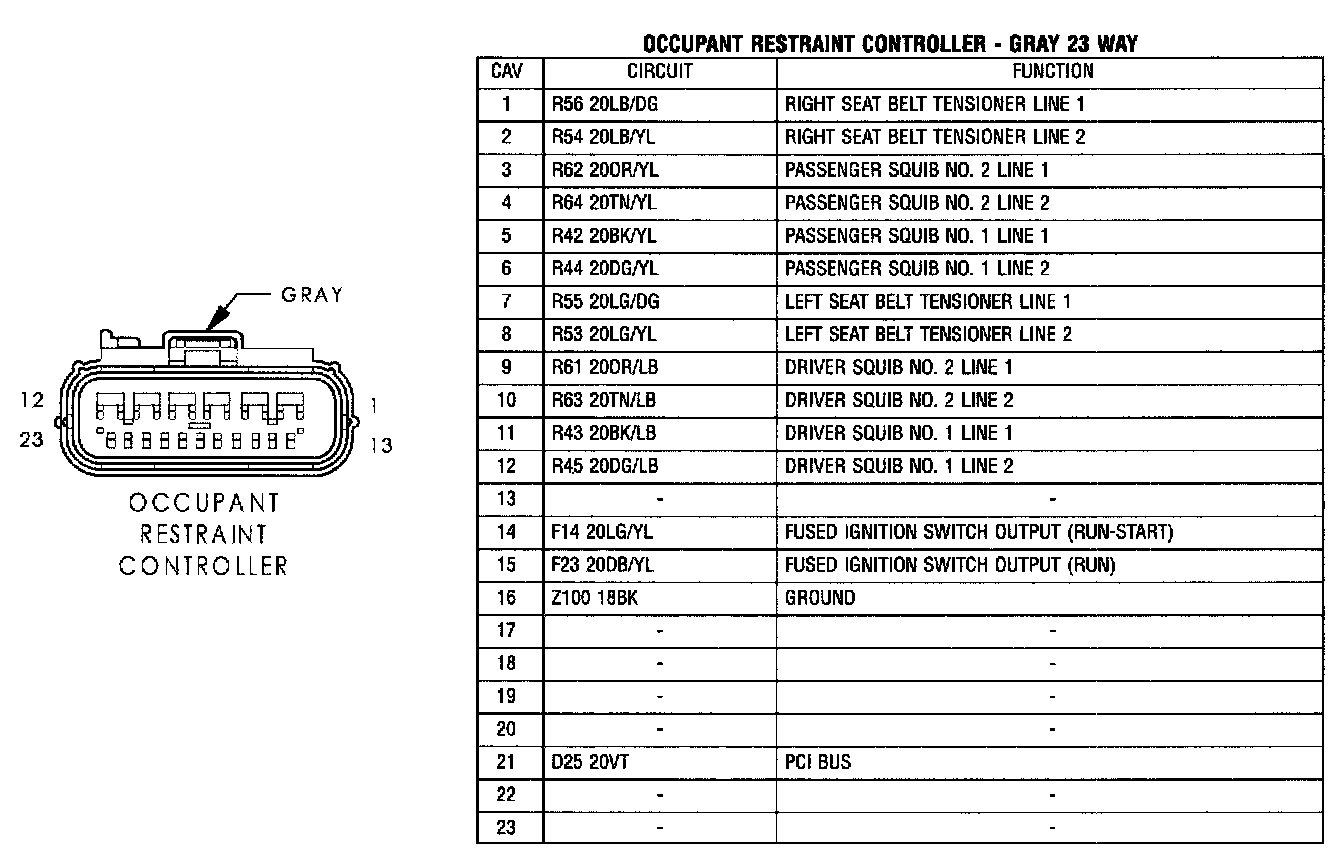

Occupant Restraint Controller:

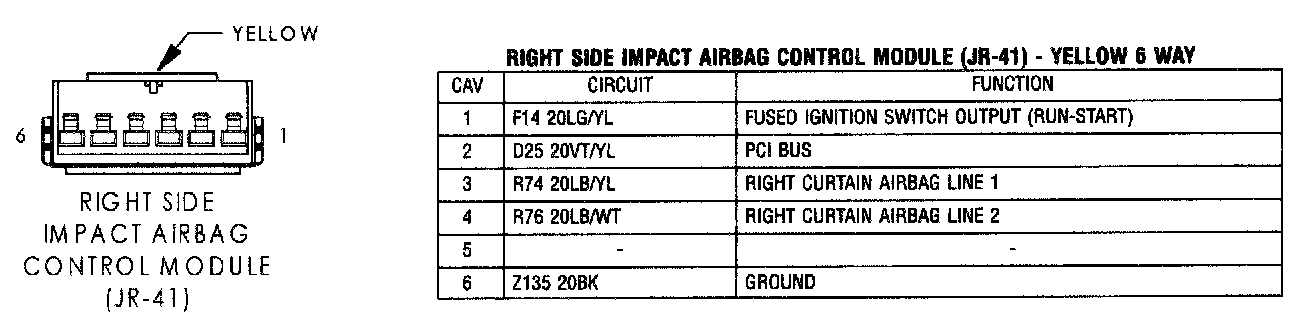

Right Side Impact Airbag Control Module (JR-41):
