Air Bag
Air Bag

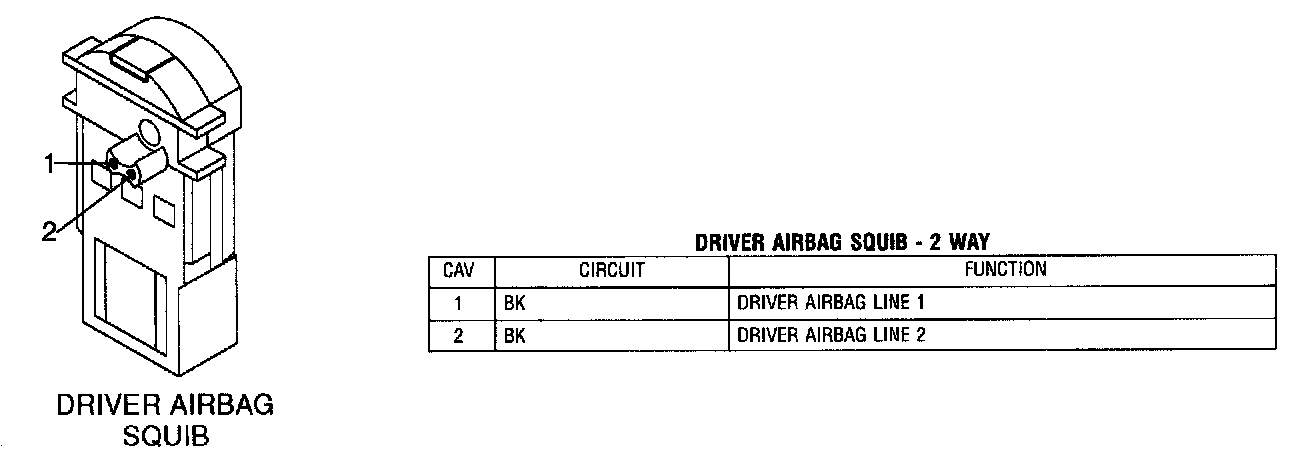

Driver Airbag Squib:

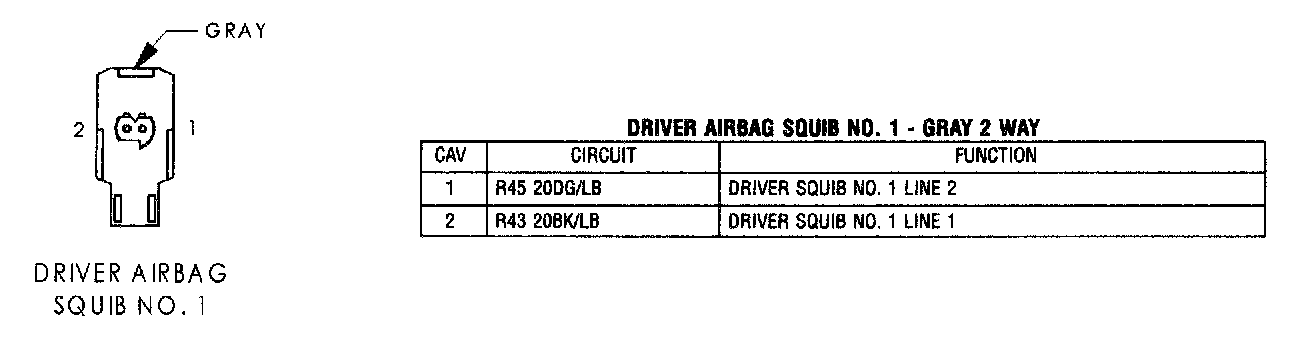

Driver Airbag Squib No. 1:

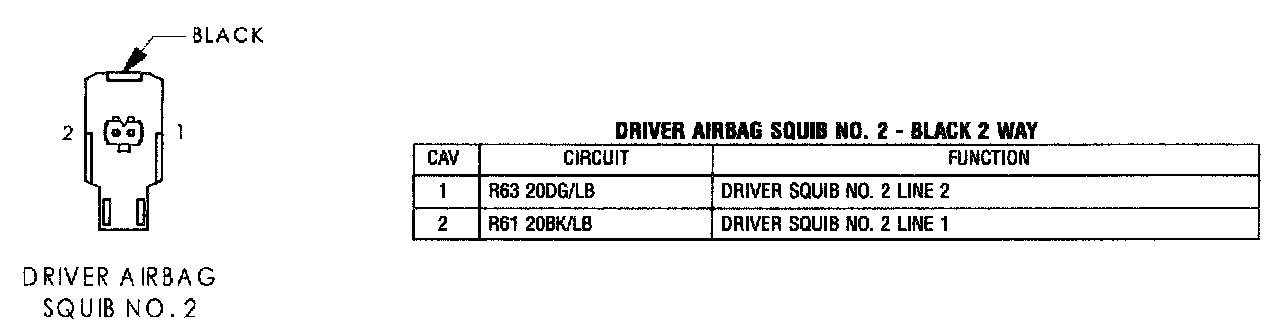

Driver Airbag Squib No. 2:

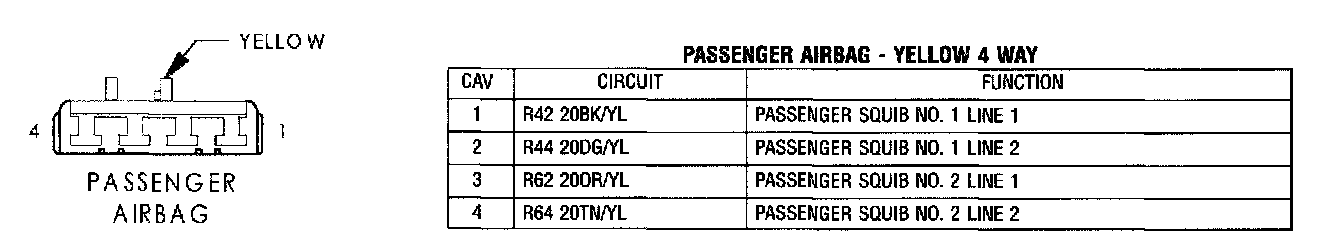

Passenger Airbag:
