Disassembly and Assembly
DISASSEMBLY - ICU1. Remove the ICU from the vehicle.
2. Disconnect the pump/motor wiring harness from the CAB.

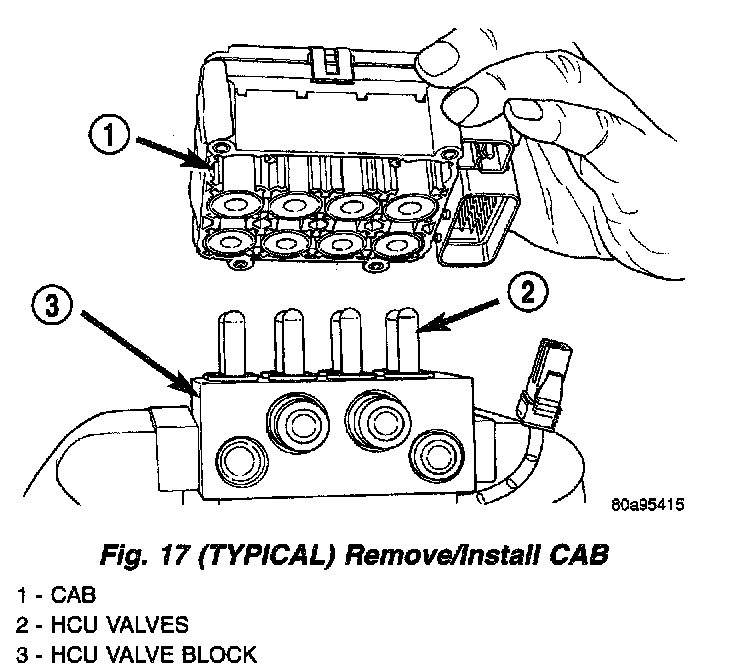

CAB Attaching Bolts:
3. Remove the 4 bolts attaching the CAB to the HCU.
4. Remove the CAB from the HCU.
ASSEMBLY - ICU
1. Install the CAB on the HCU.
2. Install the 4 bolts mounting the CAB to the HCU. Tighten the CAB mounting bolts to a torque of 2 Nm (17 inch lbs.).
3. Plug the pump/motor wiring harness into the CAB.
4. Install the ICU in the vehicle and bleed the base and ABS hydraulic systems.
