Radio/Stereo: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel center bezel trim.
3. Remove radio mounting screws.

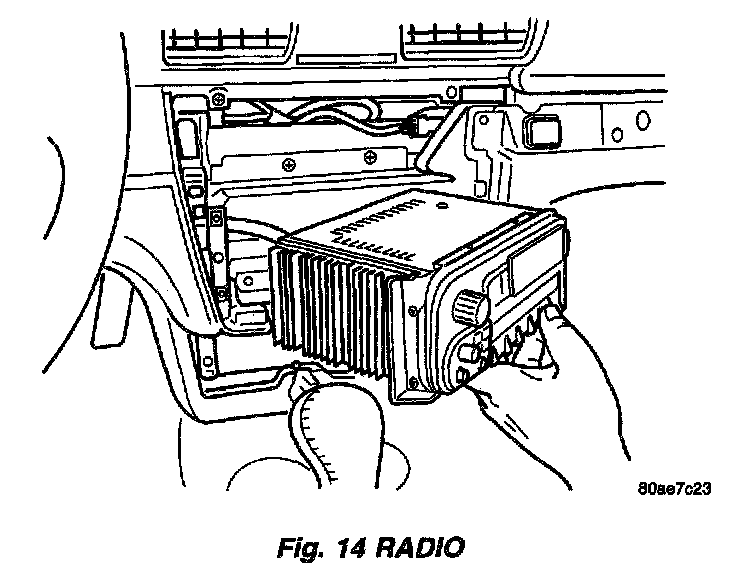

Fig.14 Radio:

4. Remove radio.
5. Disconnect wire harness connectors.
6. Disconnect antenna lead from radio.
7. Disconnect CD changer cable, if equipped.

INSTALLATION
1. Connect CD changer cable, if equipped.
2. Connect wire harness connector to radio.
3. Connect antenna to radio.
4. Install radio and screws.
5. Install instrument panel center bezel trim.
6. Connect battery negative cable.
