P1781

P1781-OD PRESSURE SWITCH SENSE CIRCUIT

When Monitored and Set Condition:
P1781-OD PRESSURE SWITCH SENSE CIRCUIT

When Monitored: Whenever the engine is running.

Set Condition: The appropriate DTC is set if one of the Pressure Switches are open or closed at the wrong time in a given gear.

POSSIBLE CAUSES:
TRANSMISSION RELAY DTC'S PRESENT
INTERMITTENT WIRING AND CONNECTIONS
TRANSMISSION RELAY OUTPUT CIRCUIT OPEN

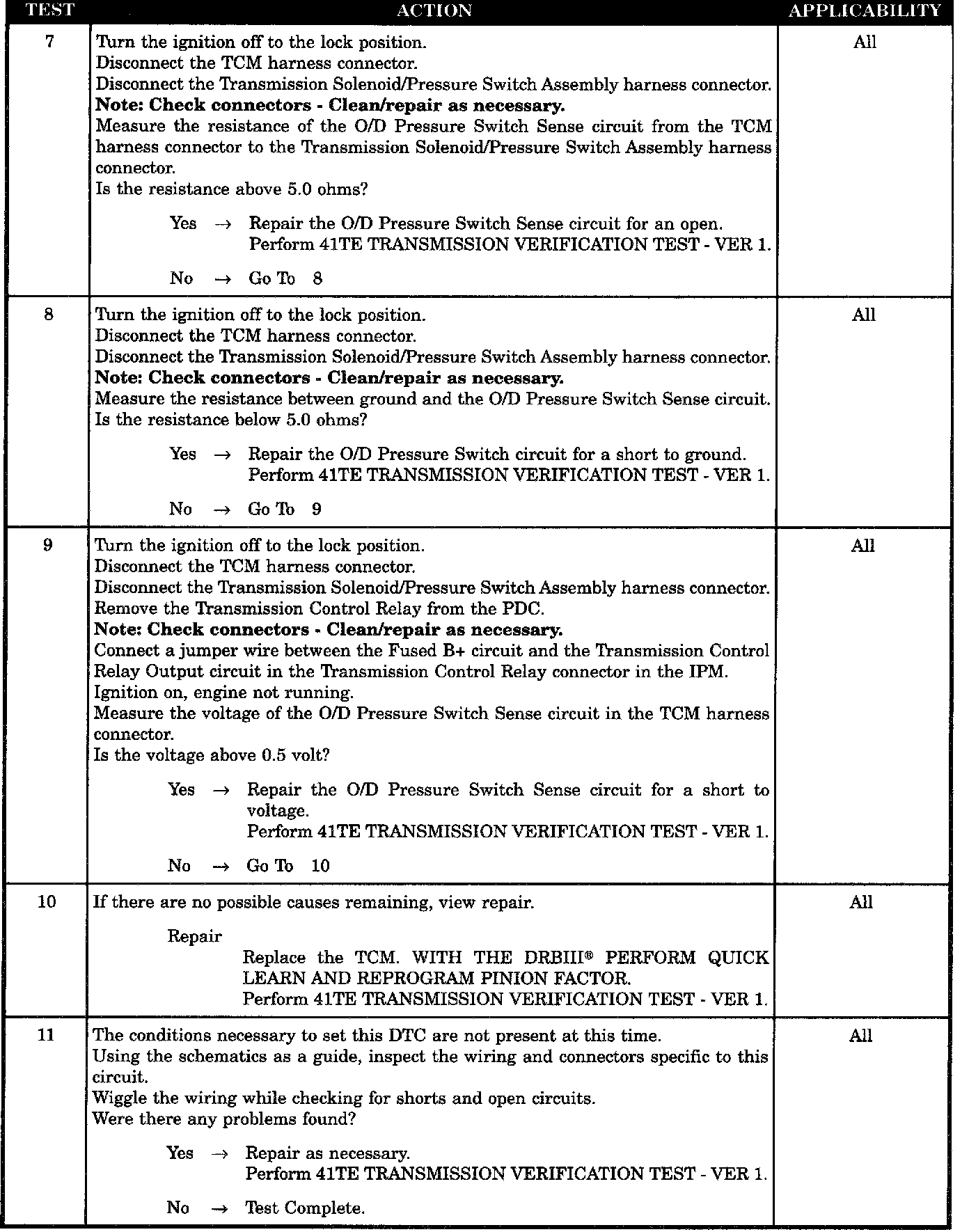

O/D PRESSURE SWITCH SENSE CIRCUIT OPEN
O/D PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND
O/D PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
O/D PRESSURE SWITCH INOPERATIVE
TCM - O/D PRESSURE SWITCH
