P1765

P1765-SWITCHED BATTERY

When Monitored and Set Condition:
P1765-SWITCHED BATTERY

When Monitored: Ignition key is turned from the OFF position to RUN position and/or ignition key is turned from the CRANK position to RUN position.

Set Condition: This DTC is set if the Transmission Control Module senses voltage on any of the Pressure Switch Inputs prior to the TOM energizing the Transmission Control Relay.

POSSIBLE CAUSES:
INTERMITTENT WIRING AND CONNECTORS

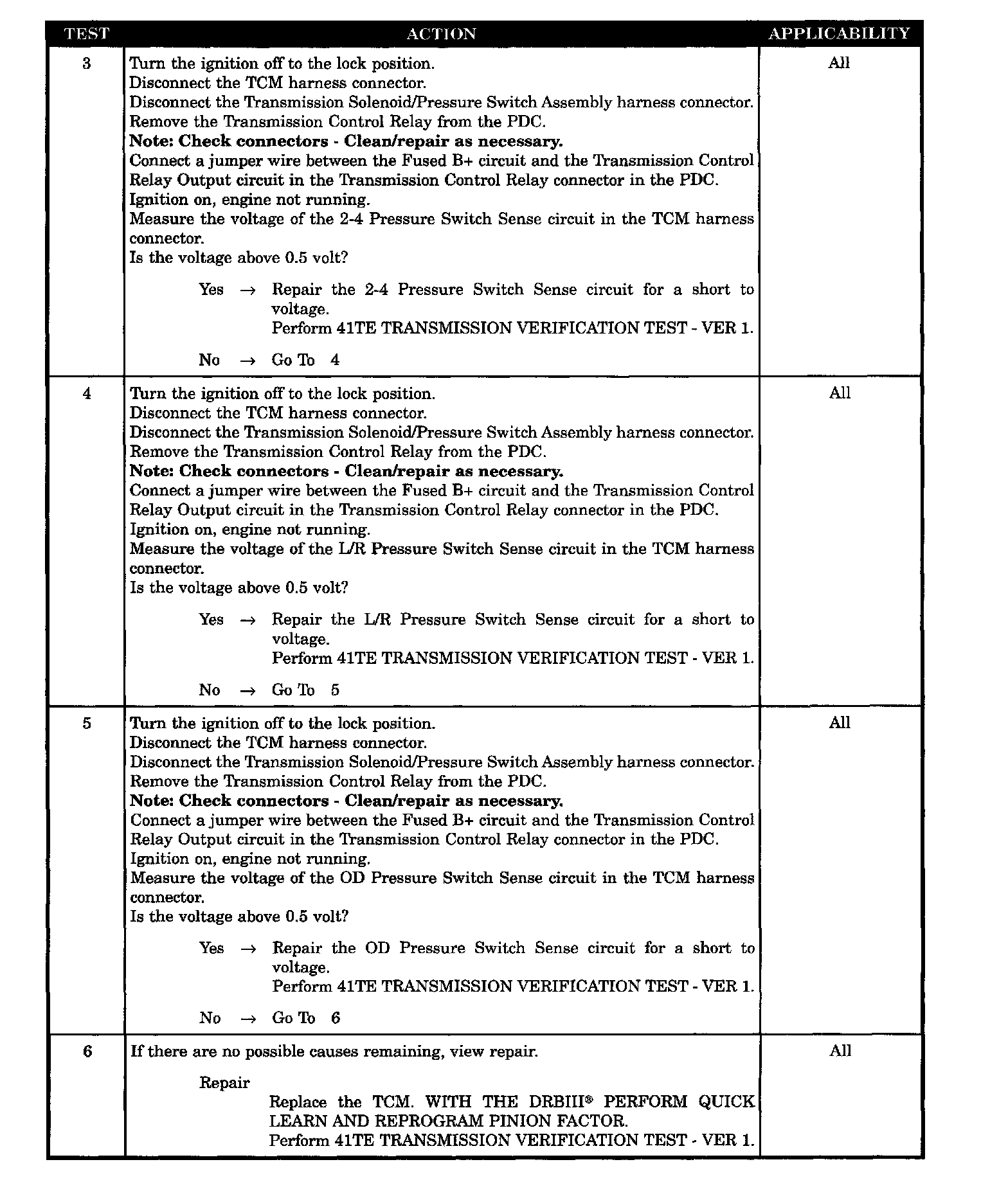

2-4 PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
OP PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE
TCM - SWITCHED BATTERY
