P1714

P1714-LOW BATTERY VOLTAGE

When Monitored and Set Condition:
P1714-LOW BATTERY VOLTAGE

When Monitored: With the engine running and the TCM has closed the Transmission Control Relay.

Set Condition: If battery voltage at TCM Transmission Control Relay Output Sense circuit is less than 10.0 volts for 15 seconds. *P-1714 generally indicates a gradually falling battery voltage or resistive connections to the TCM.

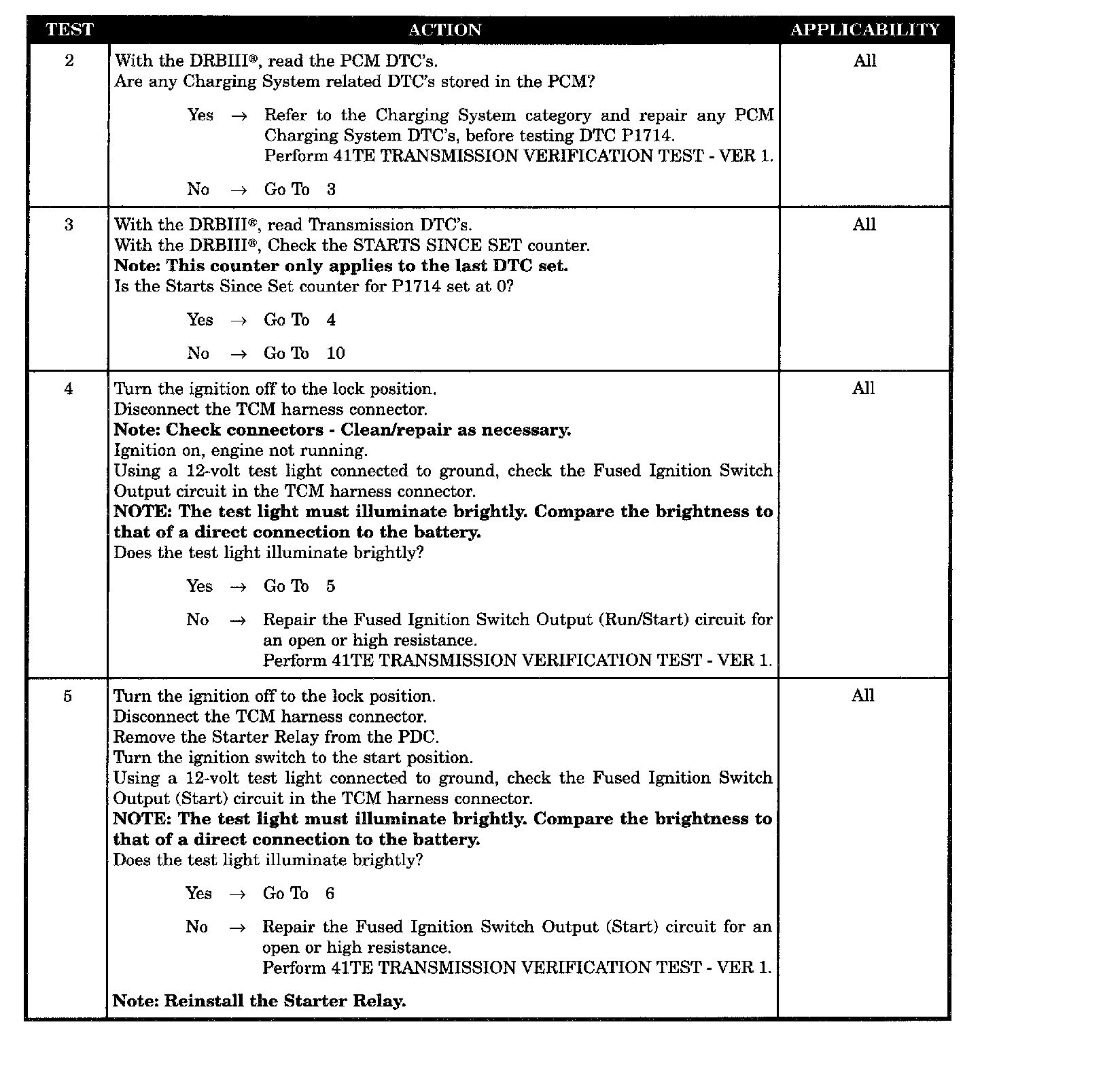

POSSIBLE CAUSES:
RELATED CHARGING SYSTEM DTC'S
INTERMITTENT WIRING AND CONNECTORS
FUSED IGNITION SWITCH OUTPUT (RUN/START) CIRCUIT OPEN
FUSED IGNITION SWITCH OUTPUT (START) CIRCUIT OPEN
GROUND CIRCUIT OPEN
FUSE B+ CIRCUIT
TRANS CONTROL RELAY OUTPUT TO TCM HIGH RESISTANCE
TCM - LOW BATTERY VOLTAGE
