P1697

Tests 1 - 2:

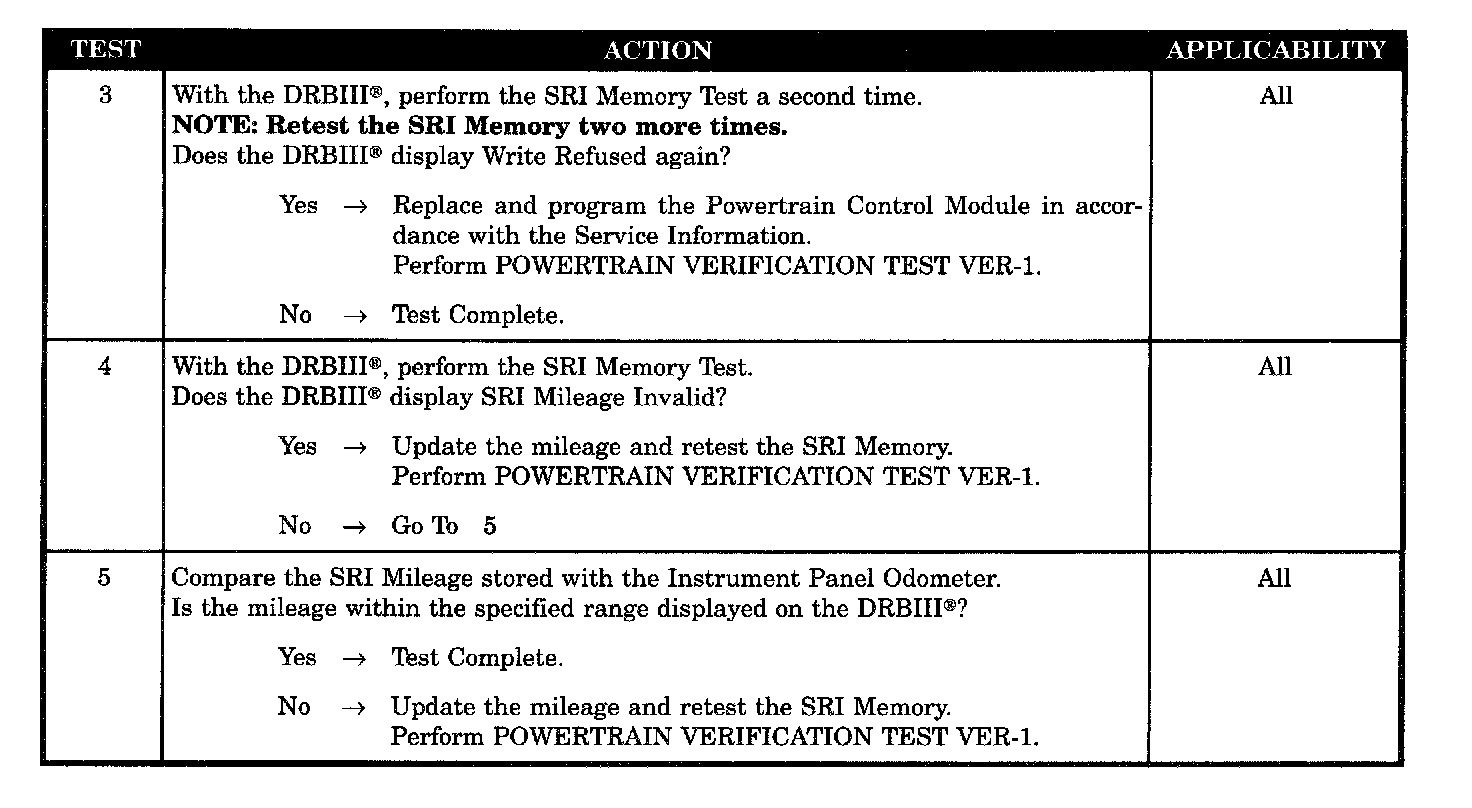

Tests 3 - 5:

SYMPTOM
P1697-PCM FAILURE SRI MILE NOT STORED

TEST NOTE
This symptom is diagnosed using the test P1696-PCM FAILURE EEPROM WRITE DENIED.

WHEN MONITORED
Ignition key ON, Continuous.

SET CONDITION
An attempt to program/write to the internal EEPROM failed, Also checks at powerdown.

POSSIBLE CAUSES
- DRB displays write failure
- DRB displays write refused 2nd time
- DRB displays SRI mileage invalid
- Compare SRI mileage with odometer
