P0755

P0755-2-4 SOLENOID CIRCUIT

When Monitored and Set Condition:
P0755-2-4 SOLENOID CIRCUIT

When Monitored: Initially at power-up, then every 10 seconds thereafter. They will also be tested immediately after a Gear Ratio or Pressure Switch error is detected.

Set Condition: Three consecutive Solenoid continuity test failures, or one failure if test is run in response to a Gear Ratio or Pressure Switch error.

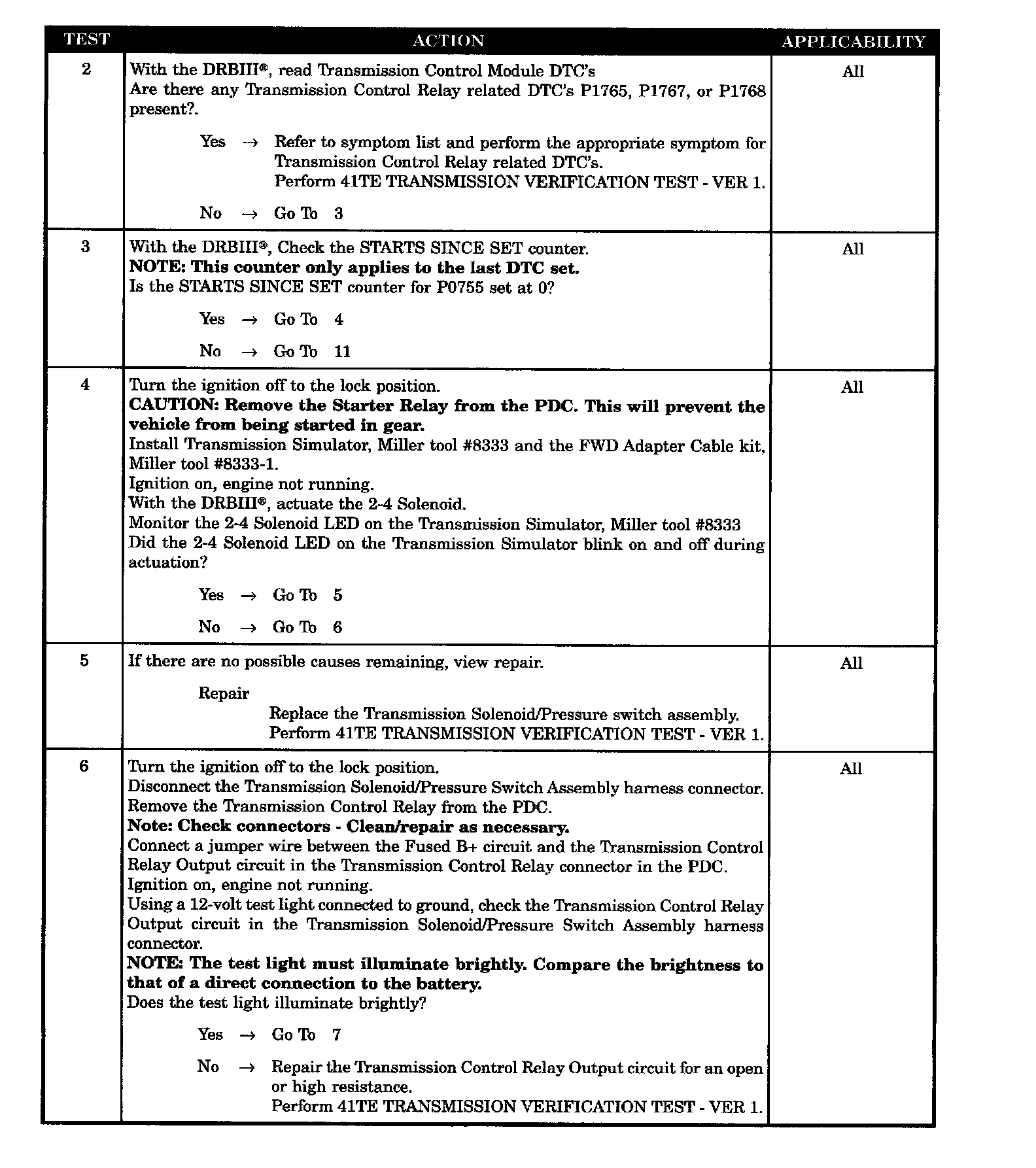

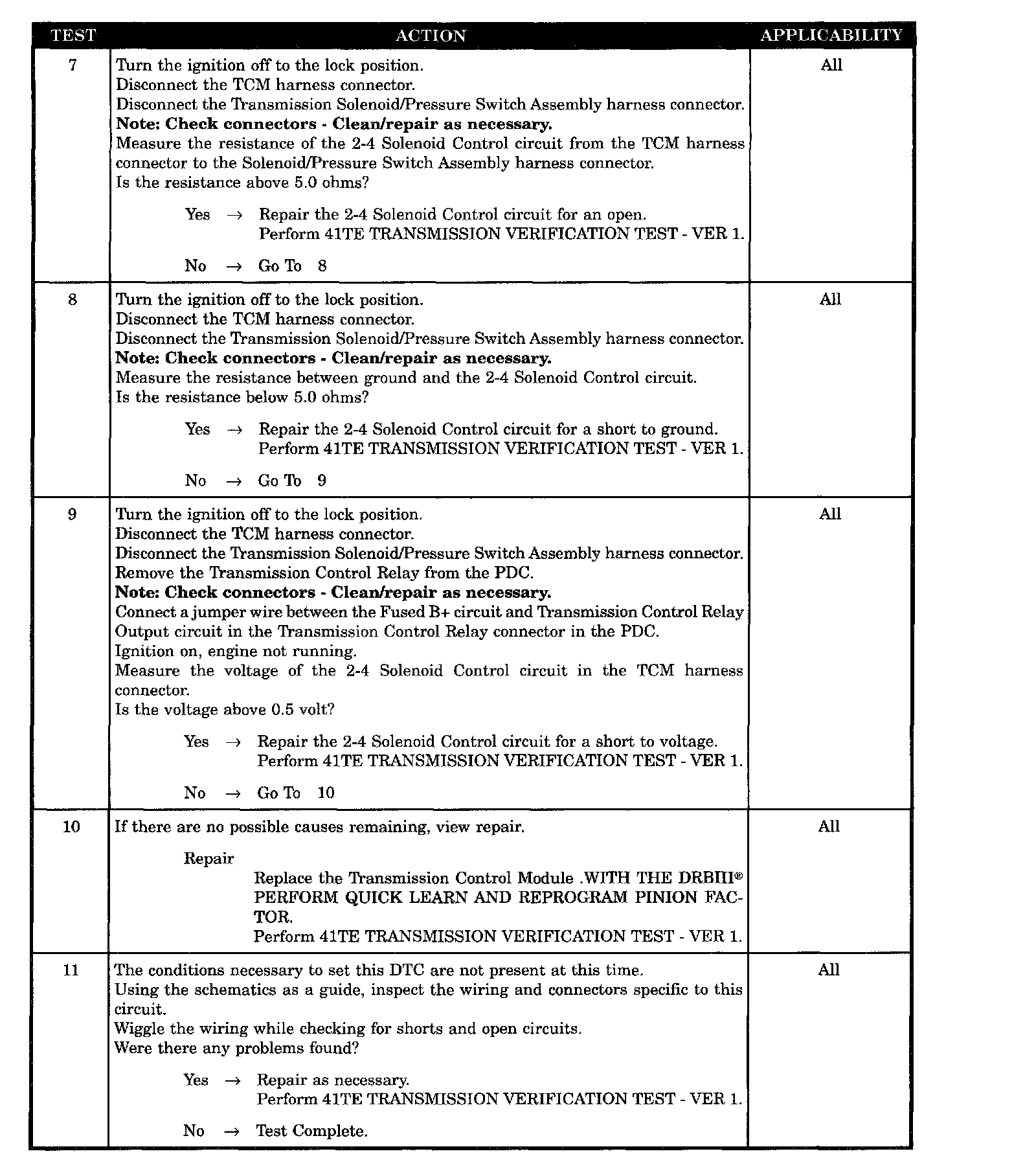

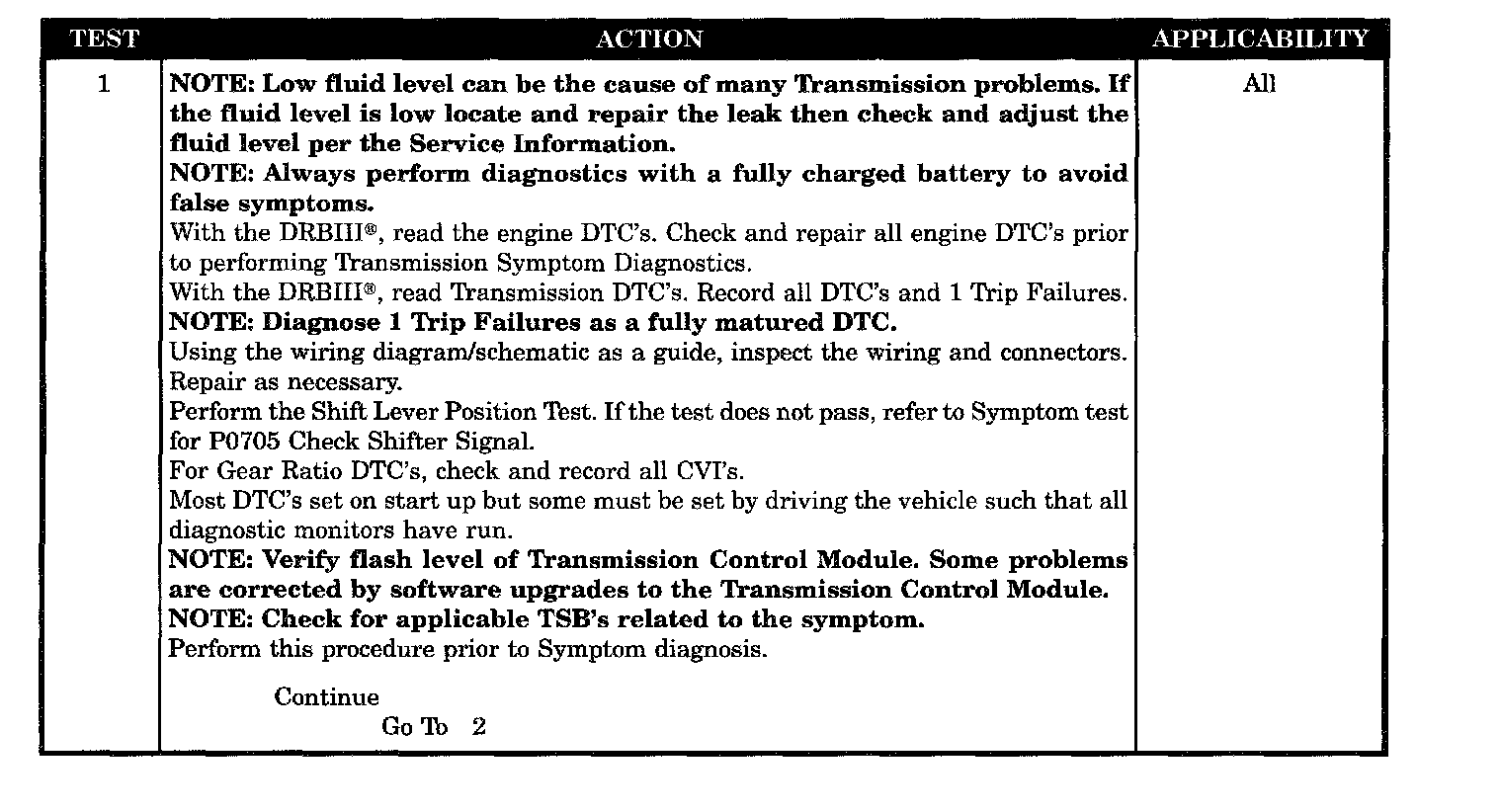

POSSIBLE CAUSES:
RELATED RELAY DTC'S PRESENT
INTERMITTENT WIRING AND CONNECTORS
TRANSMISSION CONTROL RELAY OUTPUT CIRCUIT OPEN
2-4 SOLENOID CONTROL CIRCUIT OPEN
2-4 SOLENOID CONTROL CIRCUIT SHORT TO GROUND
2-4 SOLENOID CONTROL CIRCUIT SHORT TO VOLTAGE
2-4 SOLENOID
TCM - 2-4 SOLENOID
