Right SIACM Curtain Squib Shorted to Ground (Active)

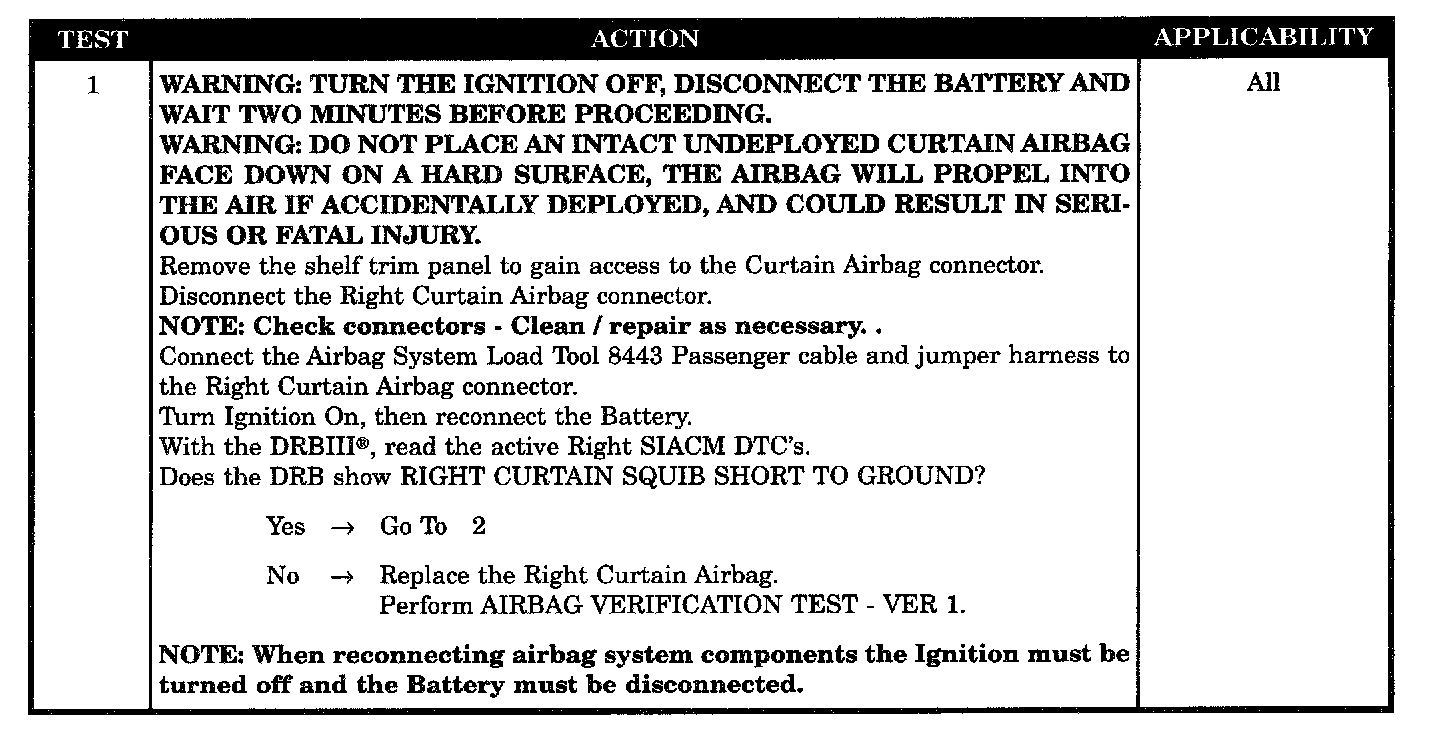

Test 1:

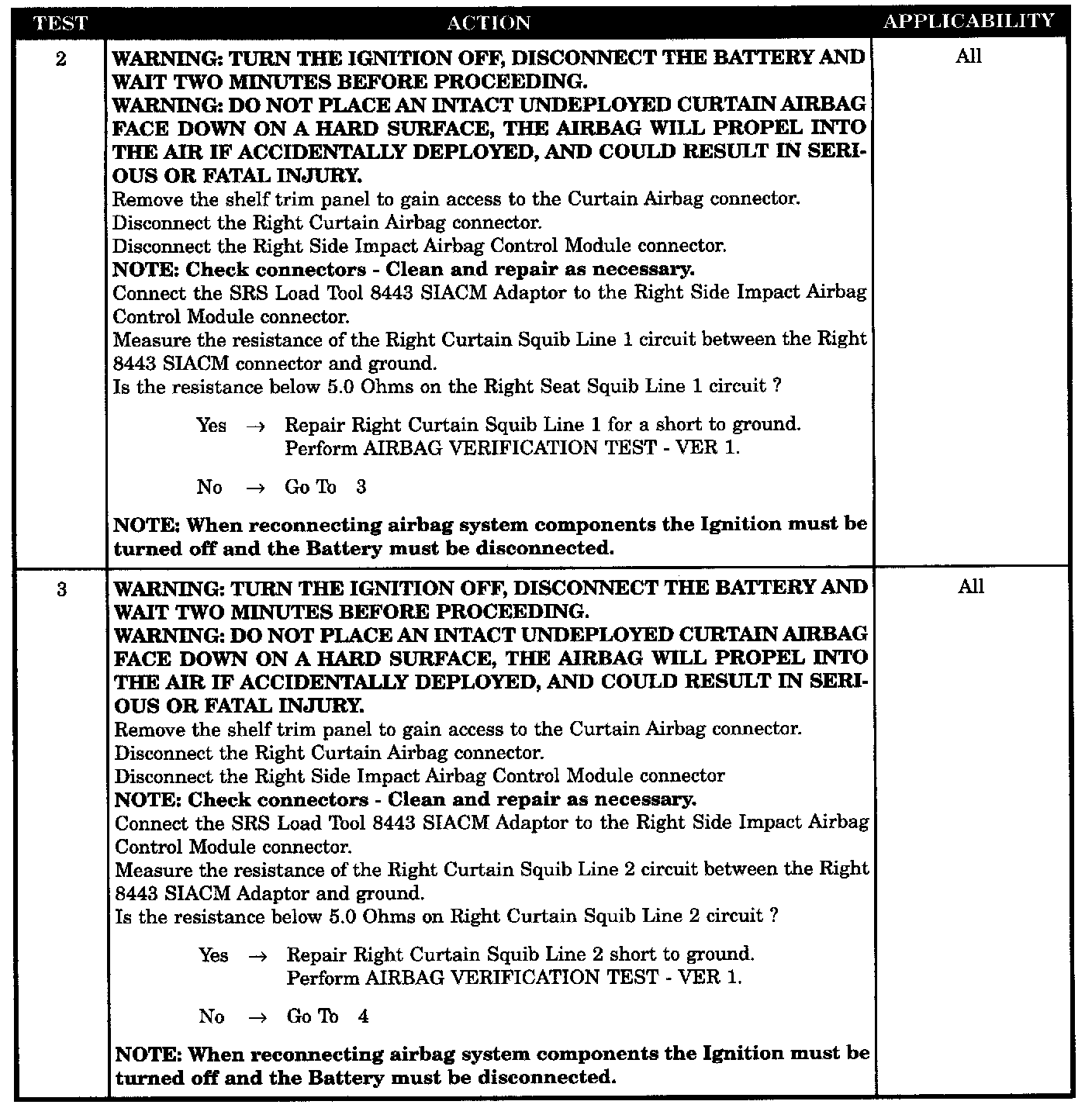

Tests 2 - 3:

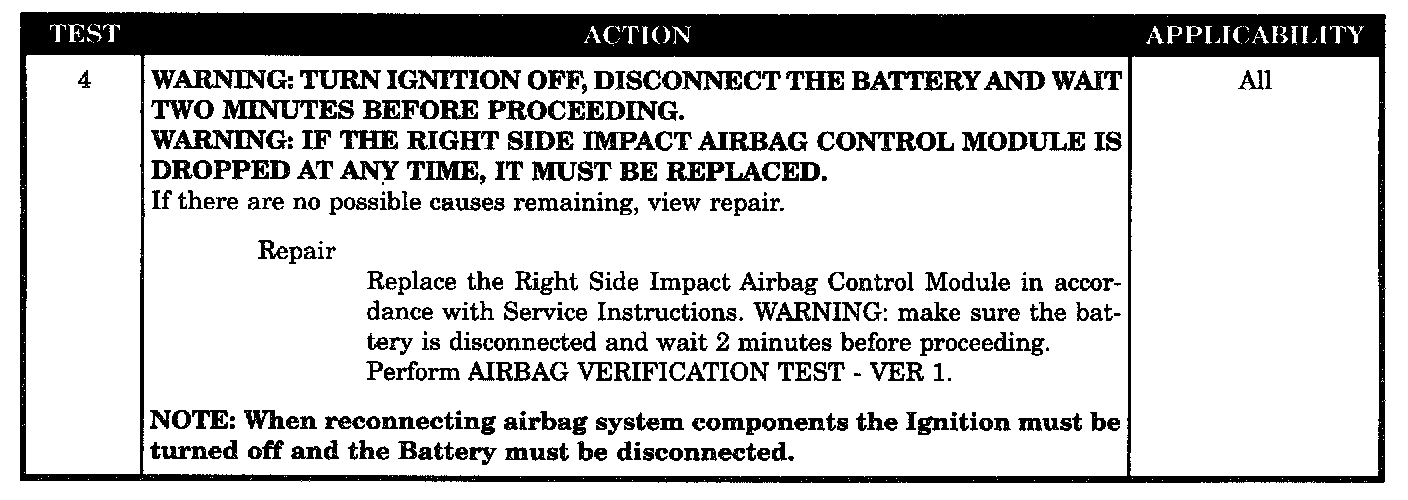

Test 4:

SYMPTOM
RIGHT SIACM, CURTAIN SQUIB SHORT TO GROUND - ACTIVE

WHEN MONITORED
When the ignition is ON, the Right SIACM monitors the resistance of the Right Curtain Squib circuits.

SET CONDITION
The Right SIACM has detected a short to ground in the Right Curtain Squib circuits.

POSSIBLE CAUSES
- Right curtain airbag circuit short to ground
- Right curtain squib line 1 short to ground
- Right curtain squib line 2 short to ground
- RSIACM, Right curtain squib circuit short to ground
