Right SIACM Curtain Squib Shorted to Battery (Stored)

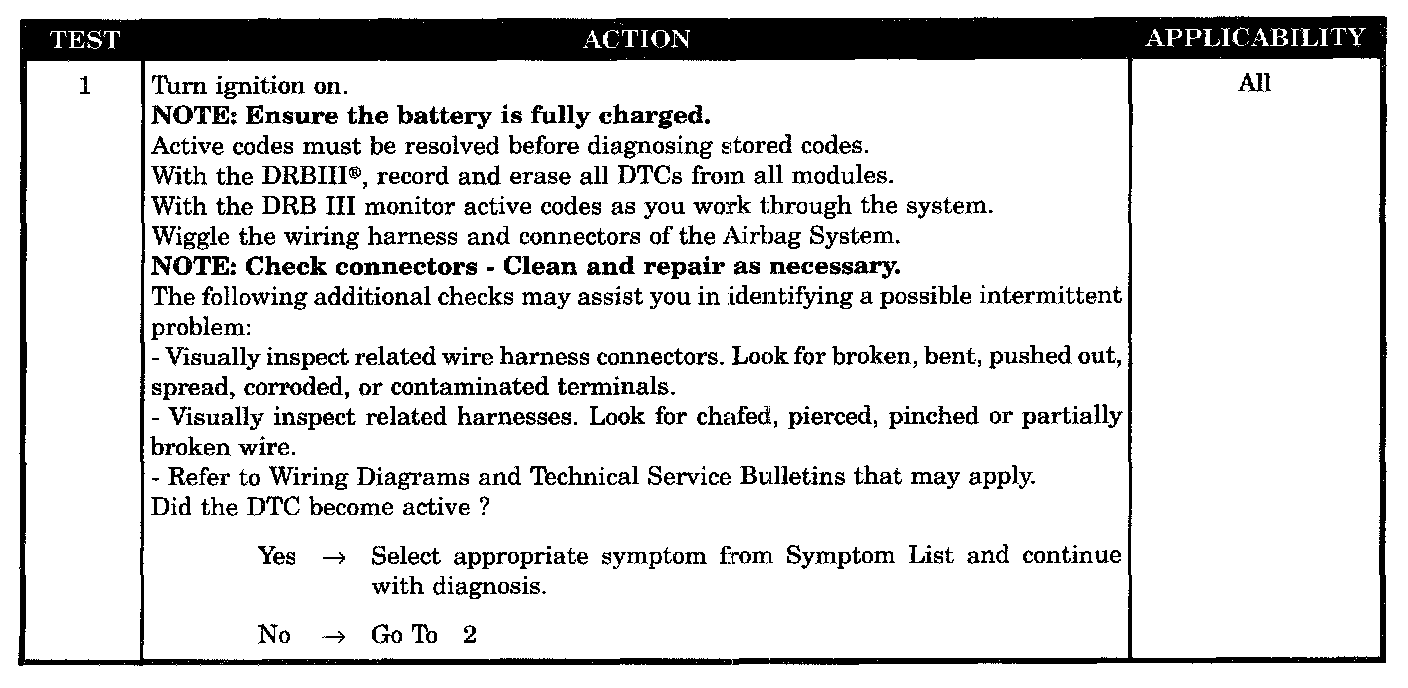

Test 1:

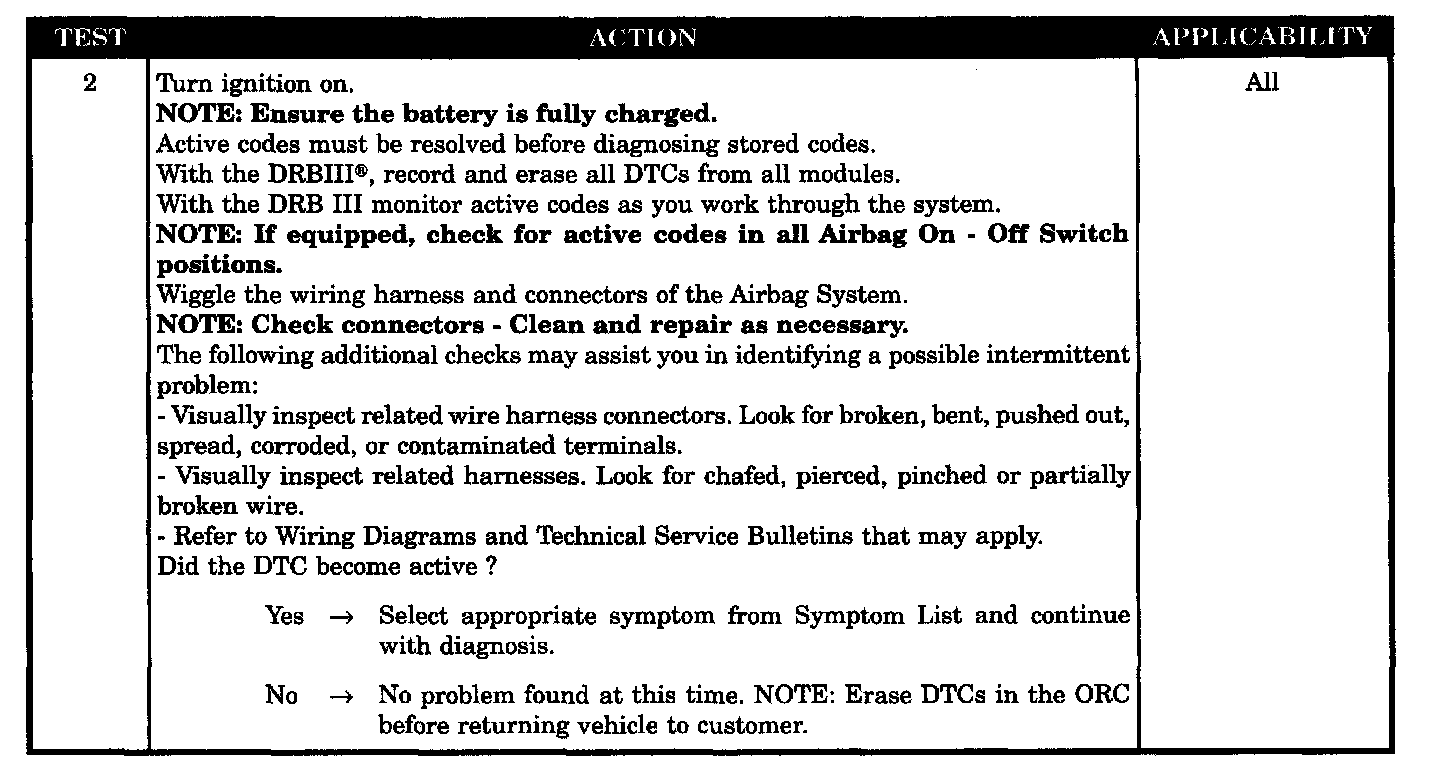

Test 2:

SYMPTOM
RIGHT SIACM, CURTAIN SQUIB SHORT TO BATTERY - STORED

TEST NOTE
This symptom is diagnosed using the test ORC, INTERROGATE RIGHT SIACM - STORED.

WHEN MONITORED
When the ignition is ON, the Right SIACM monitors the voltage of the Right Curtain Squib circuits.

SET CONDITION
The Right SIACM has detected high voltage on the Right Curtain Squib circuits.

POSSIBLE CAUSES
- Checking for active AOSIM DTCS
- Checking for active right SIACM DTCS
- Stored code present
