Right SIACM Curtain Squib Shorted to Battery (Active)

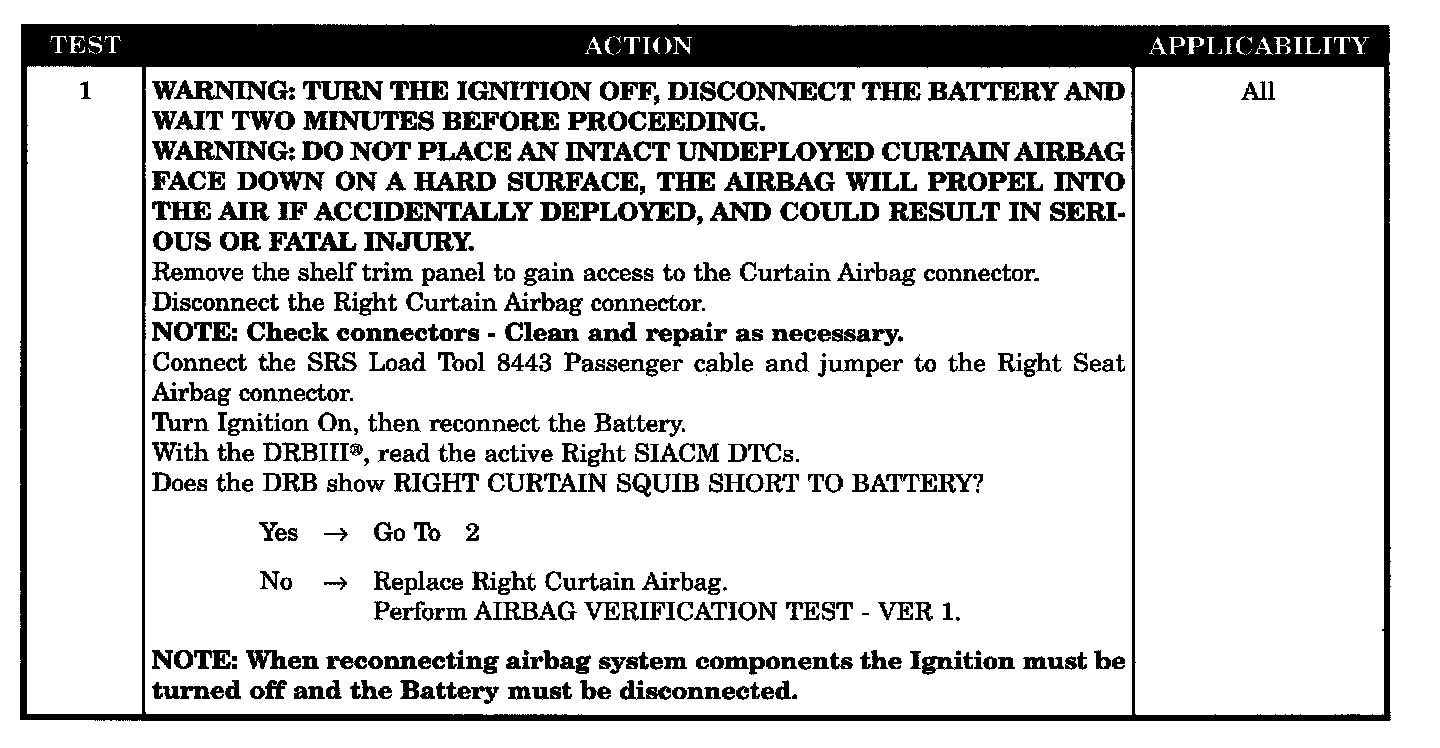

Test 1:

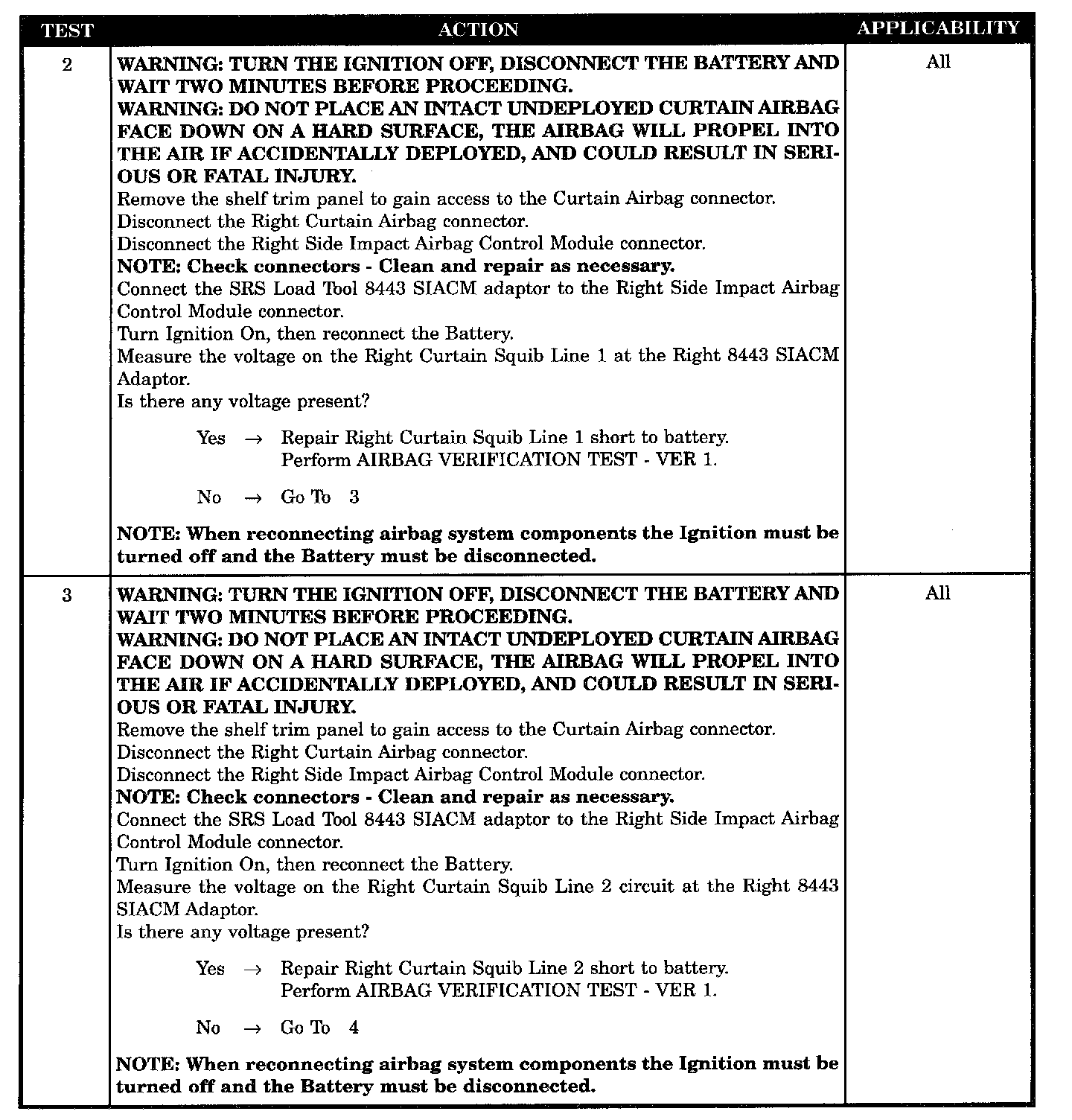

Tests 2 - 3:

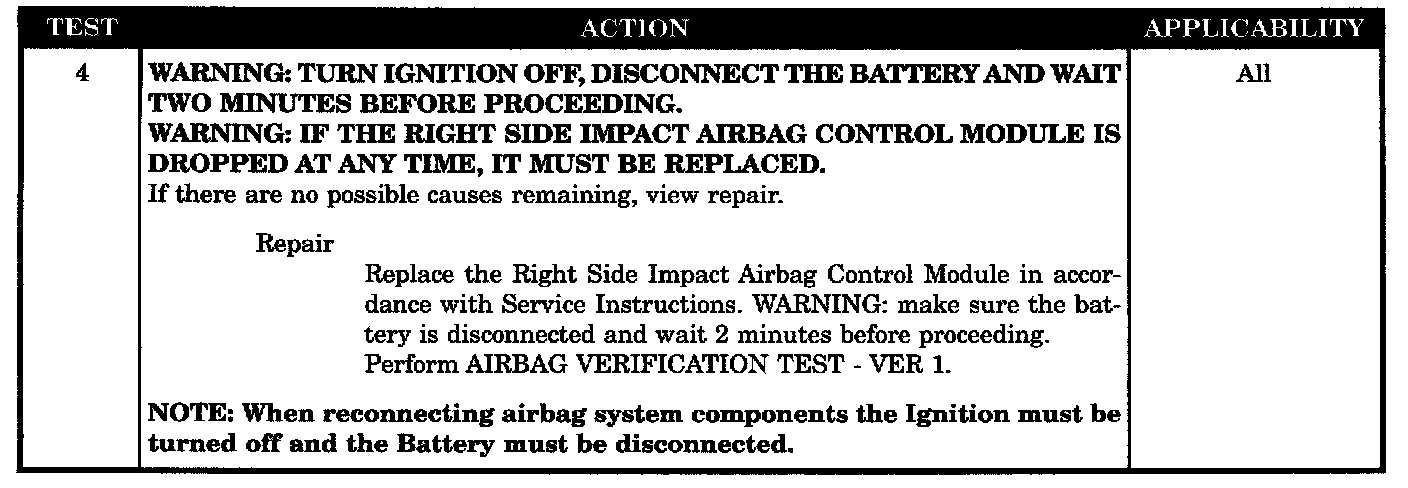

Test 4:

SYMPTOM
RIGHT SIACM, CURTAIN SQUIB SHORT TO BATTERY - ACTIVE

WHEN MONITORED
When the ignition is ON, the Right SIACM monitors the voltage of the Right Curtain Squib circuits.

SET CONDITION
The Right SIACM has detected high voltage on the Right Curtain Squib Line circuits.

POSSIBLE CAUSES
- Right curtain airbag circuit short to battery
- Right curtain squib line 1 short to battery
- Right curtain squib line 2 short to battery
- RSIACM, Right curtain squib circuit short to battery
