Right SIACM Curtain Squib Circuit Shorted (Active)

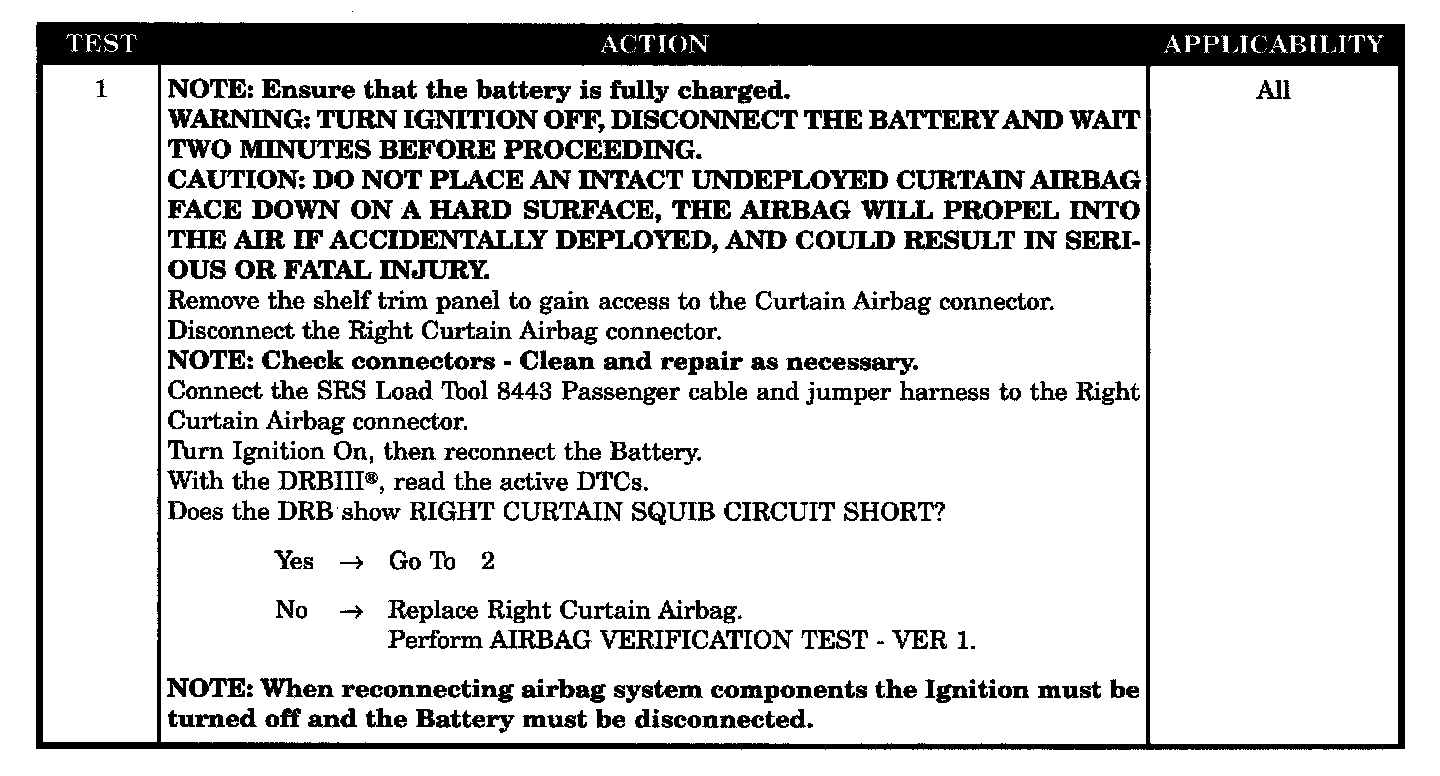

Test 1:

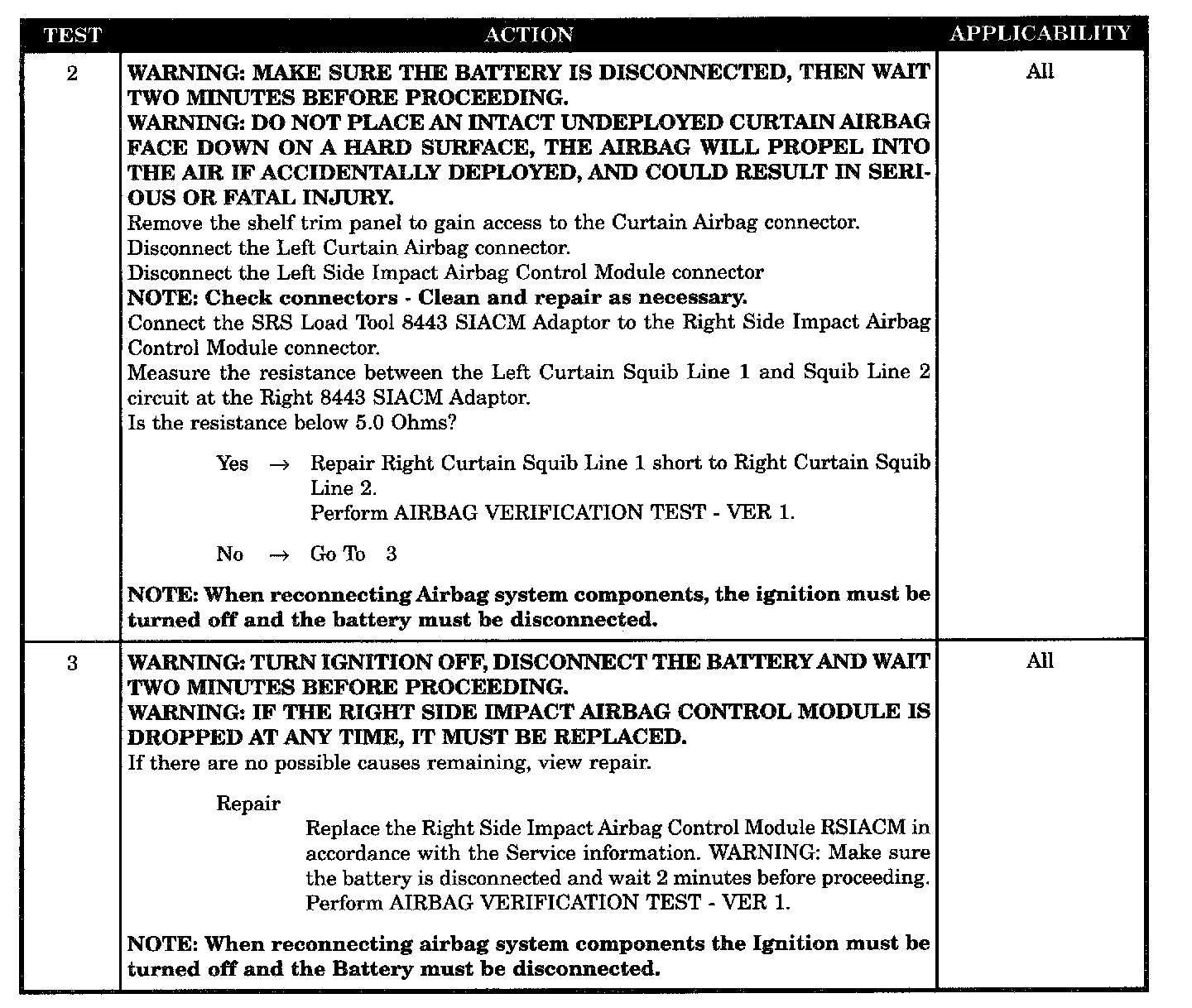

Tests 2 - 3:

SYMPTOM
RIGHT SIACM, CURTAIN SQUIB CIRCUIT SHORT - ACTIVE

WHEN MONITORED
When the ignition is ON, the Right SIACM monitors the resistance of the Right Curtain Squib circuits.

SET CONDITION
The Right SIACM has detected that the Right Curtain Squib circuits are shorted together.

POSSIBLE CAUSES
- Right curtain airbag circuit short
- Right curtain squib line 1 short to line 2
- RSIACM, Right curtain squib circuits shorted
