Right SIACM Curtain Squib Circuit Open (Active)

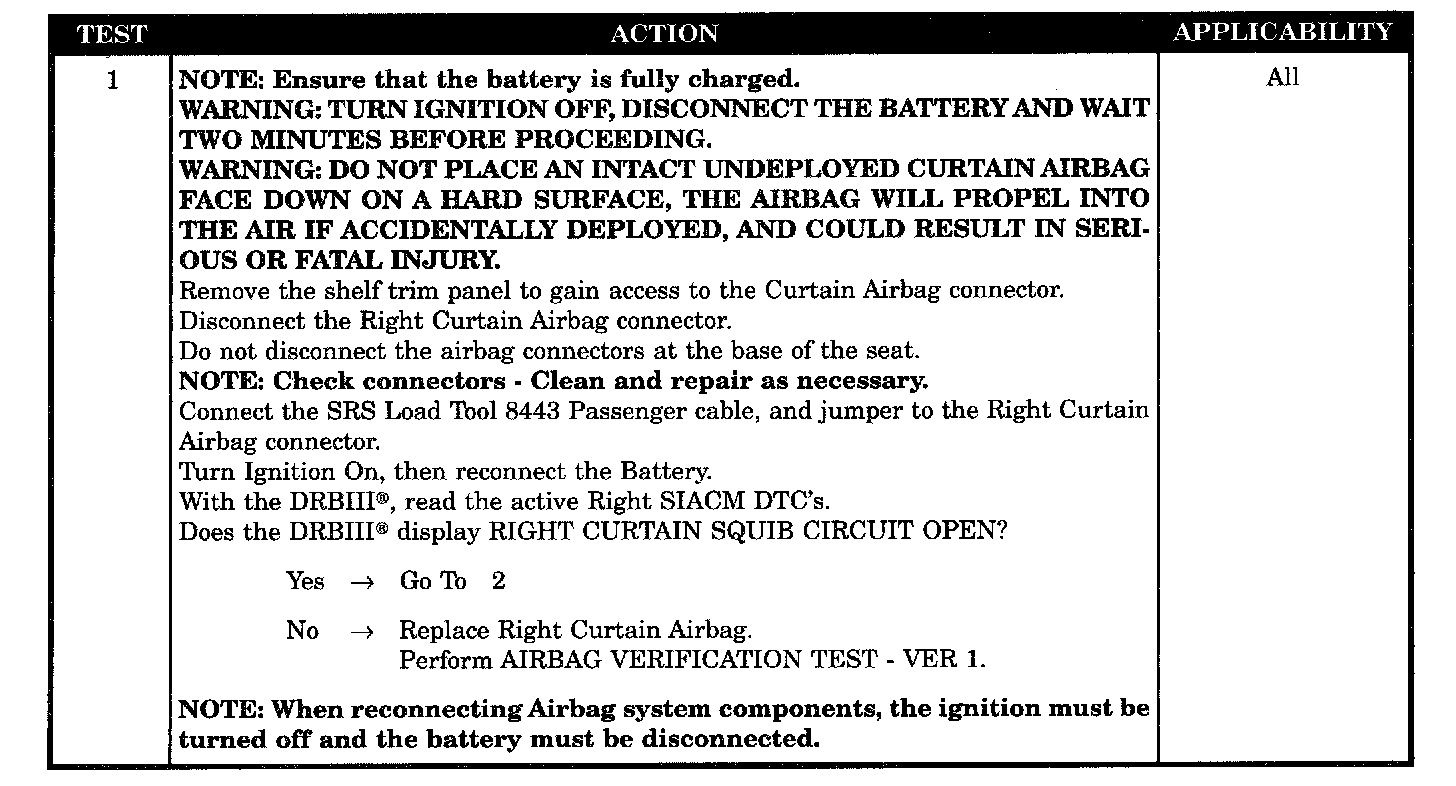

Test 1:

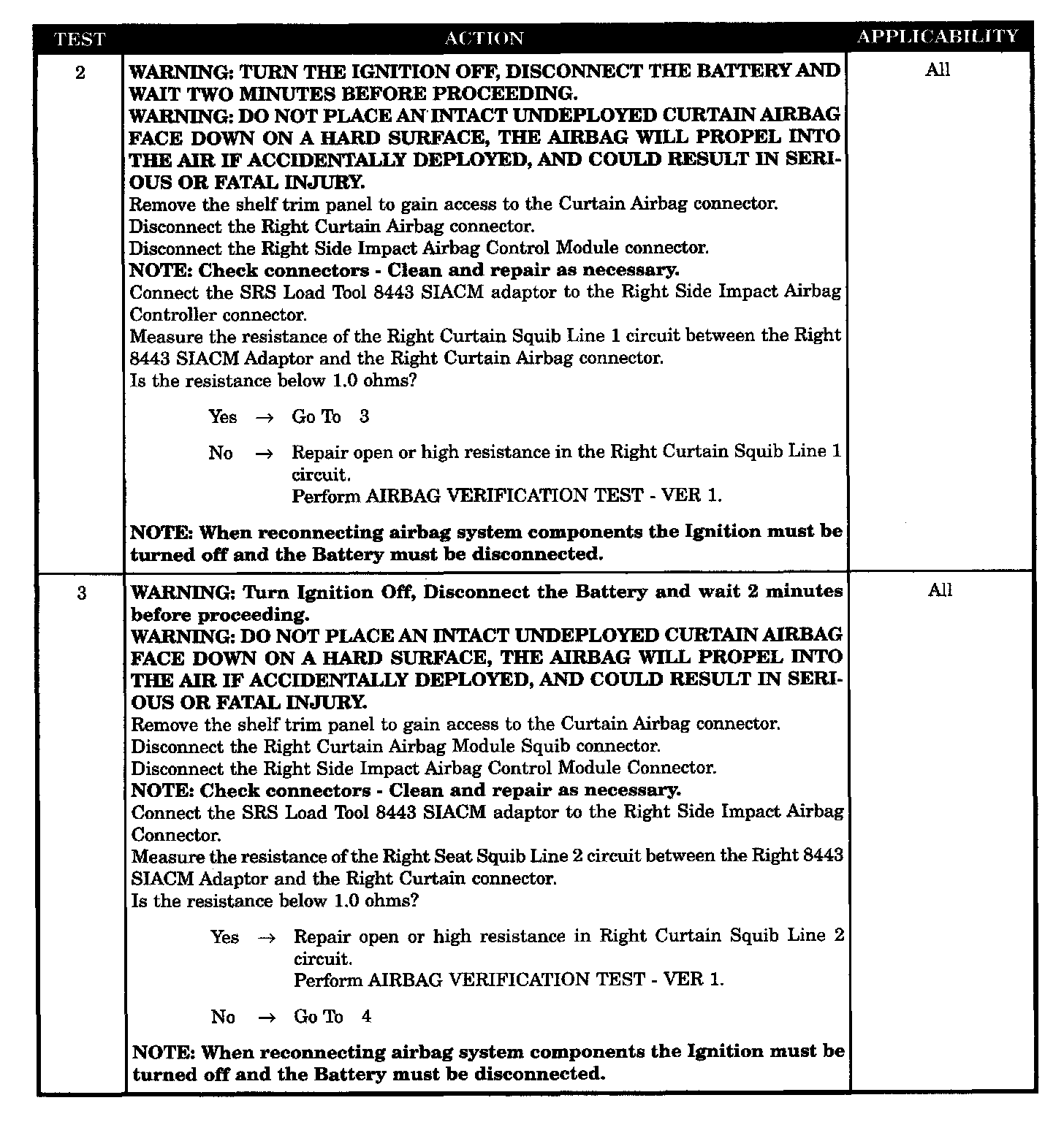

Tests 2 - 3:

Test 4:

SYMPTOM
RIGHT SIACM, CURTAIN SQUIB CIRCUIT OPEN - ACTIVE

WHEN MONITORED
When the ignition is ON, the Right SIACM monitors the resistance of the Right Curtain Squib circuits.

SET CONDITION
The Right SIACM has detected an open circuit or high resistance on the Right Curtain Squib circuits.

POSSIBLE CAUSES
- Right curtain airbag circuit open
- Right curtain squib line 1 circuit open
- Right curtain squib line 2 circuit open
- RSIACM, right curtain squib circuit open
