ORC Vehicle Body Style Unknown (Active)

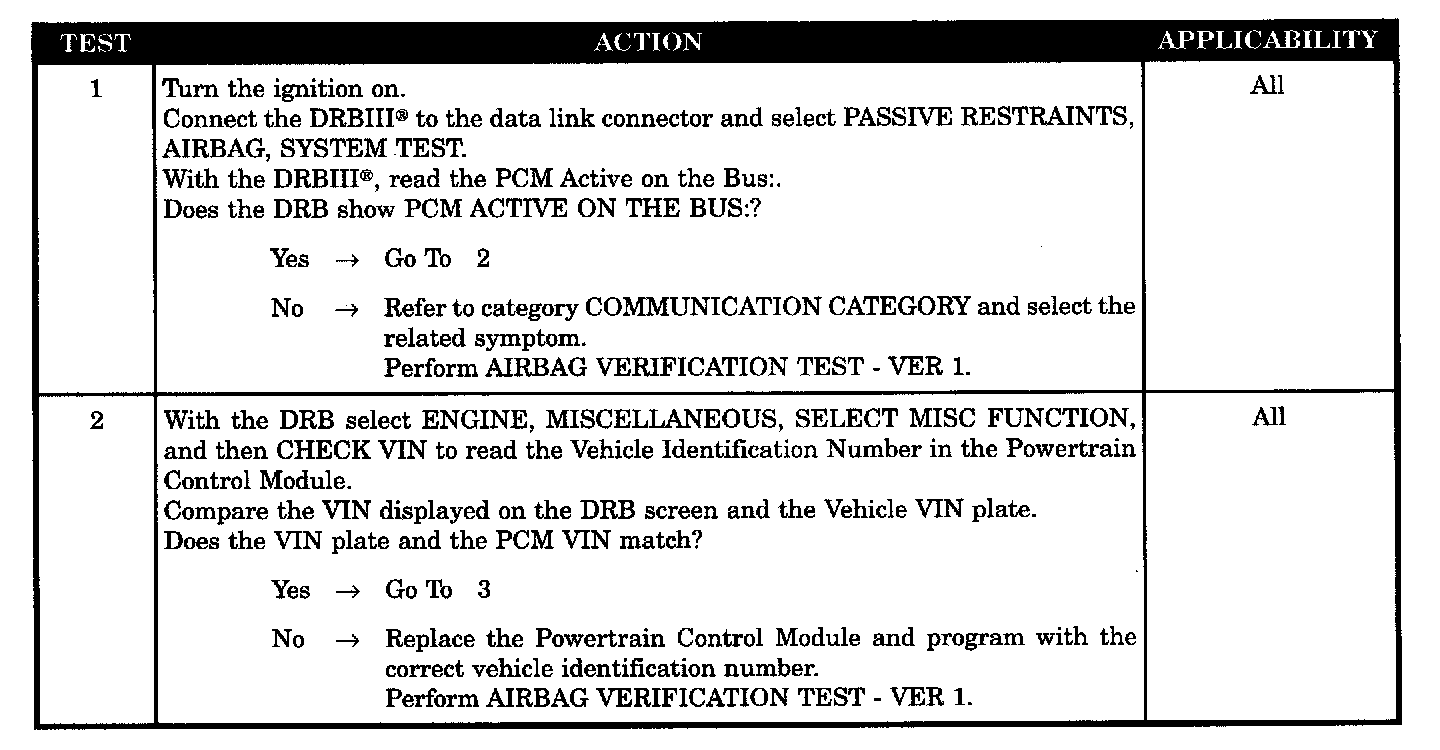

Tests 1 - 2:

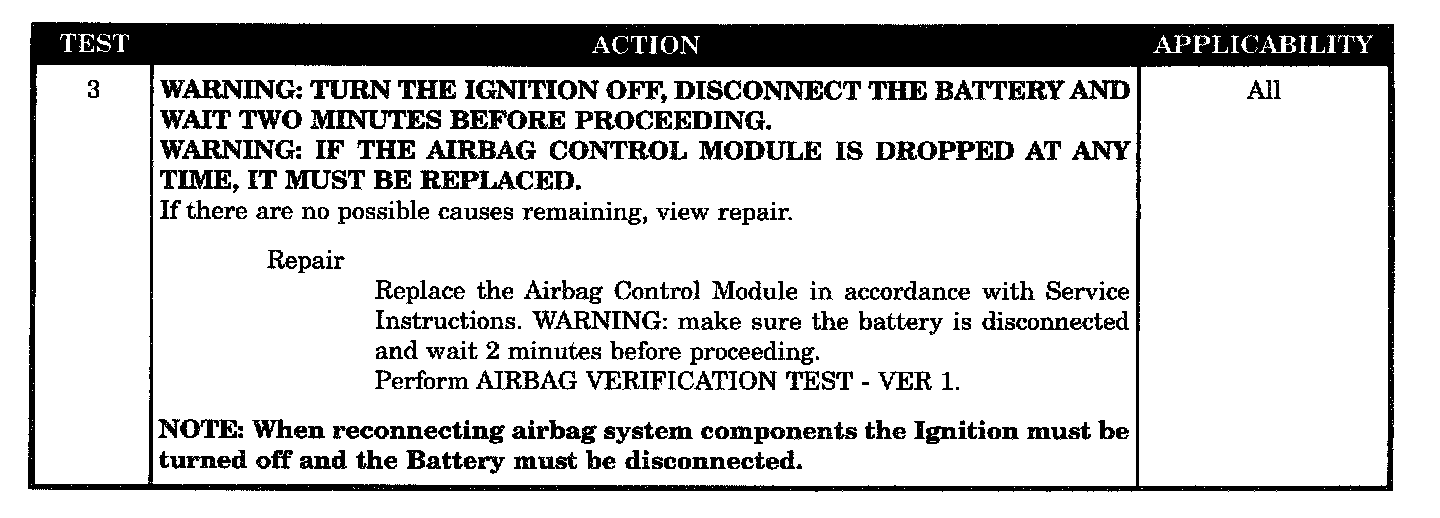

Test 3:

SYMPTOM
ORC, VEHICLE BODY STYLE UNKNOWN - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the PCI Bus for the VIN message containing the vehicle body style from the Powertrain Control Module. The PCM transmits the VIN message every 14 seconds.

SET CONDITION
With ignition ON, If the ORC does not receive the 2 consecutive matching (vehicle Body Style) VIN messages on the bus the code will set.

POSSIBLE CAUSES
- PCM, PCI Communication failure
- Vehicle body style unknown
- ORC, Vehicle body style unknown
