ORC Passenger Squib 2 Shorted to Ground (Active)

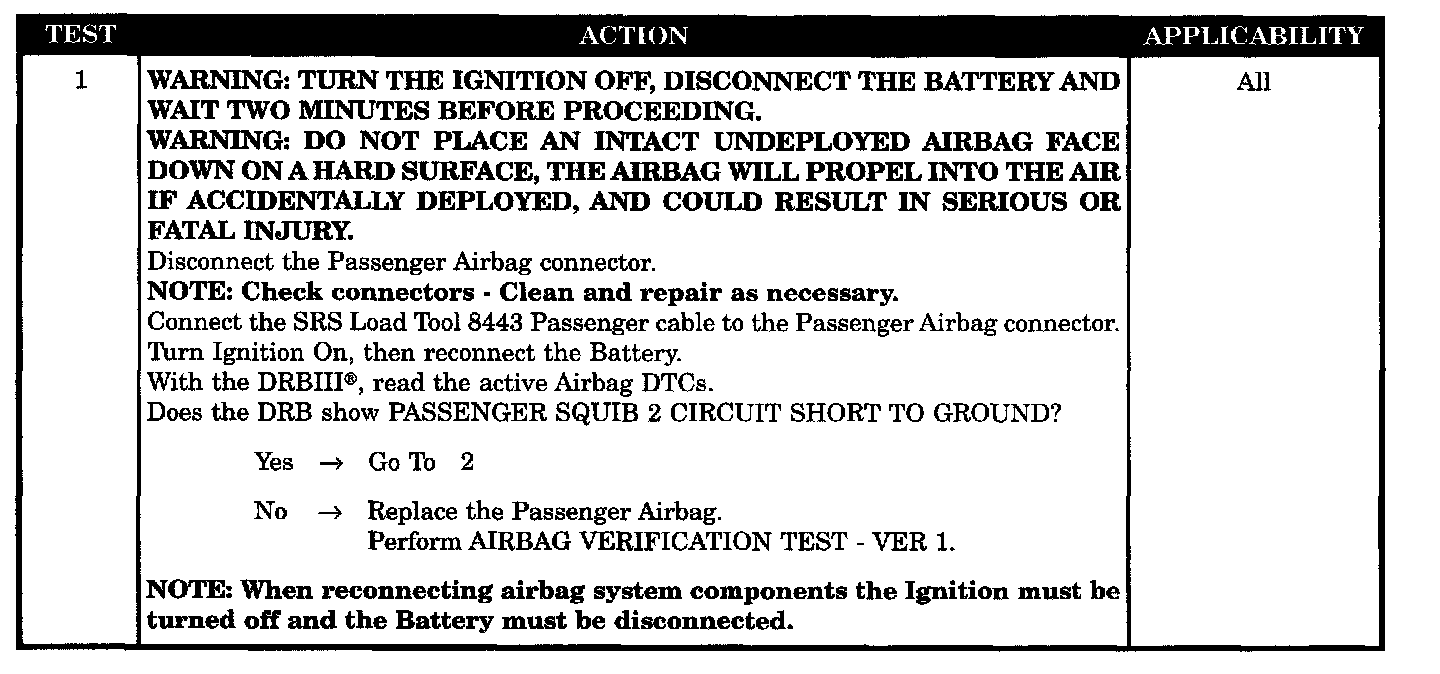

Test 1:

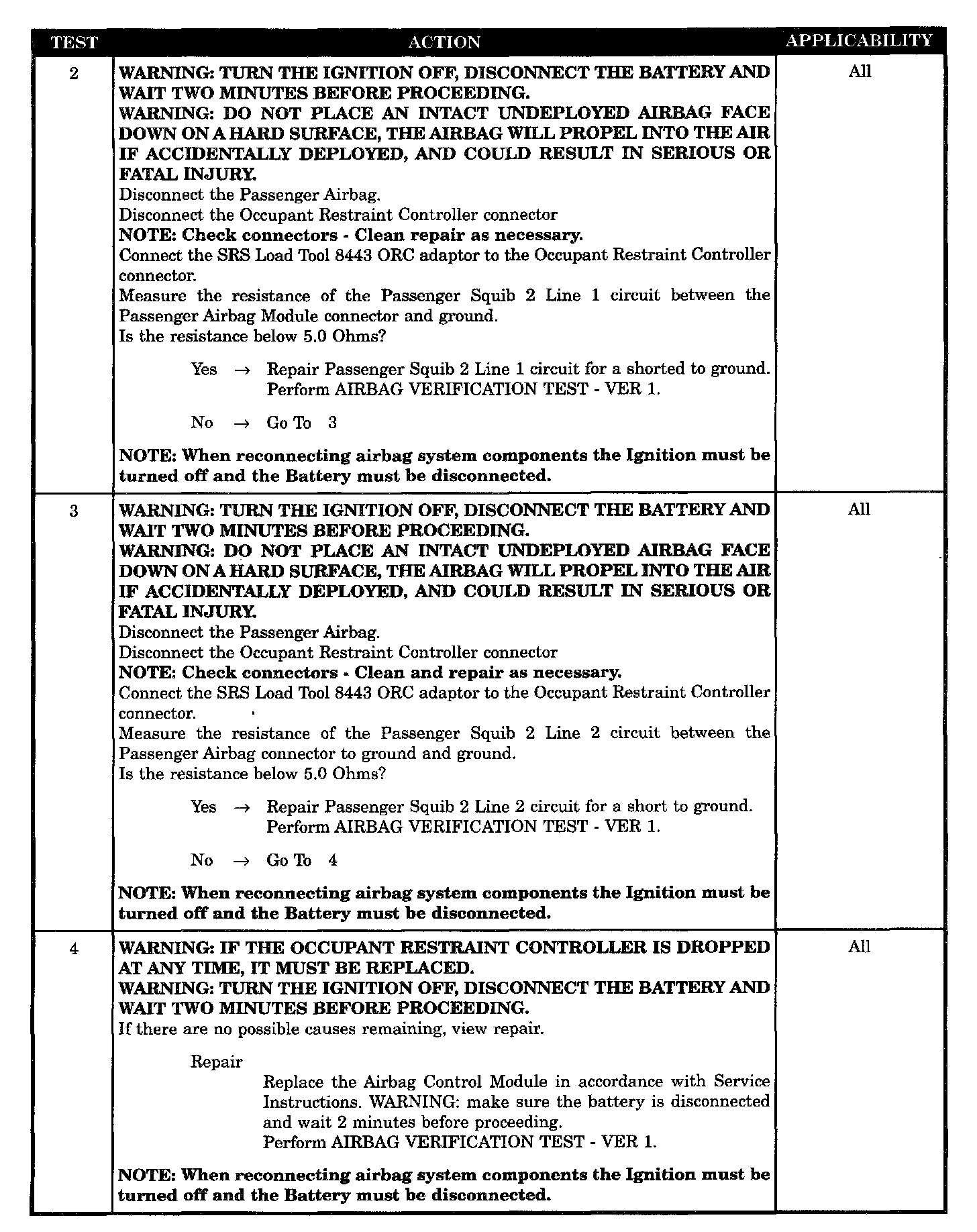

Tests 2 - 4:

SYMPTOM
ORC, PASSENGER SQUIB 2 SHORT TO GROUND - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Passenger Squib 2 circuits for low resistance.

SET CONDITION
The ORC has detected a short to ground in the Passenger Squib 2 circuits

POSSIBLE CAUSES
- Passenger airbag circuit short to ground
- Passenger squib 2 line 1 short to ground
- Passenger squib 2 line 2 short to ground
- ORC, Passenger squib 2 circuit short to ground
