ORC Passenger Squib 2 Circuit Shorted (Active)

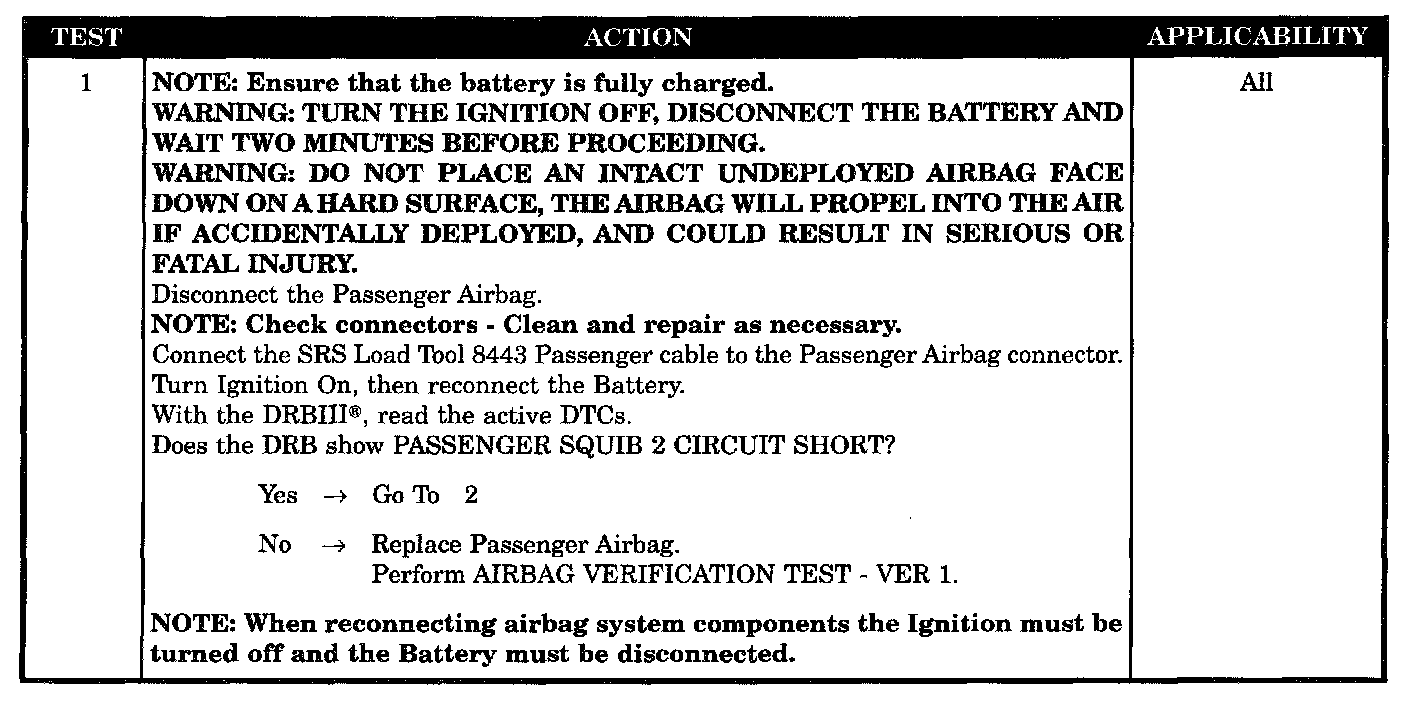

Test 1:

Tests 2 - 3:

SYMPTOM
ORC, PASSENGER SQUIB 2 CIRCUIT SHORT - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Passenger Squib 2 circuits.

SET CONDITION
The ORC has detected low resistance in the Passenger Squib 2 circuits.

POSSIBLE CAUSES
- Passenger airbag circuit short
- Passenger squib 1 line 1 short to line 2
- ORC, Passenger squib 2 circuit short
