ORC Passenger Squib 1 Circuit Shorted (Stored)

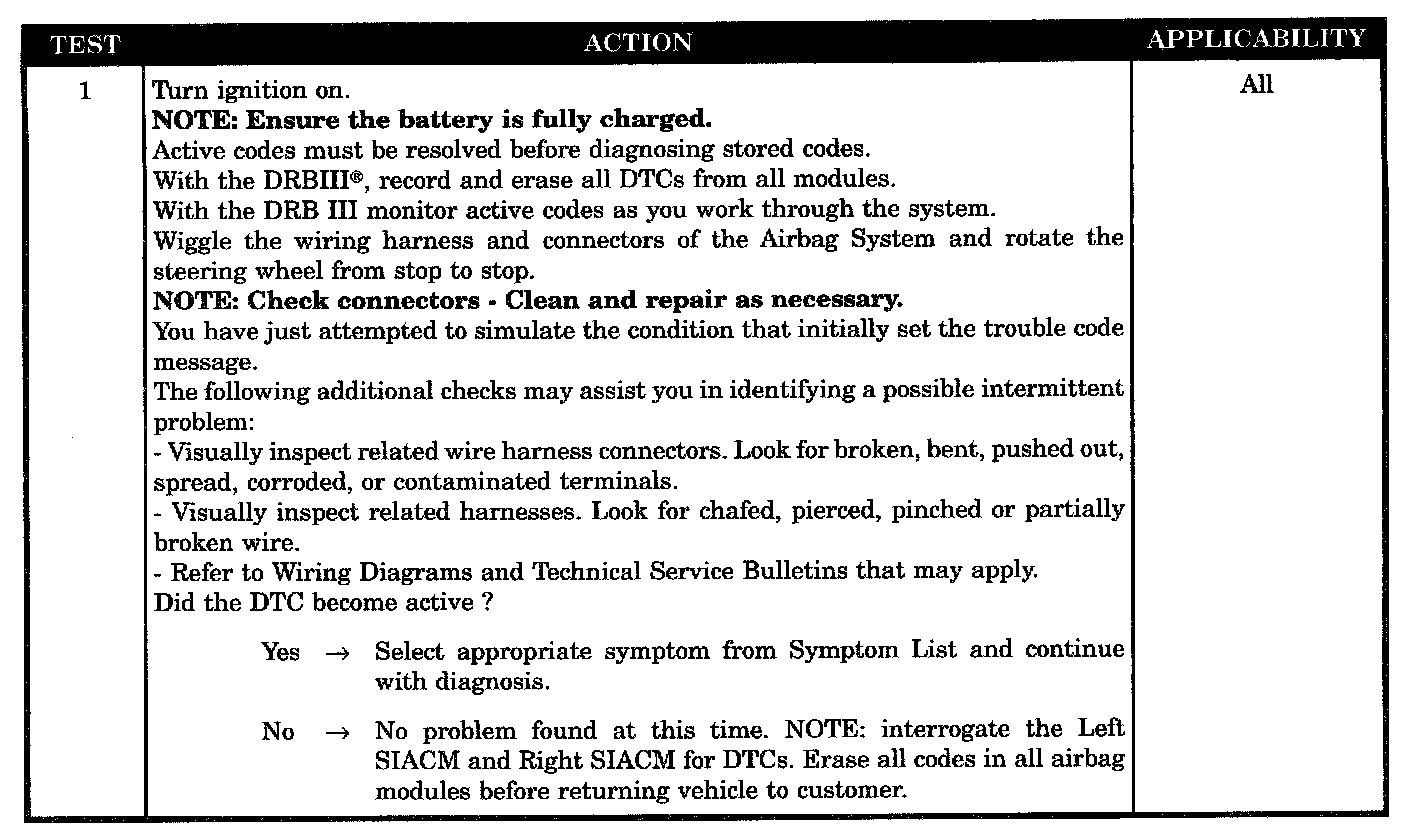

Test 1:

SYMPTOM
ORC, PASSENGER SQUIB 1 CIRCUIT SHORT - STORED

TEST NOTE
This symptom is diagnosed using the test ORC, CALIBRATION MISMATCH - STORED.

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Passenger Squib 1 circuits.

SET CONDITION
The ORC has detected low resistance in the Passenger Squib 1 circuits.

POSSIBLE CAUSES
- Checking for active ORC DTC's
- Stored code present
