ORC Passenger Squib 1 Circuit Shorted (Active)

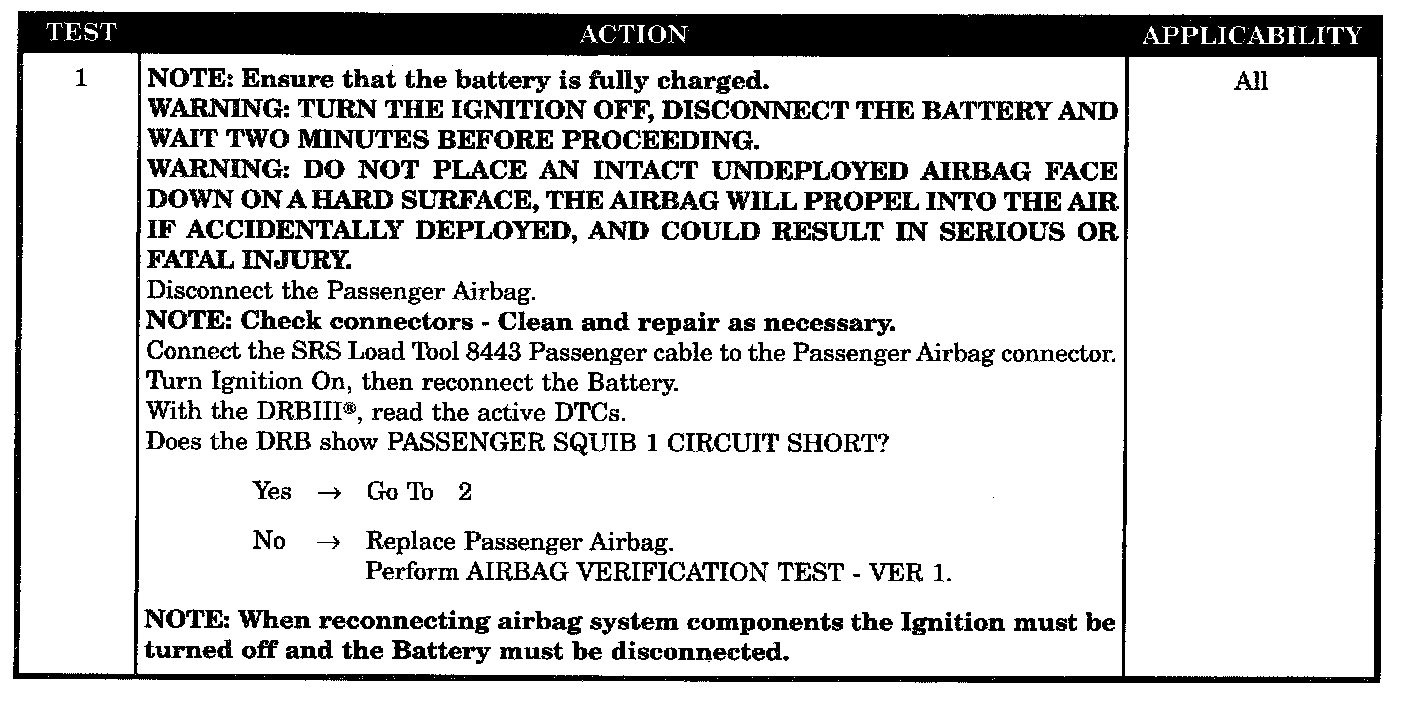

Test 1:

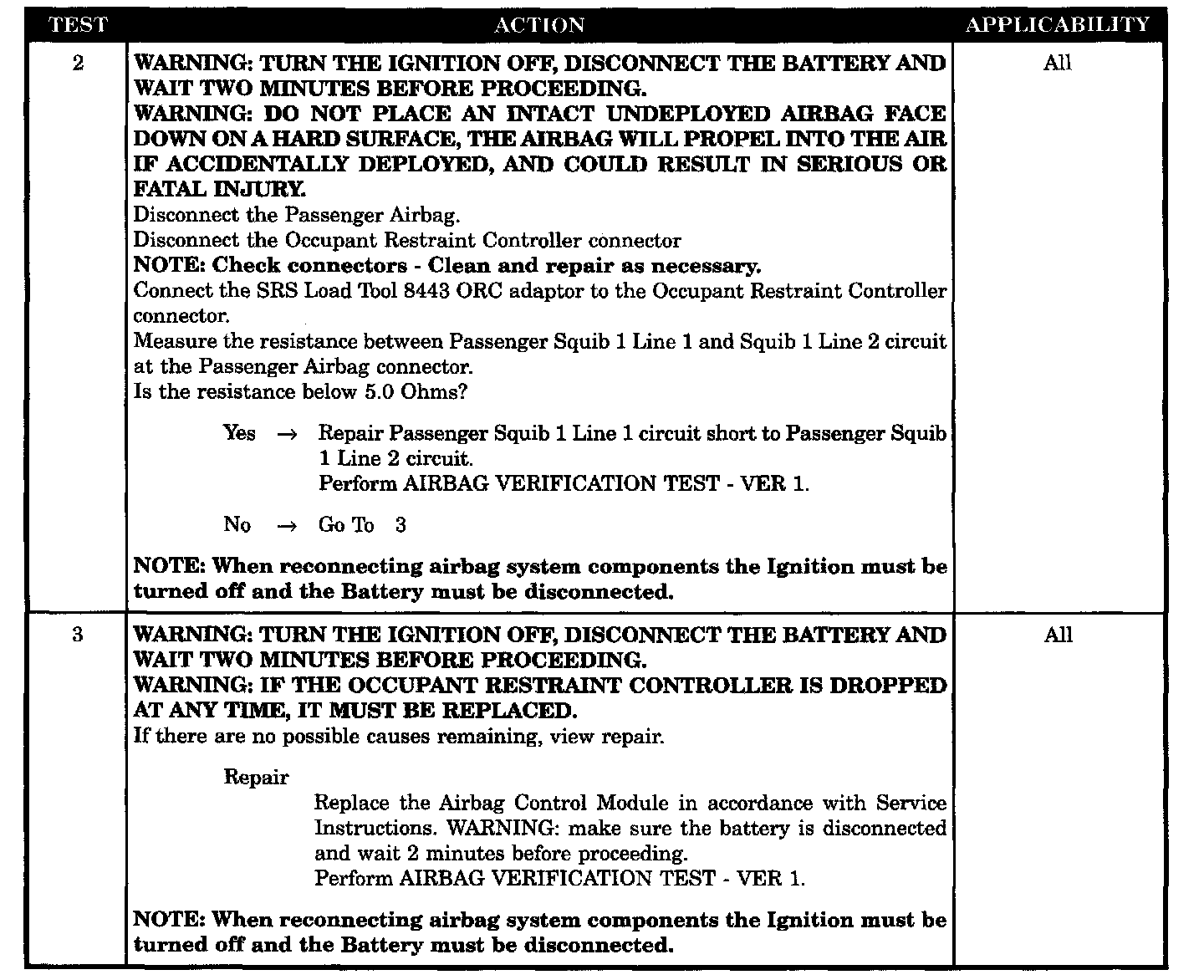

Tests 2 - 3:

SYMPTOM
ORC, PASSENGER SQUIB 1 CIRCUIT SHORT - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Passenger Squib 1 circuits.

SET CONDITION
The ORC has detected low resistance in the Passenger Squib 1 circuits.

POSSIBLE CAUSES
- Passenger airbag circuit short
- Passenger squib 1 line 1 short to line 2
- ORC, Passenger squib 1 circuit short
