ORC Passenger Squib 1 Circuit Open (Active)

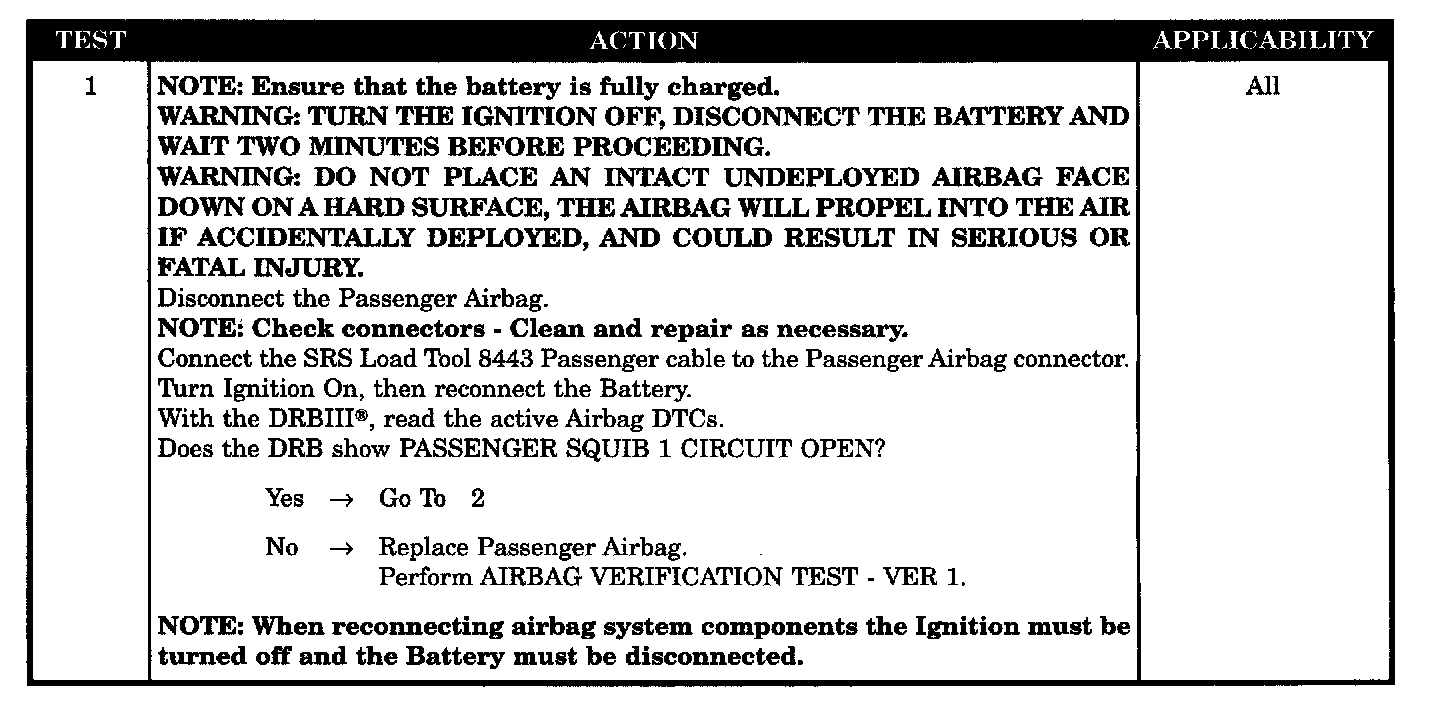

Test 1:

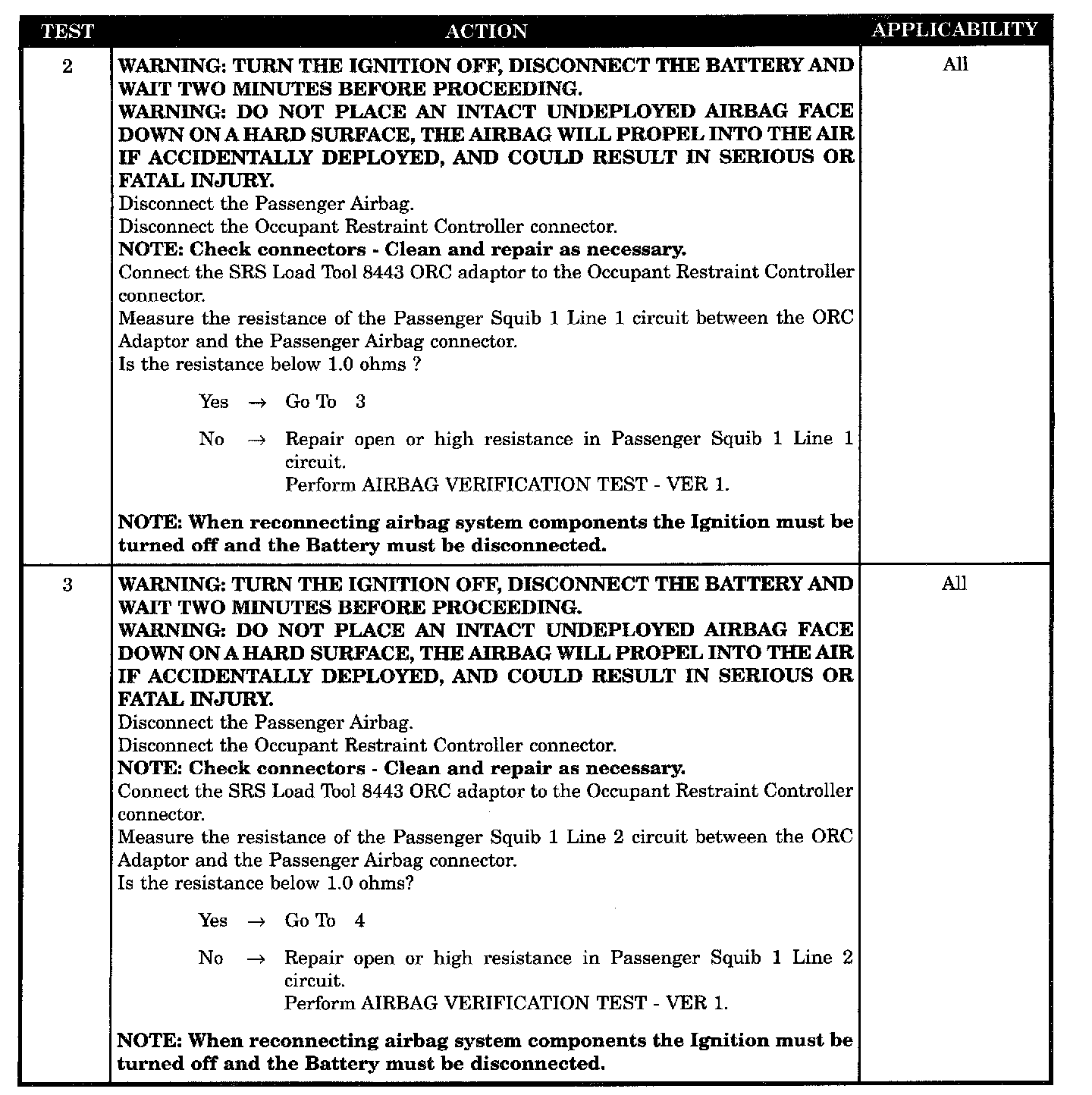

Tests 2 - 3:

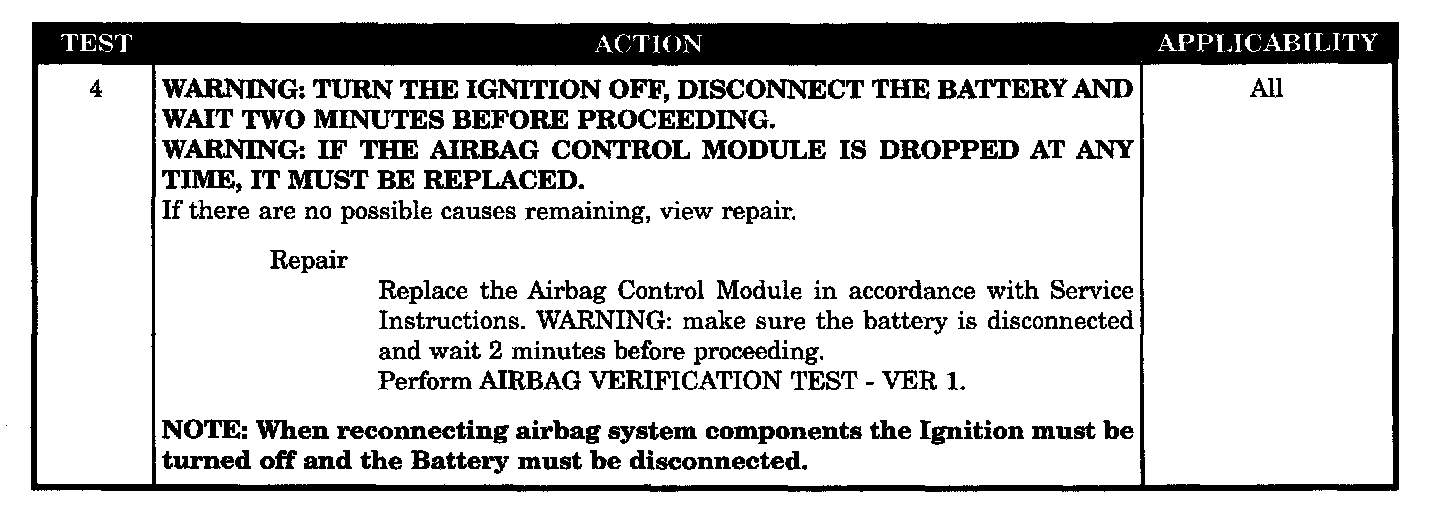

Test 4:

SYMPTOM
ORC, PASSENGER SQUIB 1 CIRCUIT OPEN - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Passenger Squib 1 circuits.

SET CONDITION
The ORC has detected an open circuit or high resistance on the Passenger Squib 1 circuits.

POSSIBLE CAUSES
- Passenger airbag circuit open
- Passenger squib 1 line 1 circuit open
- Passenger squib 1 line 2 circuit open
- ORC, Passenger squib 1 circuit open
