ORC Passenger SBT Shorted to Ground (Active)

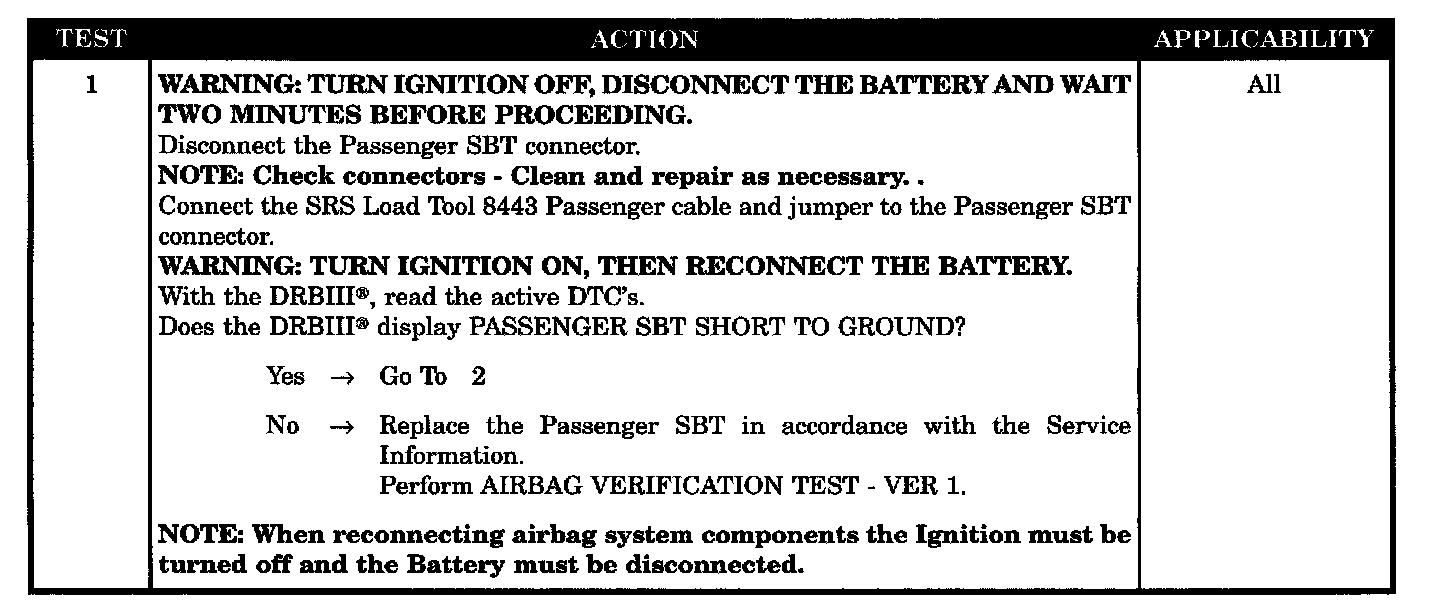

Test 1:

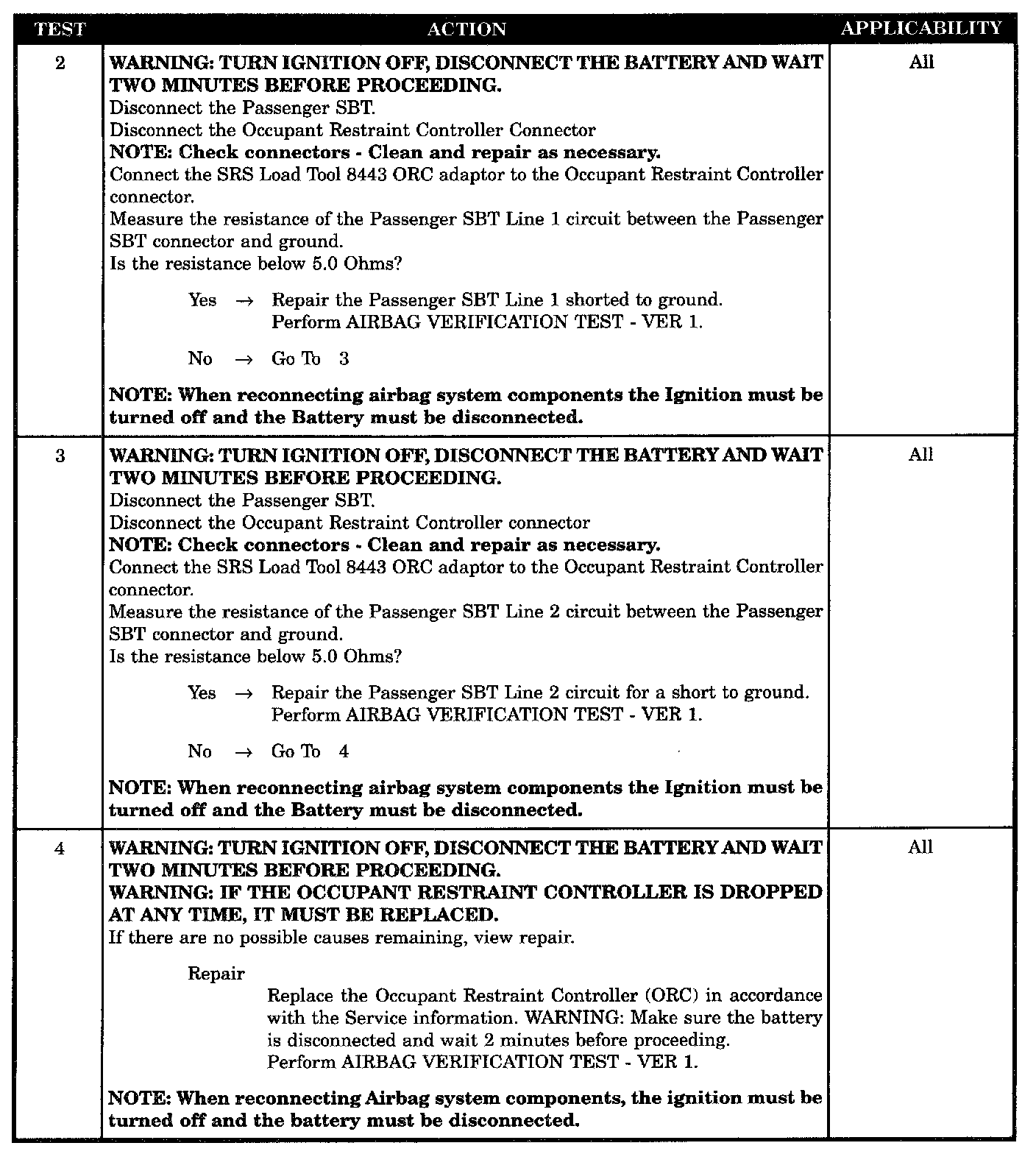

Tests 2 - 4:

SYMPTOM
ORC, PASSENGER SBT SHORT TO GROUND - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Passenger Seat Belt Tensioner circuits for low resistance.

SET CONDITION
The ORC has detected a short to ground in the Passenger Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- PAS SBT circuits short to ground
- Passenger SBT line 1 short to ground
- PAS SBT line 2 short to ground
- ORC, Passenger SBT circuits shorted to ground
