ORC Passenger SBT Shorted to Battery (Active)

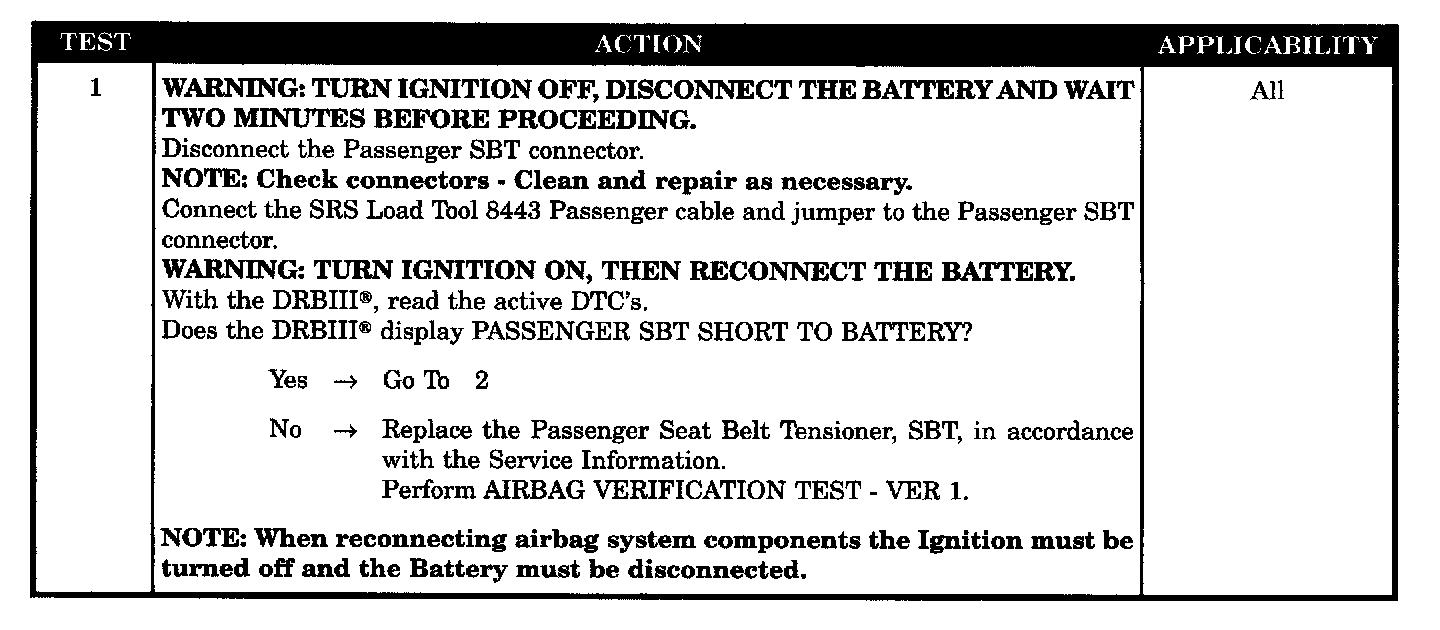

Test 1:

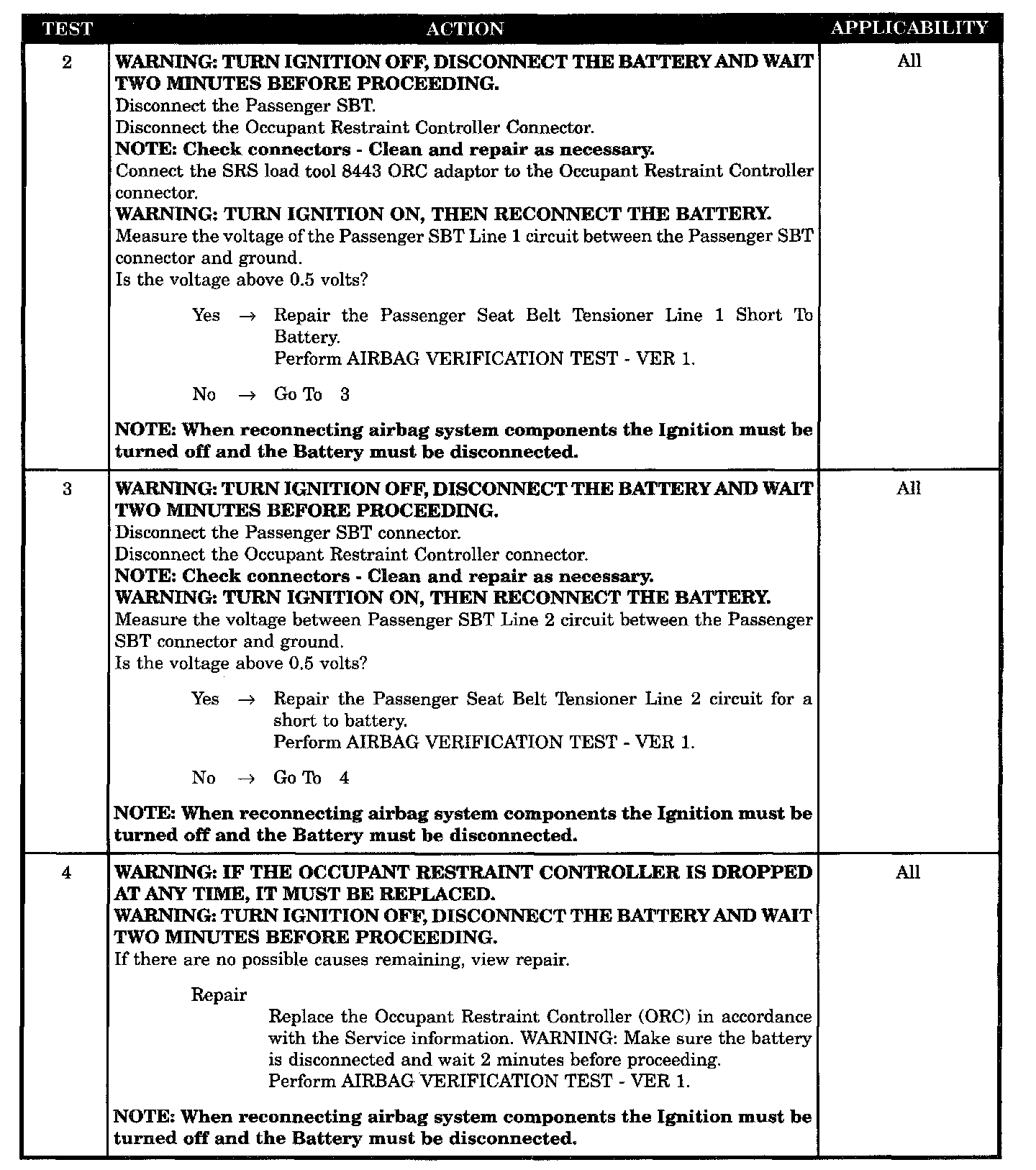

Tests 2 - 4:

SYMPTOM
ORC, PASSENGER SBT SHORT TO BATTERY - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the voltage of the Passenger Seat Belt Tensioner circuits.

SET CONDITION
The ORC has detected high voltage on the Passenger Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Passenger SBT circuits short to battery
- Passenger SBT line 1 short to battery
- Passenger SBT line 2 short to battery
- ORC, Passenger SBT circuits short to battery
