ORC Passenger SBT Circuit Shorted (Active)

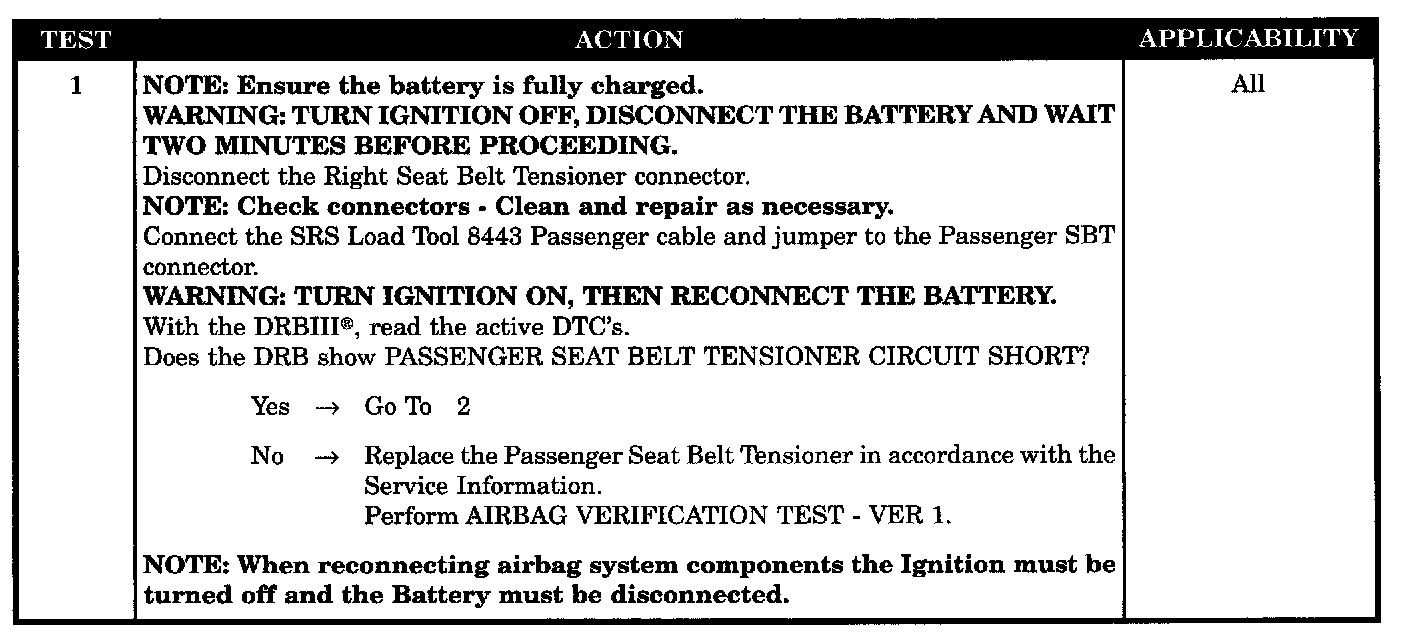

Test 1:

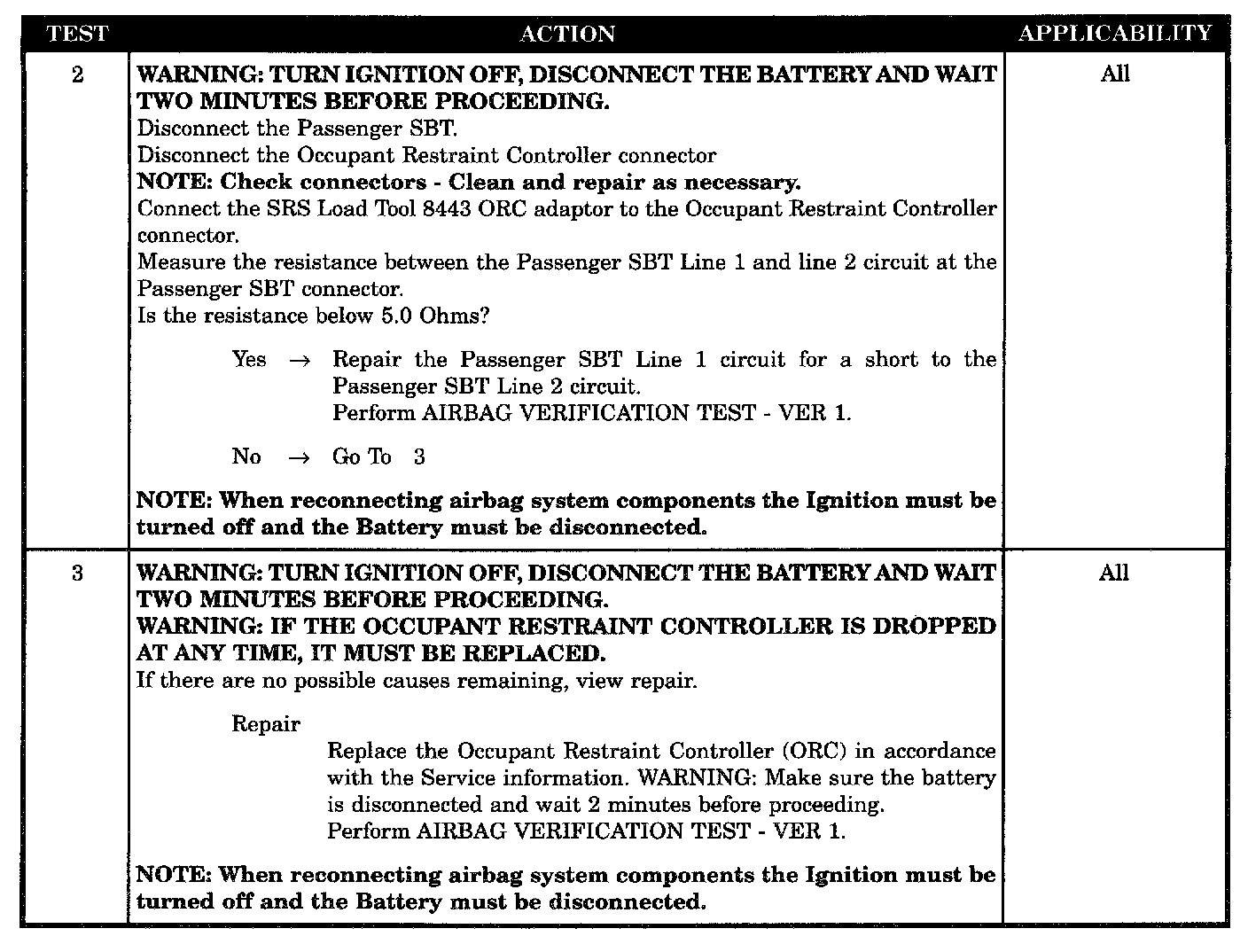

Tests 2 - 3:

SYMPTOM
ORC, PASSENGER SBT CIRCUIT SHORT - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Passenger Seat Belt Tensioner circuits.

SET CONDITION
The ORC has detected low resistance in the Passenger Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Passenger SBT circuits short
- Passenger SBT line 1 short to line 2
- ORC, Passenger SBT circuits short
