ORC Passenger SBT Circuit Open (Active)

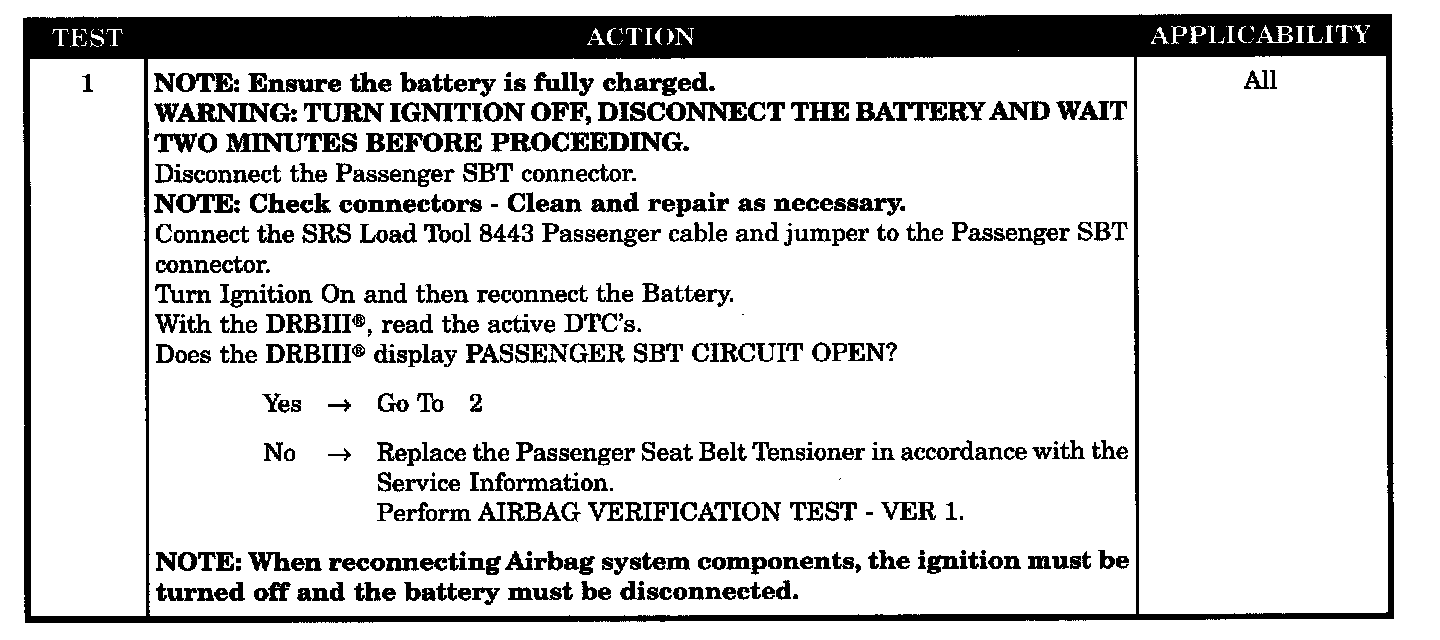

Test 1:

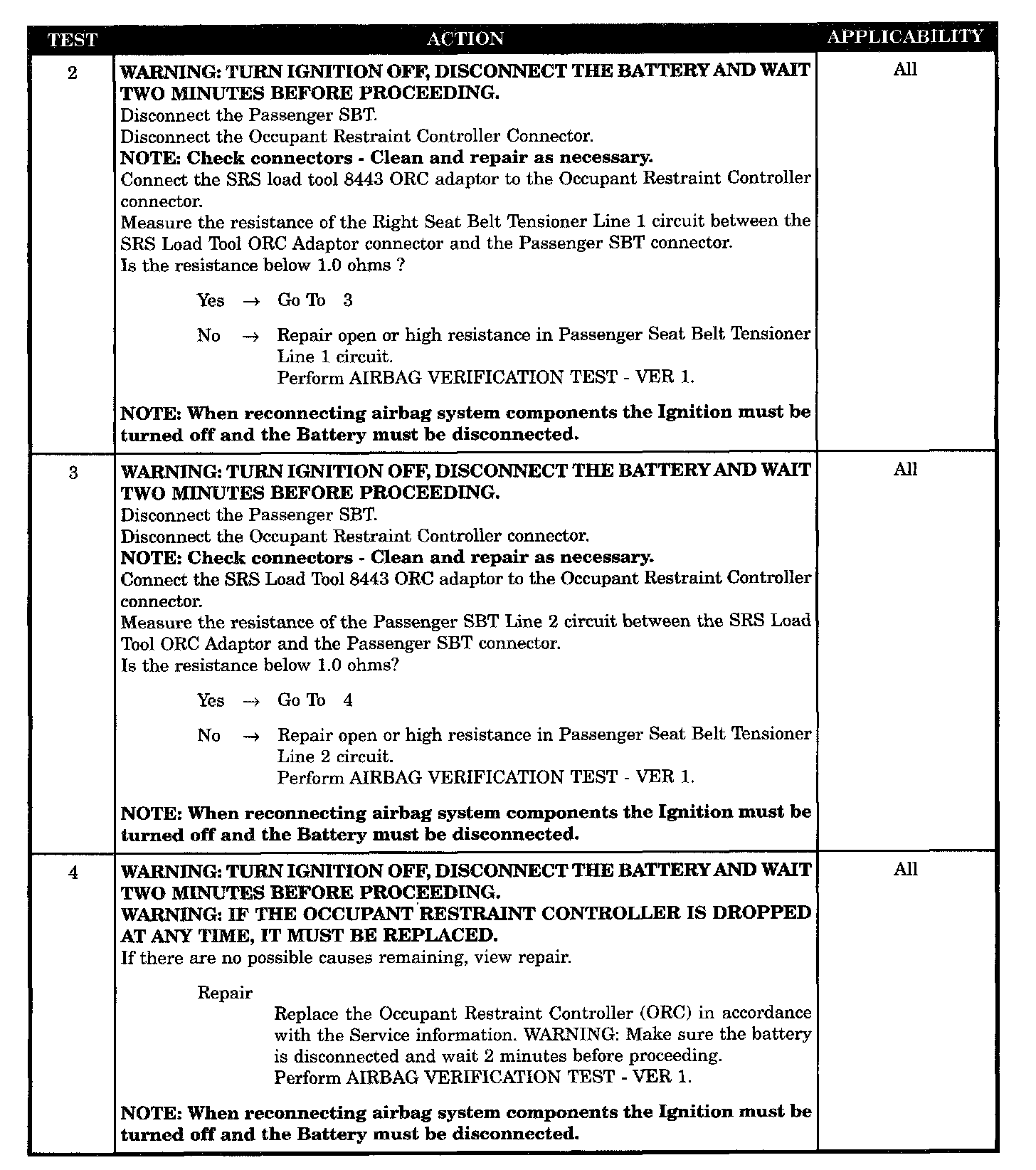

Tests 2 - 4:

SYMPTOM
ORC, PASSENGER SBT CIRCUIT OPEN - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Passenger Seat Belt Tensioner circuits.

SET CONDITION
The ORC has detected an open circuit or high resistance or open circuit in the Passenger Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Passenger SBT circuits open
- Passenger SBT line 1 circuit open
- Passenger SBT line 2 circuit open
- ORC, Passenger SBT circuits open
