ORC Not Configured For SAB (Stored)

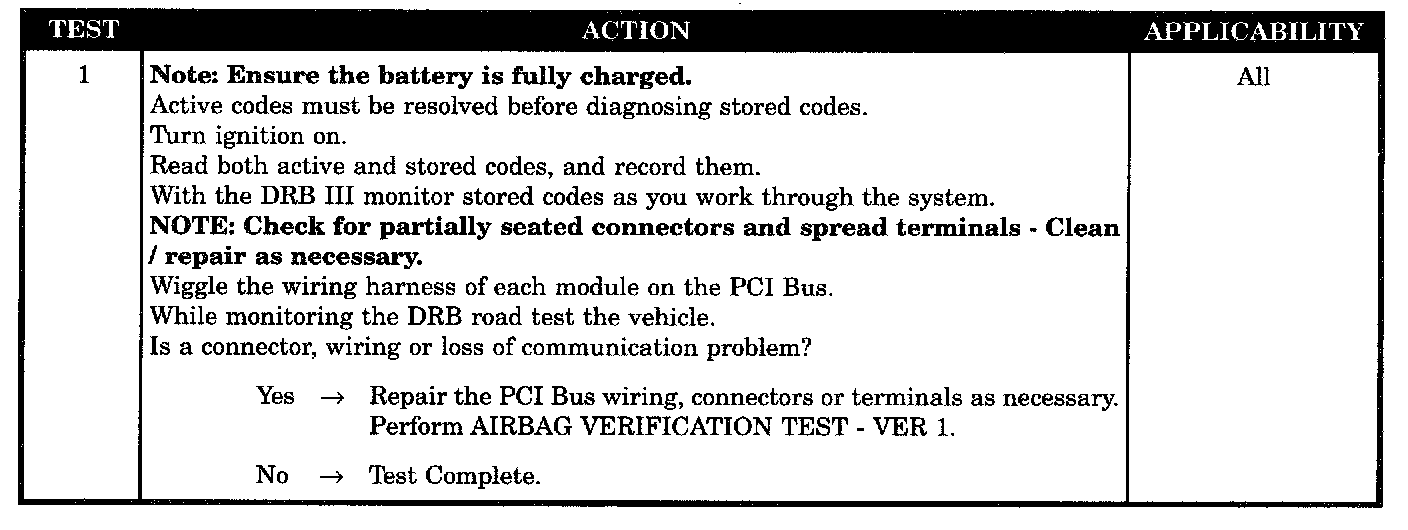

Test 1:

SYMPTOM
ORC, NOT CONFIGURED FOR SAB - STORED

WHEN MONITORED
With ignition ON, the ORC monitors the PCI Bus for a message containing an "A" in the 4th position of the VIN. This character identifies the type of safety equipment and should match the VIN. The PCM transmits the VIN every 13.76 seconds.

SET CONDITION
The code will set, if the ORC detects a Side Impact Airbag Module active on the PCI Bus and the 4th character of the VIN message is not an "A".

POSSIBLE CAUSES
- Intermittent PCI bus test
