ORC No Right SIACM Messages (Active)

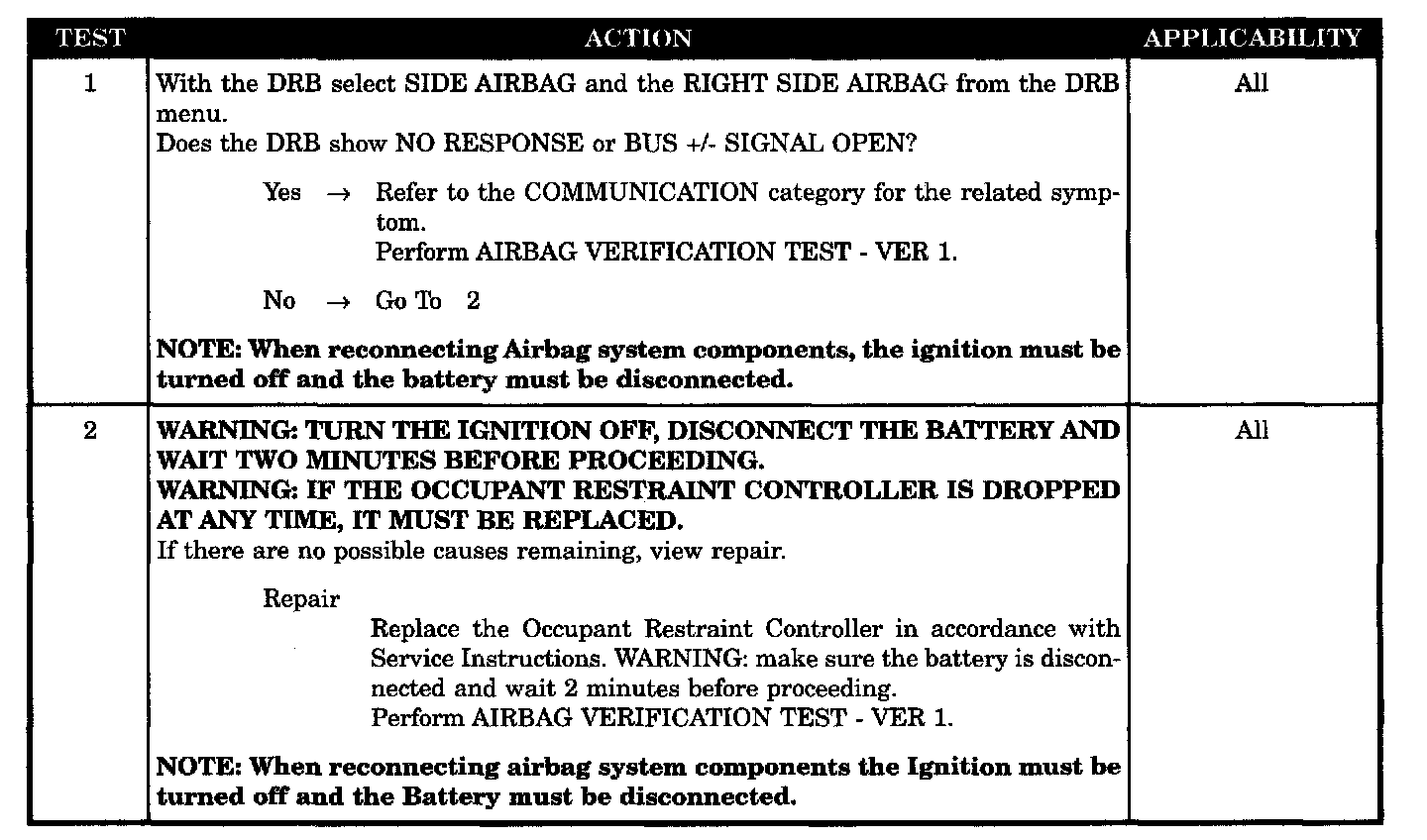

Tests 1 - 2:

SYMPTOM
ORC, NO RIGHT SIACM MESSAGE - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the PCI Bus for the Right Side Impact Airbag Control Module status message. The Right SIACM transmits the status message to the ORC at 1 second intervals.

SET CONDITION
If the ORC fails to see the Right SIACM status message on the PCI Bus for 10 seconds the code will set.

POSSIBLE CAUSES
- No right SIACM message
- ORC, No right SIACM message
