ORC No Odometer Messages (Active)

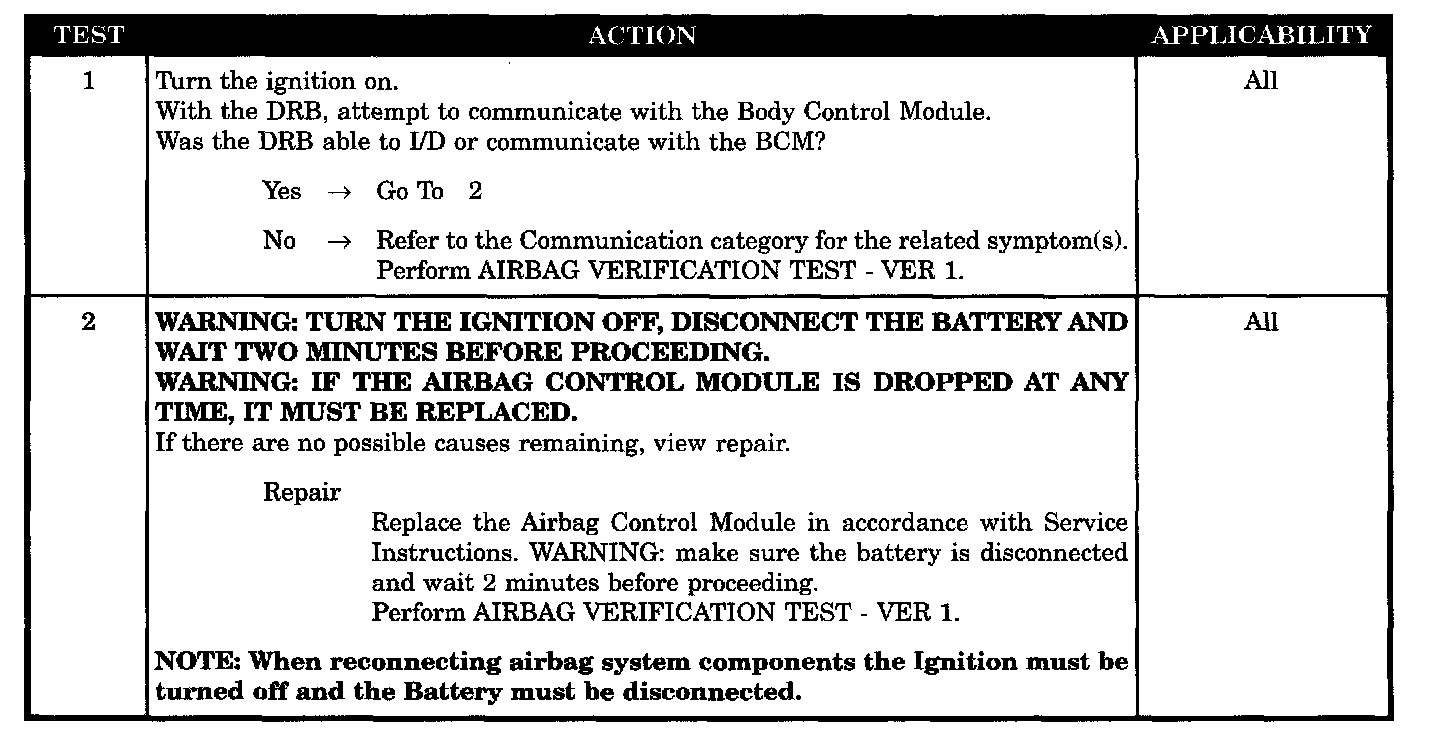

Tests 1 - 2:

SYMPTOM
ORC, NO ODOMETER MESSAGE - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the PCI Bus for the Odometer message from the Body Control Module. The BCM transmits the odometer message at 1 second intervals.

SET CONDITION
The code will set, if the ORC does not see the odometer message for 10 seconds.

POSSIBLE CAUSES
- Attempt to communicate with the body control module
- ORC, No odometer message
