ORC No Cluster Messages (Active)

Tests 1 - 2:

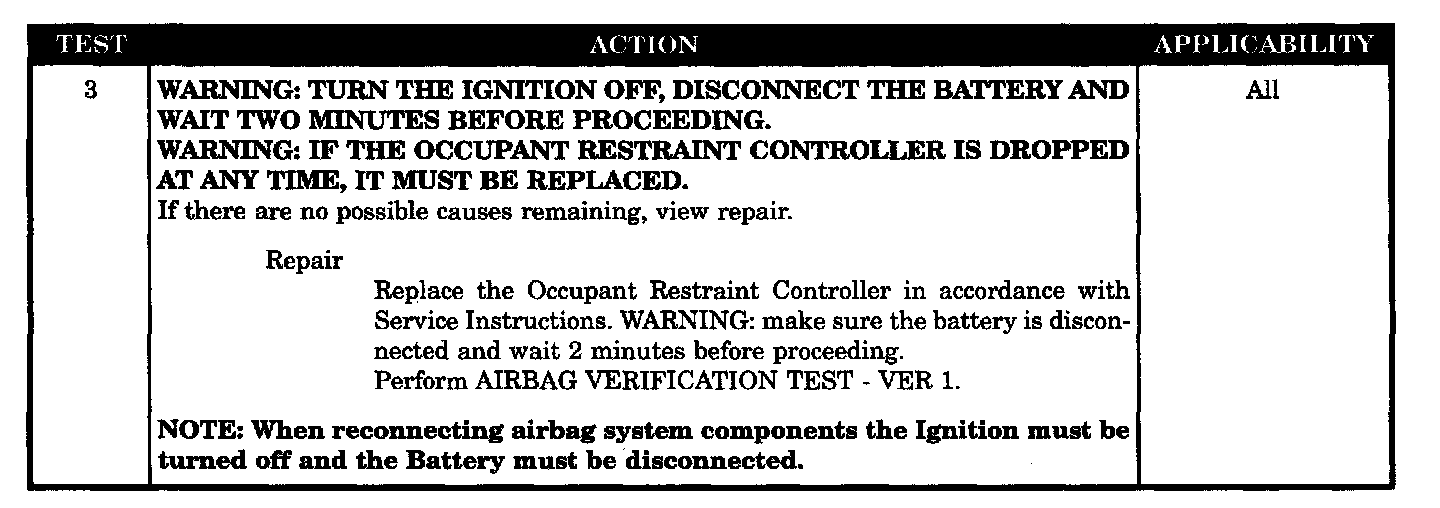

Test 3:

SYMPTOM
ORC, NO CLUSTER MESSAGE - ACTIVE

WHEN MONITORED
when the ignition is ON, the ORC monitors the PCI Bus for a message from the MIC containing the airbag warning lamp status. The MIC transmits the message one time at ignition ON, lamp state change, or in response to the ORC lamp message.

SET CONDITION
If the MIC message is not received for 10 consecutive seconds, the code will set.

POSSIBLE CAUSES
- MIC, communication failure
- No cluster messages
- ORC, No cluster messages
