ORC Loss of Ignition Run/Start (Active)

Tests 1 - 2:

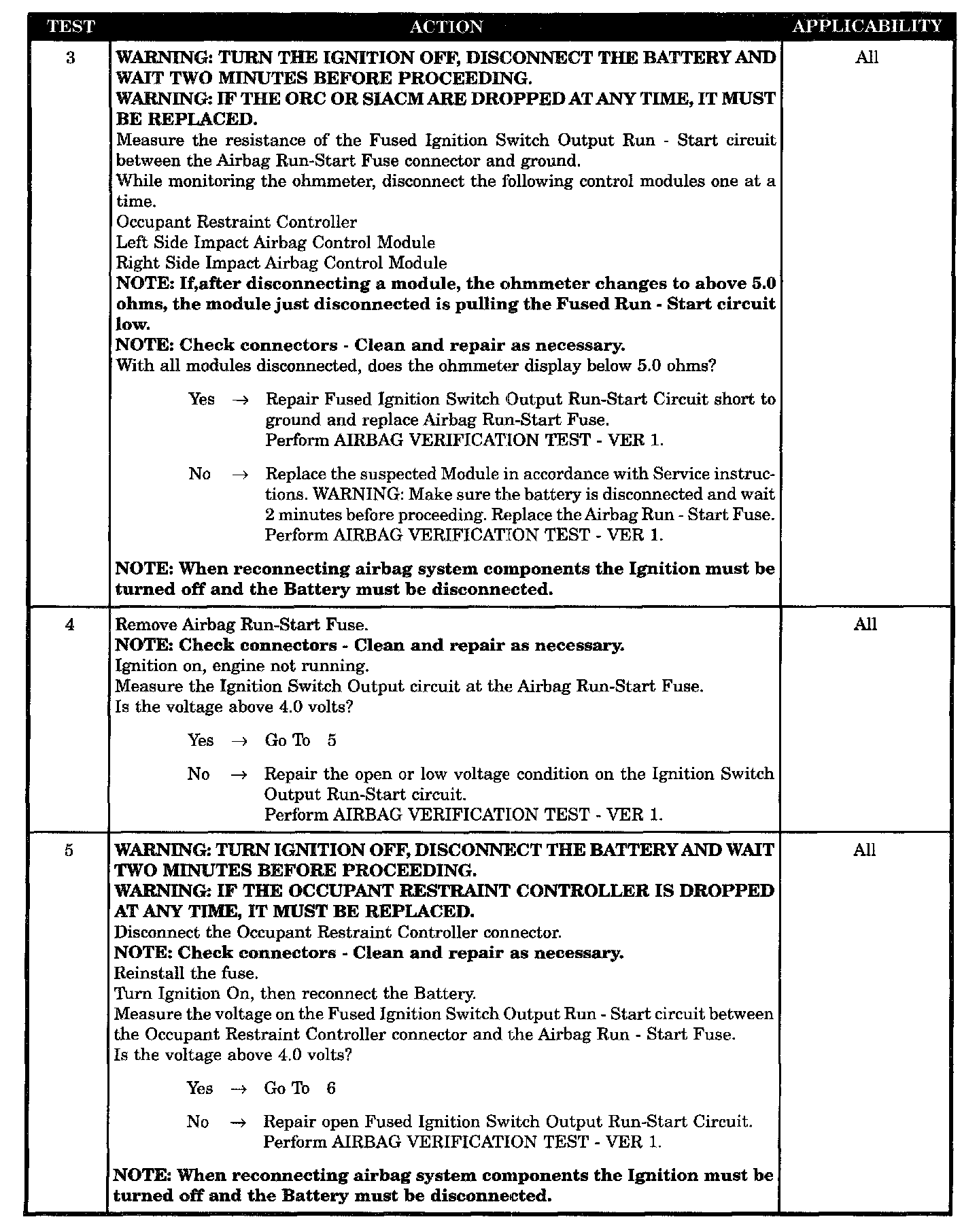

Tests 3 - 5:

Test 6:

SYMPTOM
ORC, LOSS OF IGNITION RUN-START - ACTIVE

WHEN MONITORED
With the ignition in the Run-Start position the ORC monitors the Fused Ignition Switch Output Run-Start circuit for proper system voltage.

SET CONDITION
If the voltage on the Fused Ignition Switch Output Run - Start circuit drops below 4.5 volts, the code will set.

POSSIBLE CAUSES
- Ignition switch run-start circuit open
- Fused run-start circuit test
- Fused ignition switch output run-start circuit open
- Fused run-start short to ground
- Suspect module short to ground
- ORC, Fused ignition switch output run-start open
