ORC Loss of Ignition Run Only (Active)

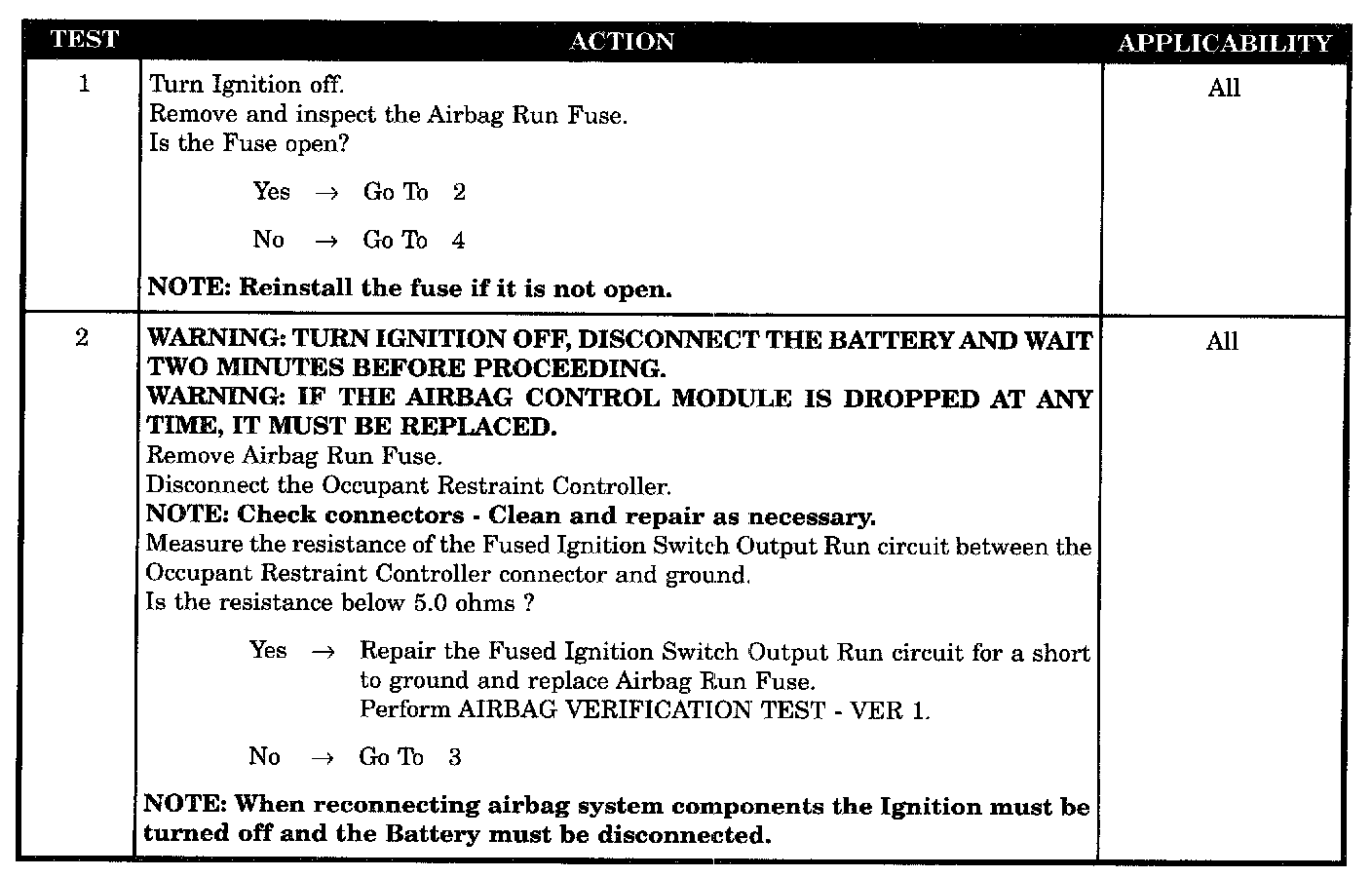

Tests 1 - 2:

Tests 3 - 5:

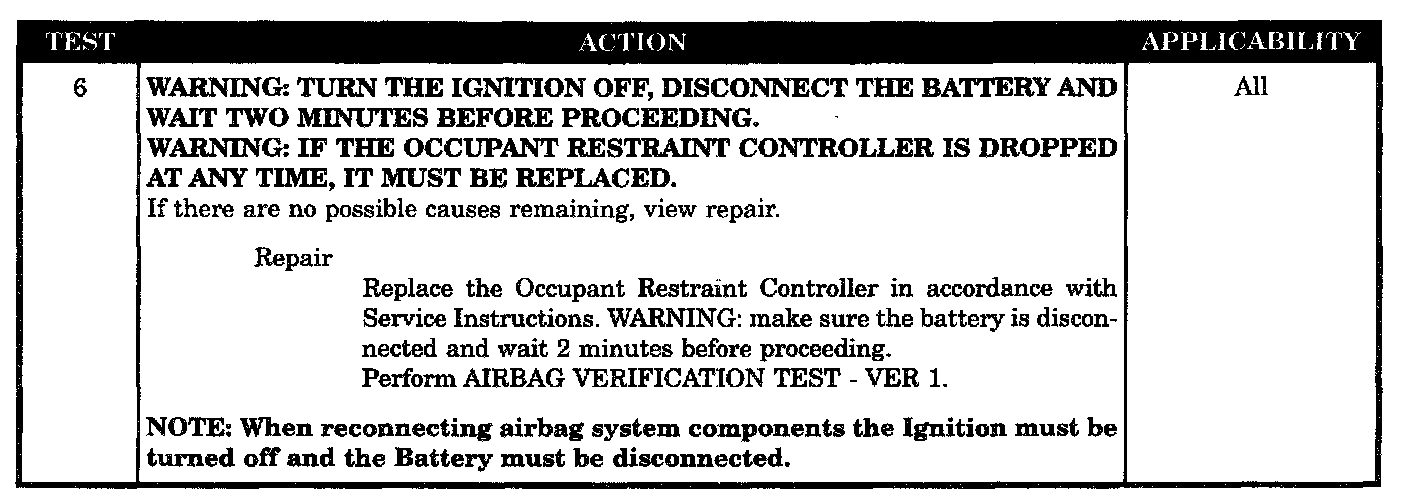

Tests 6:

SYMPTOM
ORC, LOSS OF IGNITION RUN ONLY - ACTIVE

WHEN MONITORED
With the ignition in the run only position the ORC monitors the Fused Ignition Switch Output Run circuit for proper system voltage.

SET CONDITION
If the voltage on the Fused Ignition Switch Output Run circuit drops below 4.5 volts, the code will set.

POSSIBLE CAUSES
- Ignition switch output run circuit
- Fused ignition switch output run circuit open
- Fused ignition switch output run circuit short to ground
- Open airbag run fuse
- ORC, Fused ignition switch output run circuit open
- ORC, Fused ignition switch output run circuit short to ground
