ORC Interrogate Right SIACM (Active)

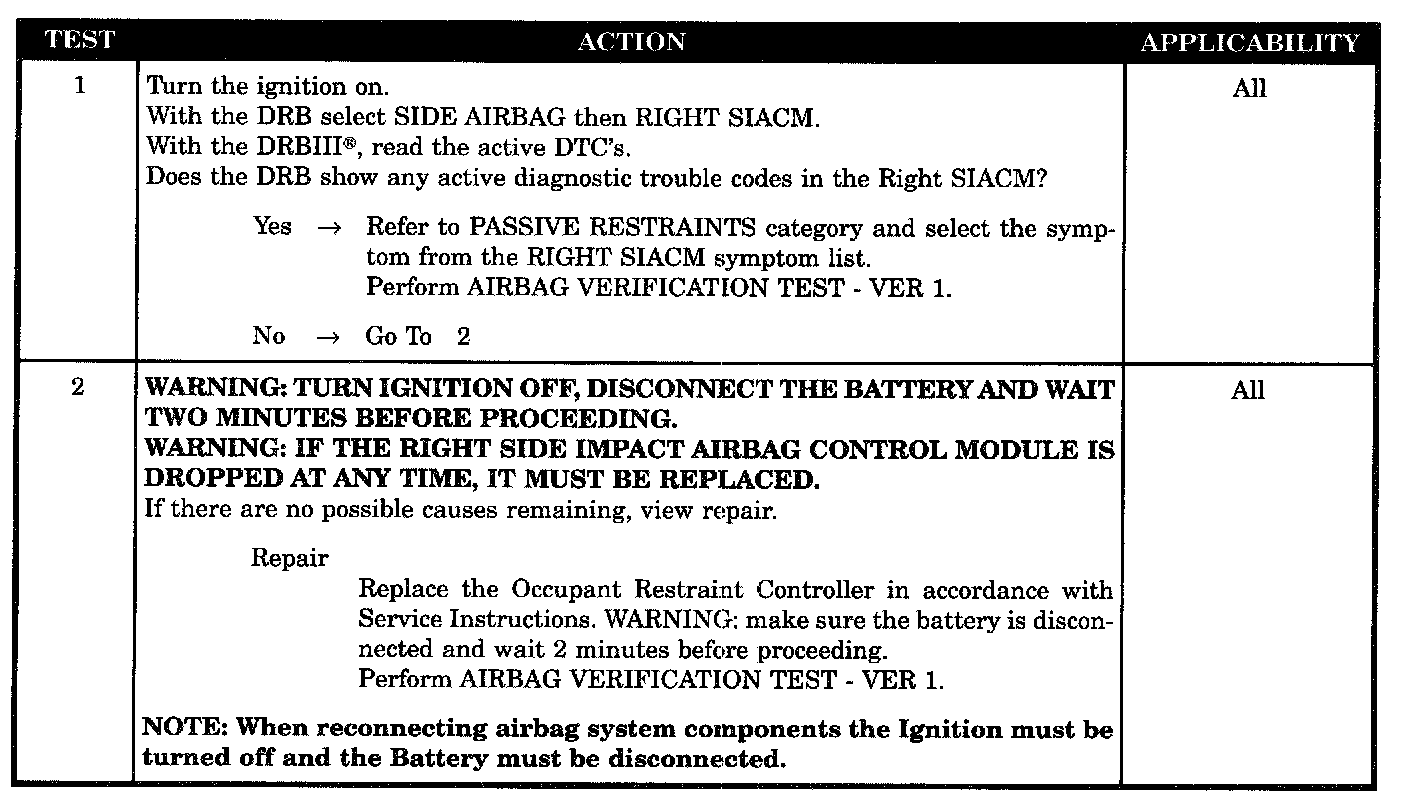

Tests 1 - 2:

SYMPTOM
ORC, INTERROGATE RIGHT SIACM - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the PCI Bus for a Right SIACM status message containing the airbag warning lamp "Lamp ON/OFF" request. The status message is sent to the ORC once each second or upon any change in the active DTCs.

SET CONDITION
The Code will set, if the ORC receives an "Lamp ON" status message from the Right SIACM. NOTE: This indicates that there is an active diagnostic trouble code in the Right SIACM.

POSSIBLE CAUSES
- Interrogate right SIACM
- ORC, interrogate right SIACM
