ORC Driver Squib 2 Shorted to Battery (Active)

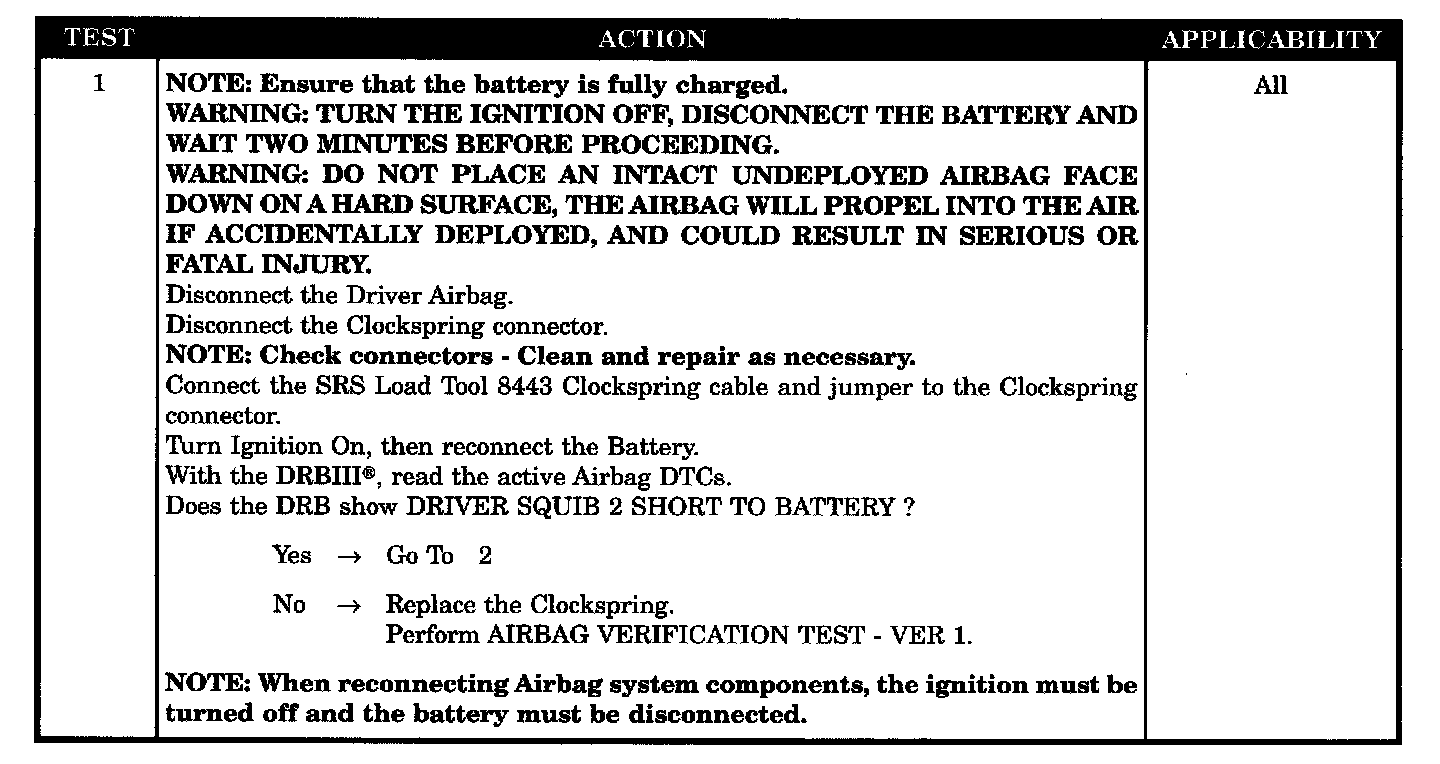

Test 1:

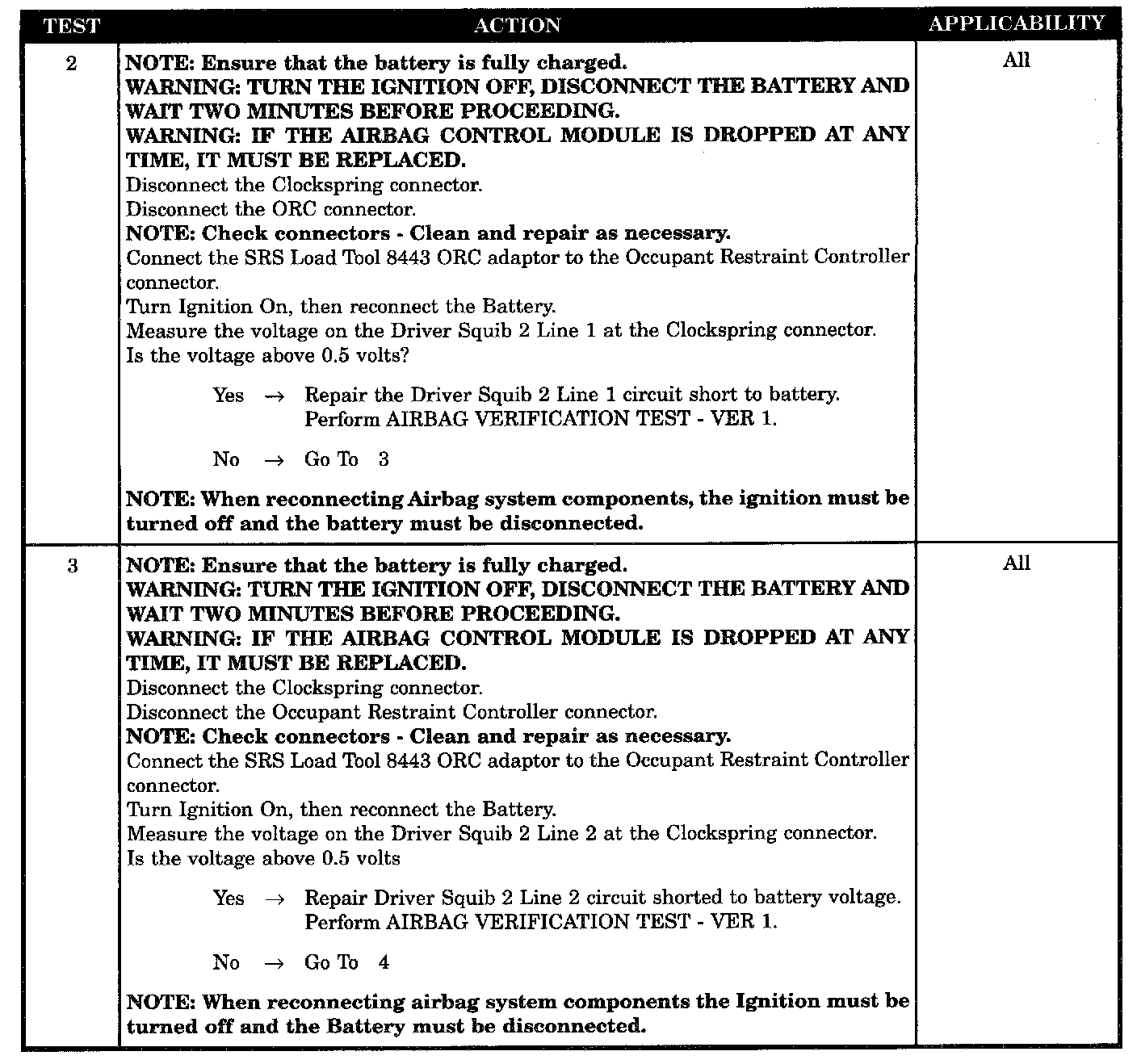

Tests 2 - 3:

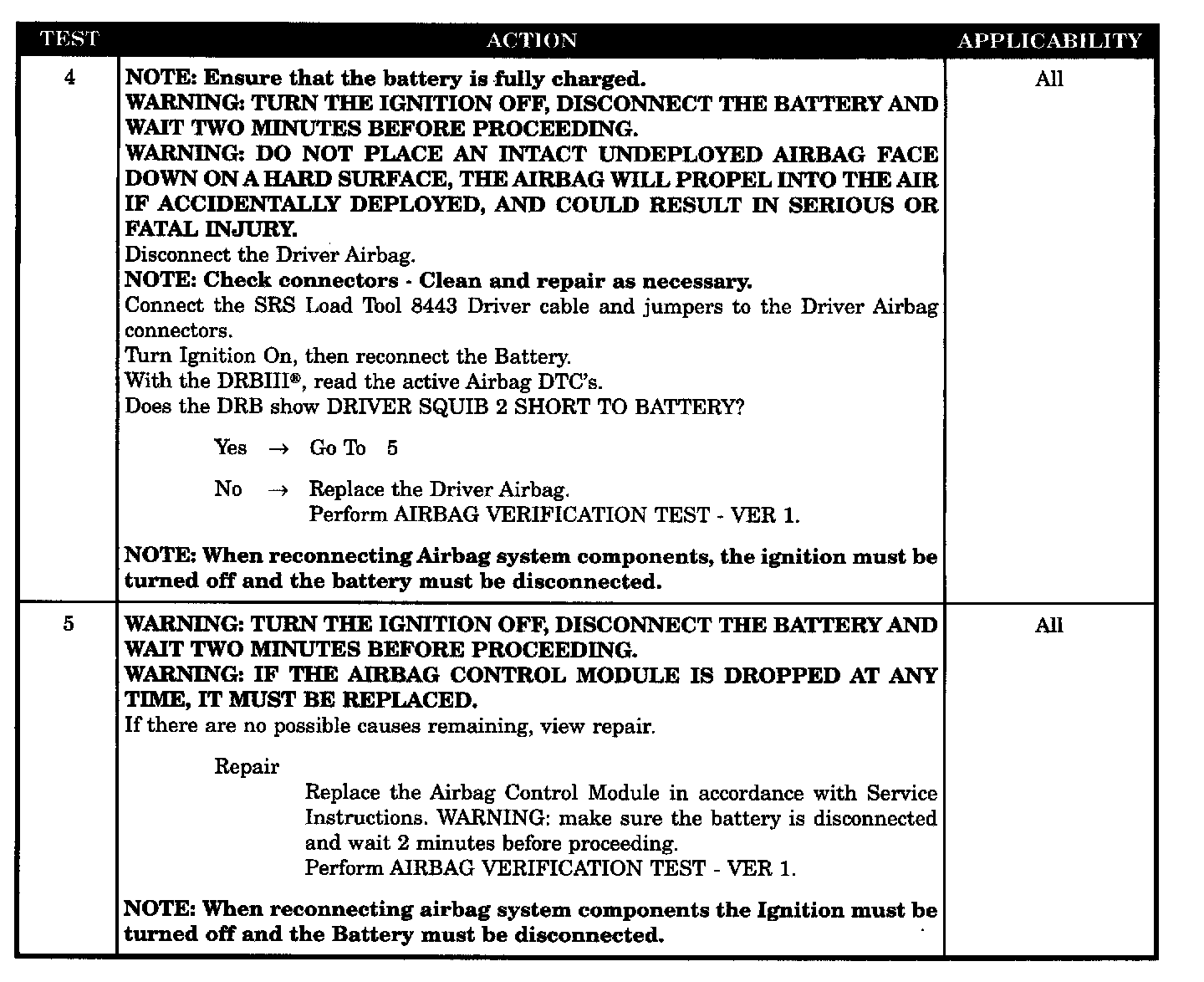

Tests 4 - 5:

SYMPTOM
ORC, DRIVER SQUIB 2 SHORT TO BATTERY - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the voltage of the Driver Squib 2 circuits.

SET CONDITION
The ORC has detected high voltage on the Driver Squib 2 circuits.

POSSIBLE CAUSES
- Driver airbag circuit short to battery
- Clockspring, driver squib 2 circuit short to battery
- Driver squib 2 line 1 short to battery
- Driver squib 2 line 2 shorted to battery
- ORC, driver squib 2 circuit short to battery
