ORC Driver Squib 2 Circuit Open (Active)

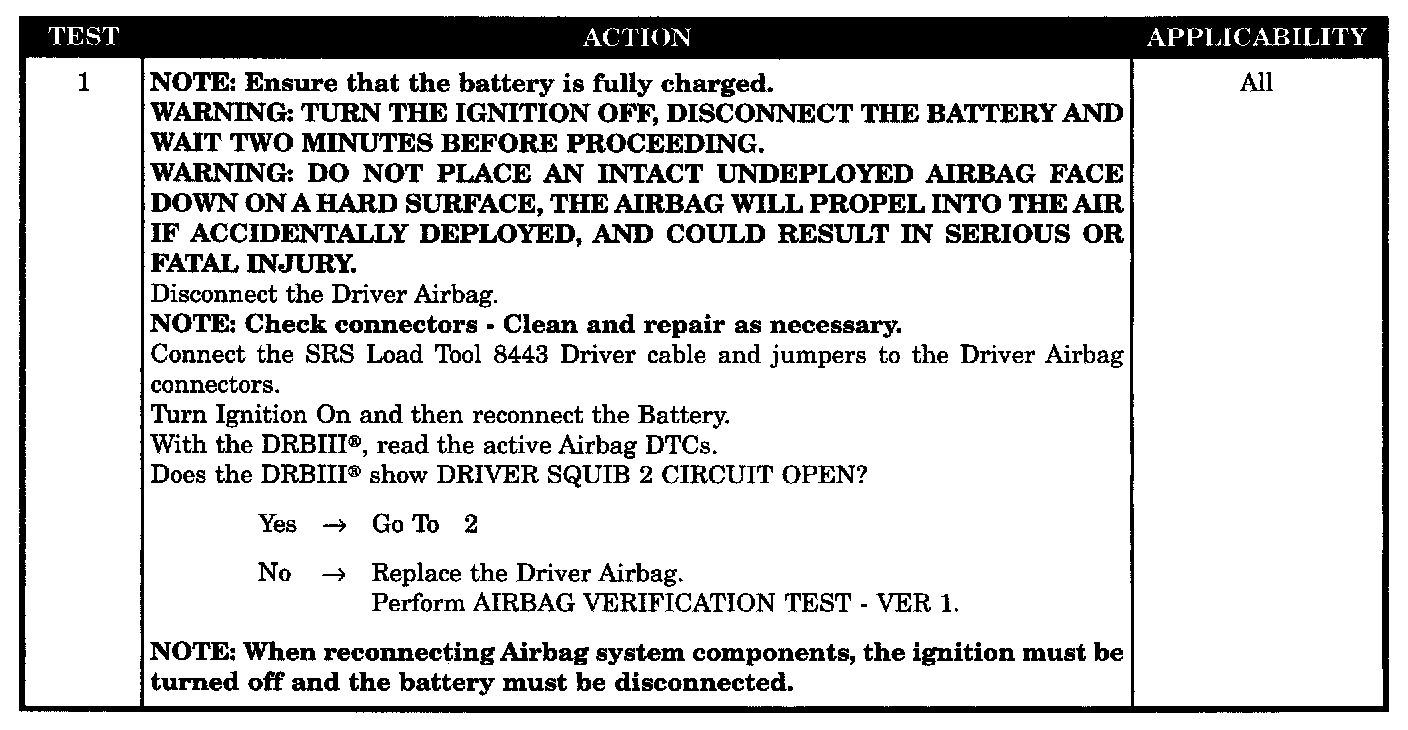

Test 1:

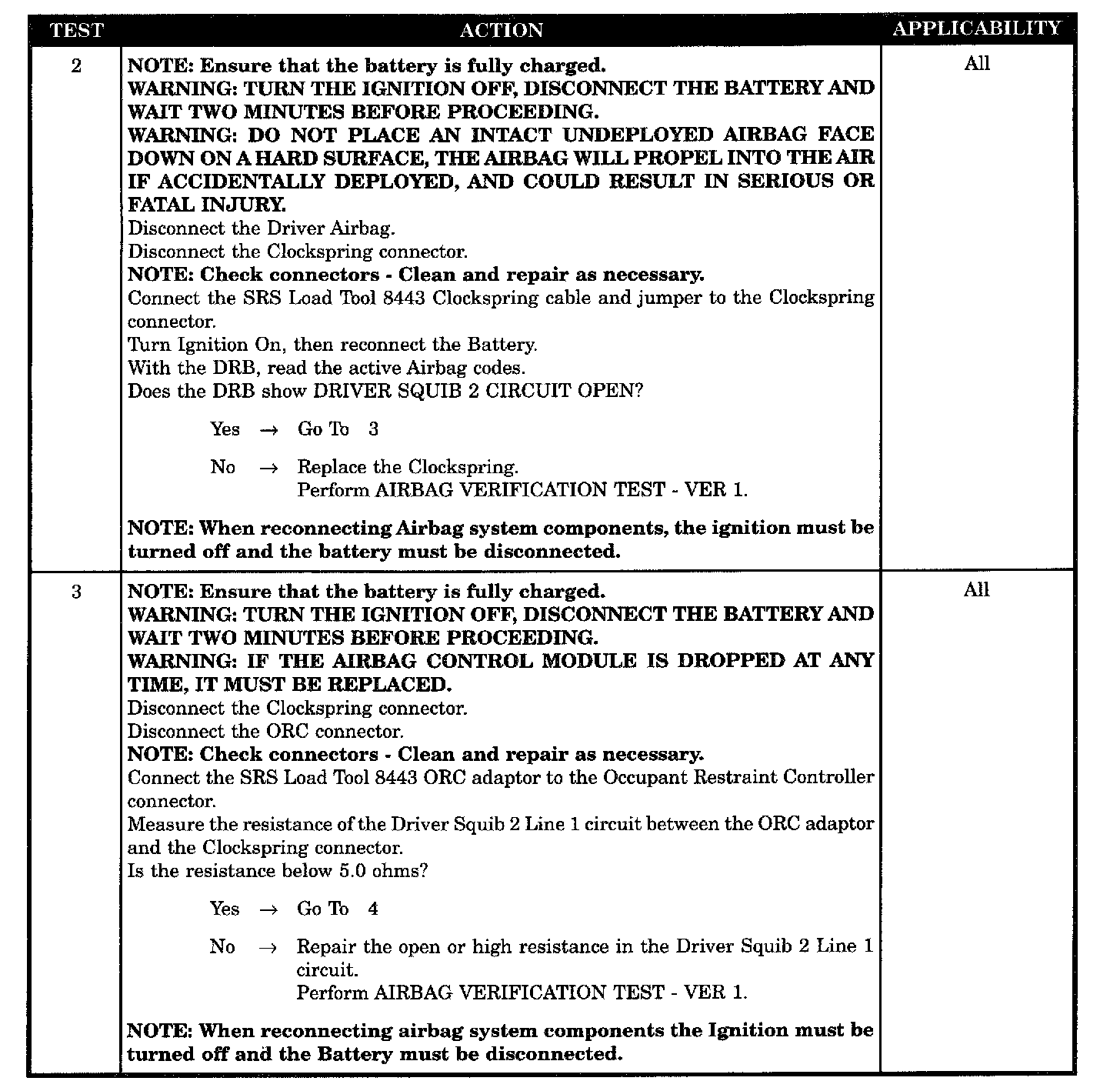

Tests 2 - 3:

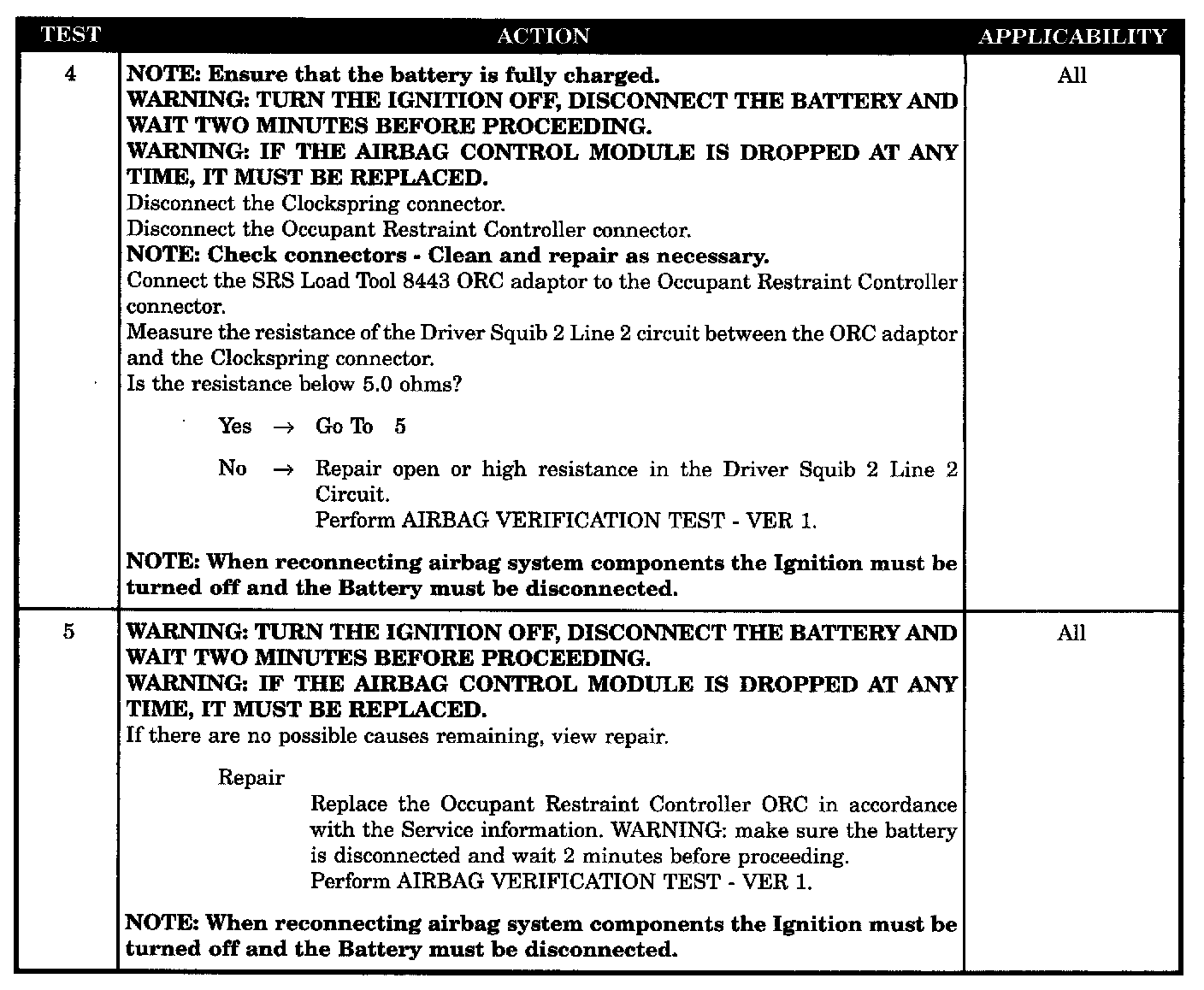

Tests 4 - 5:

SYMPTOM
ORC, DRIVER SQUIB 2 CIRCUIT OPEN - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Driver Squib 2 circuits.

SET CONDITION
The ORC has detected an open circuit or high resistance in the Driver Squib 2 circuits.

POSSIBLE CAUSES
- Driver airbag circuit open
- Clockspring, driver squib 2 circuit open
- Driver squib 2 line 1 circuit open
- Driver squib 2 line 2 circuit open
- ORC, Driver squib 2 circuit open
