ORC Driver Squib 1 Shorted to Battery (Active)

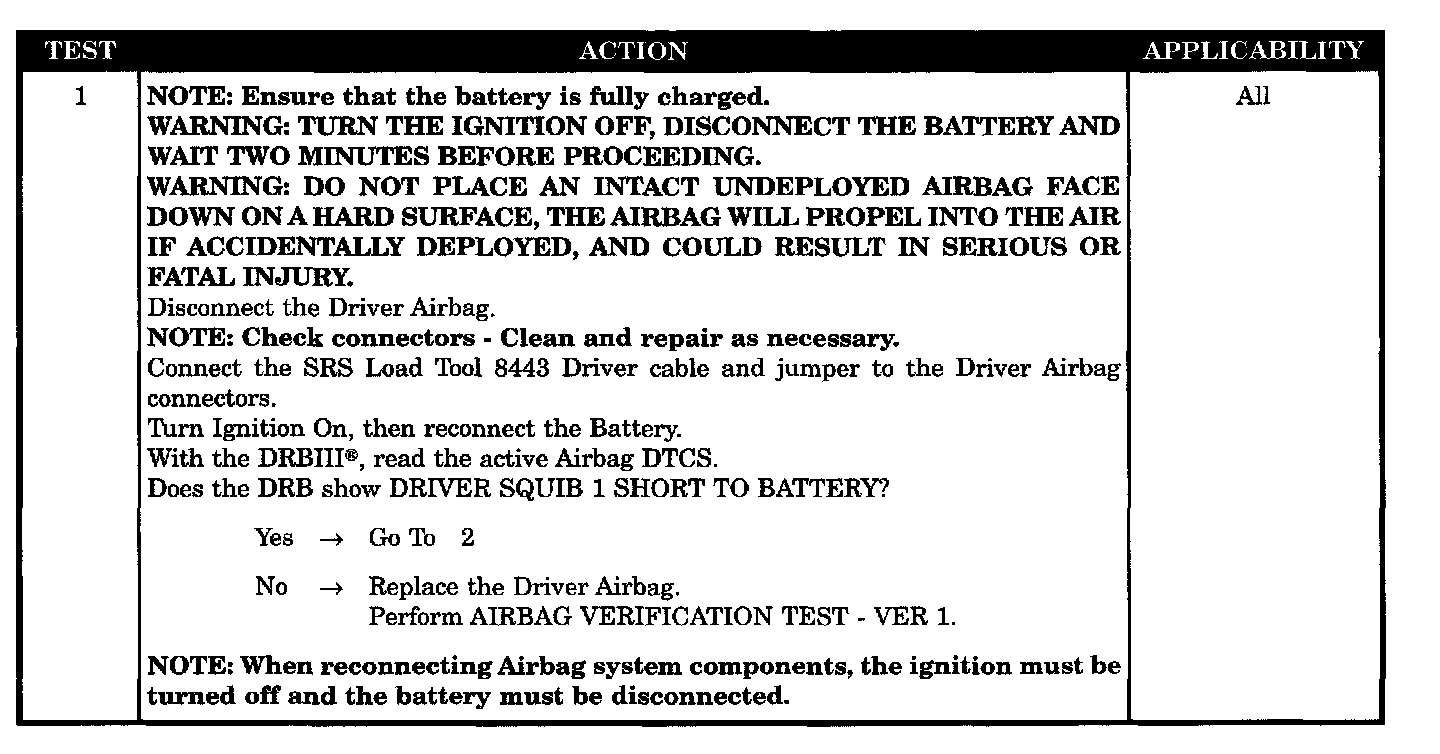

Test 1:

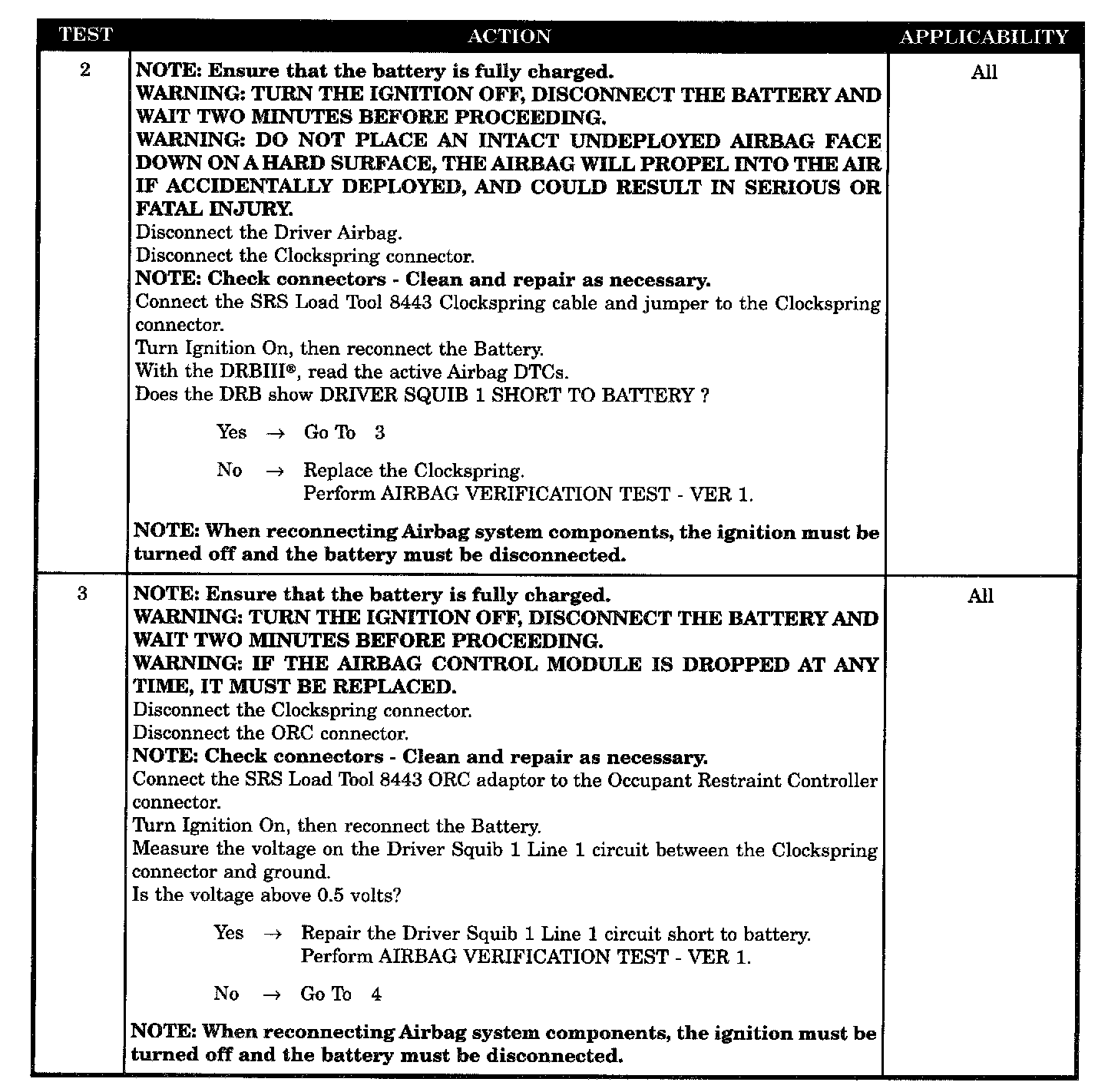

Tests 2 - 3:

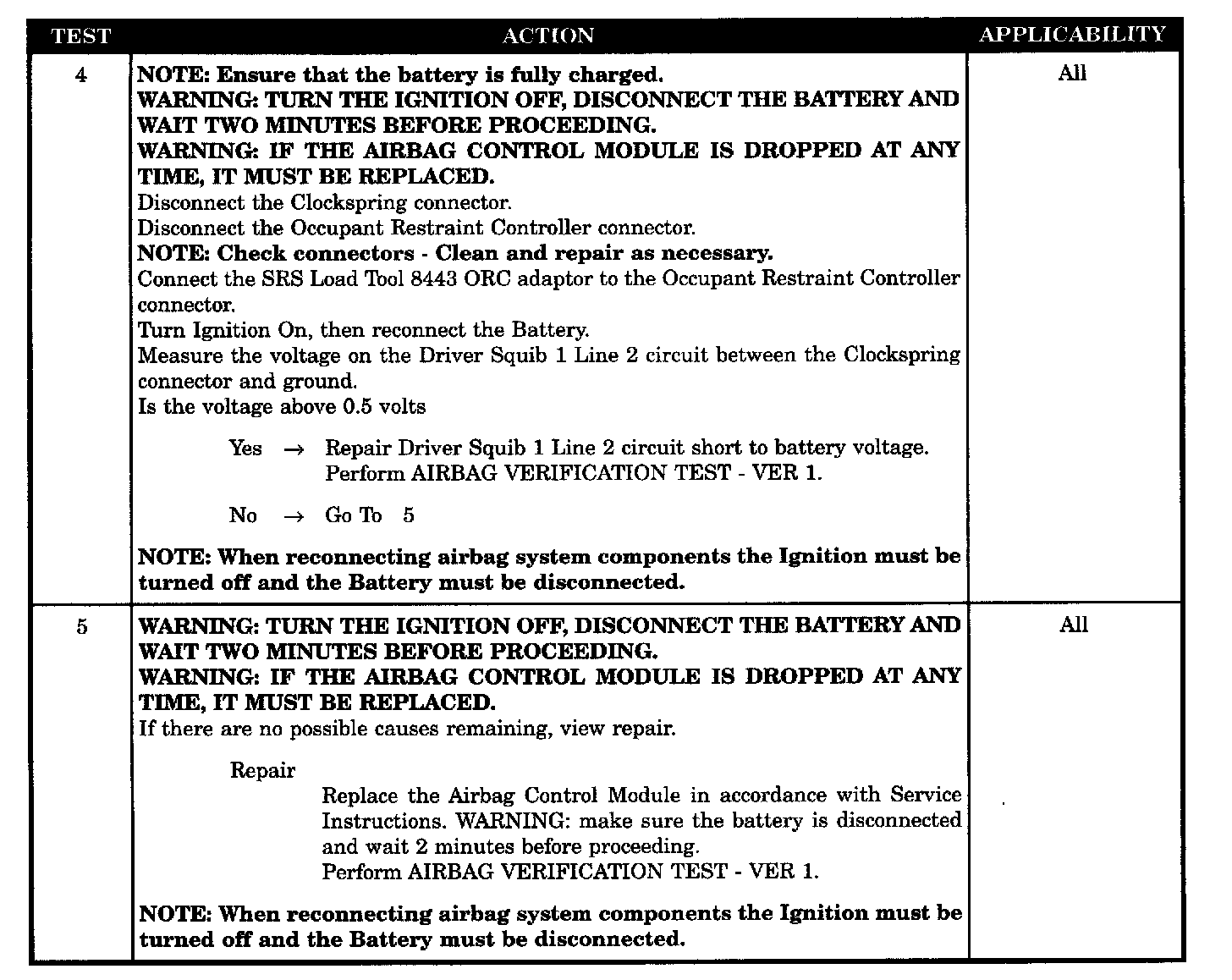

Tests 4 - 5:

SYMPTOM
ORC, DRIVER SQUIB 1 SHORT TO BATTERY - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the voltage of the Driver Squib 1 circuits.

SET CONDITION
The ORC has detected high voltage on the Driver Squib 1 circuits.

POSSIBLE CAUSES
- Driver airbag circuit short to battery
- Clockspring, Driver squib 1 circuit short to battery
- Driver squib 1 line 1 short to battery
- Driver squib 1 line 2 short to battery
- ORC, Driver squib 1 circuit short to battery
