ORC Driver Squib 1 Circuit Shorted (Active)

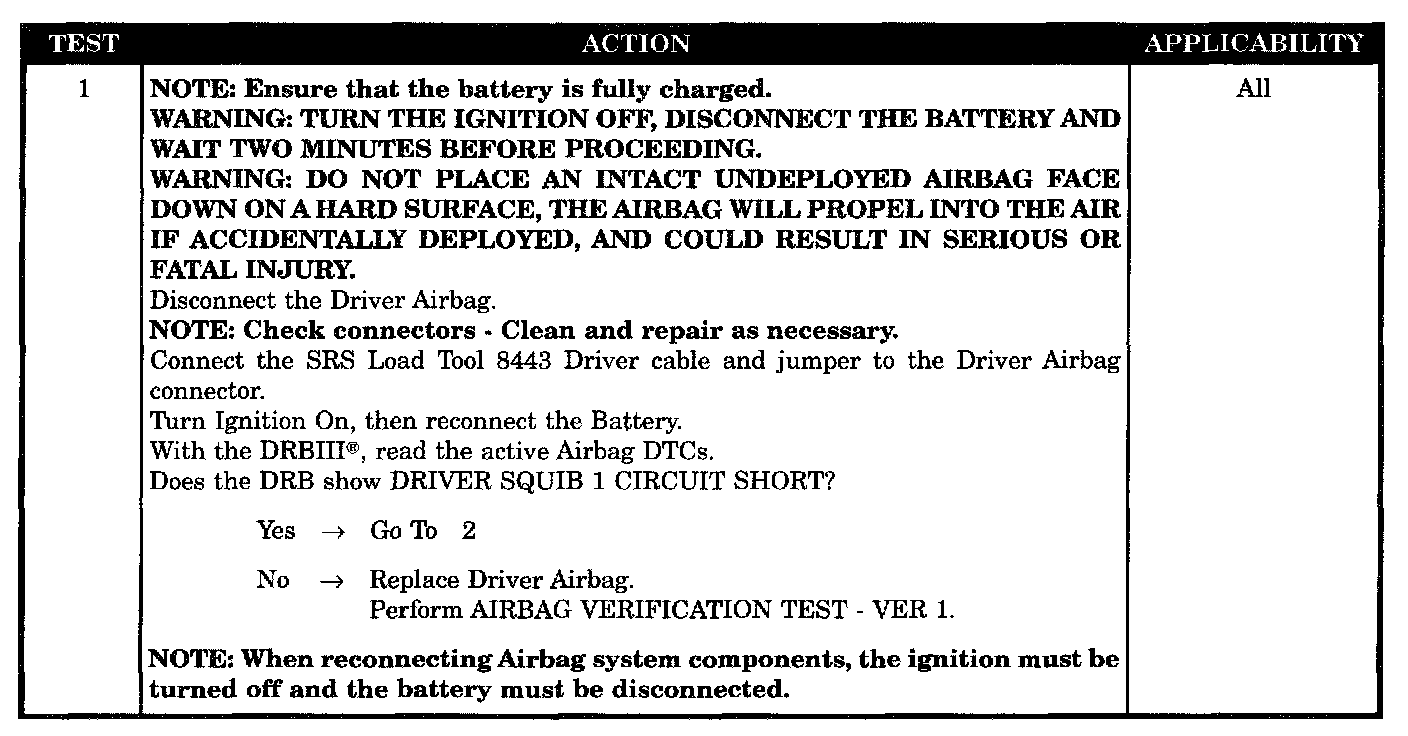

Test 1:

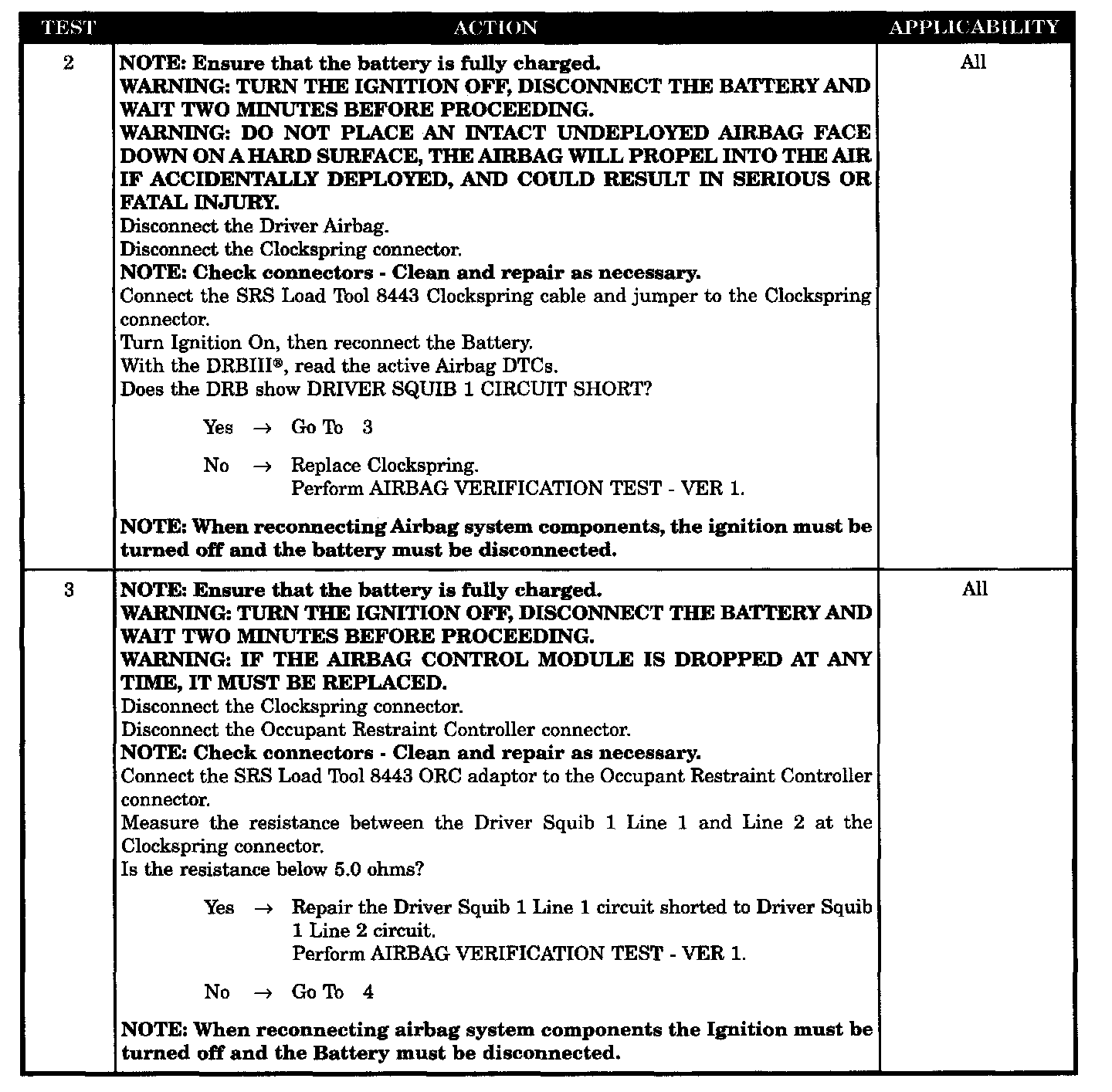

Tests 2 - 3:

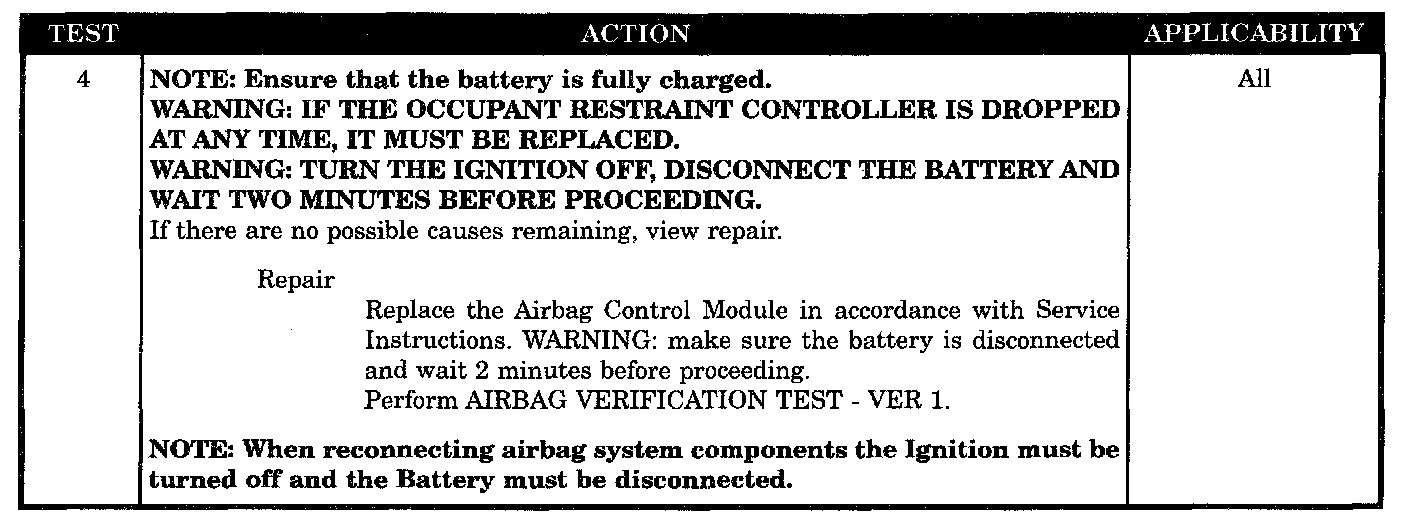

Test 4:

SYMPTOM
ORC, DRIVER SQUIB 1 CIRCUIT SHORT - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Driver Squib 1 circuits.

SET CONDITION
The ORC has detected low resistance on the Driver Squib 1 circuits.

POSSIBLE CAUSES
- Driver airbag circuit short
- Clockspring, Driver squib 1 circuit short
- Driver squib 1 line 1 short to line 2
- ORC, driver squib 1 circuit short
