ORC Driver Squib 1 Circuit Open (Active)

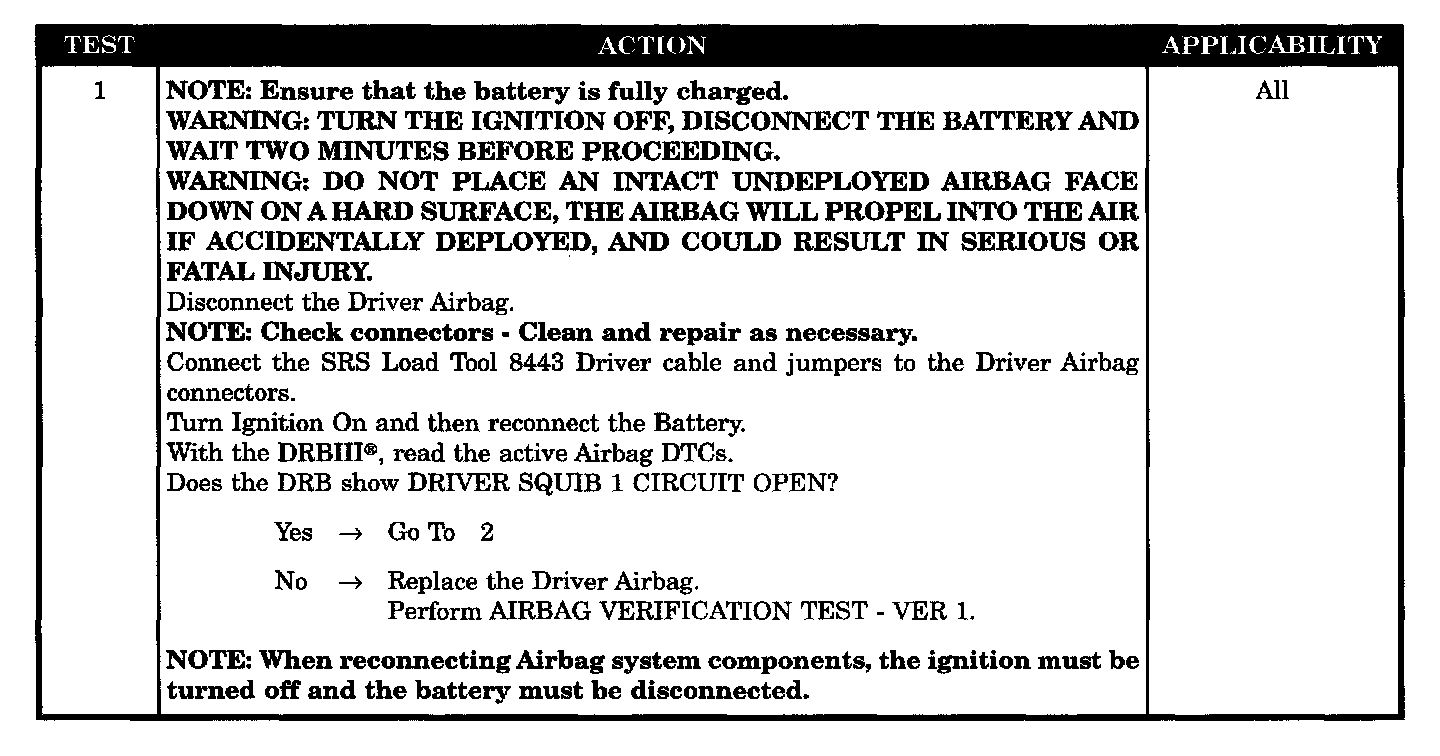

Test 1:

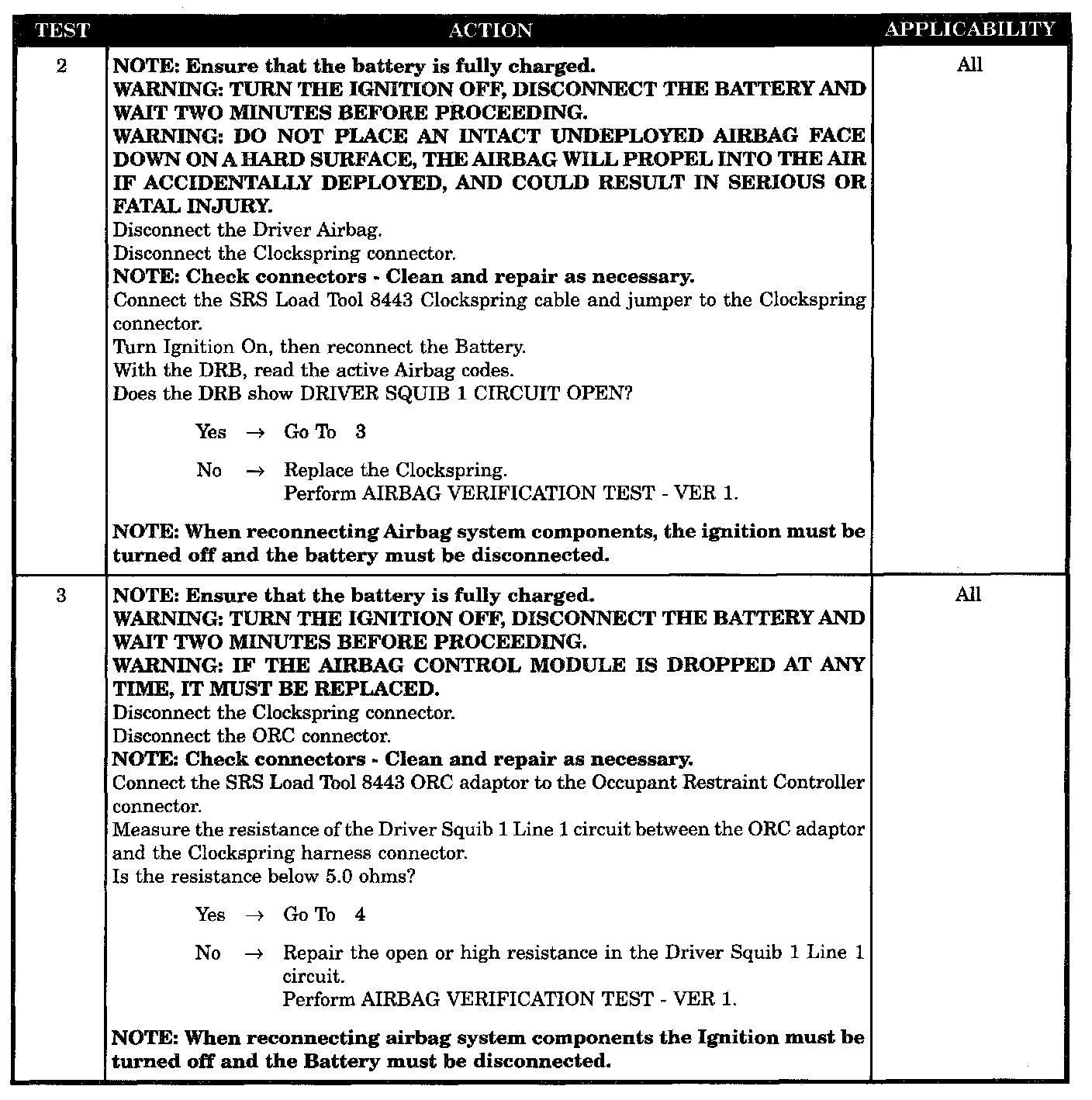

Tests 2 - 3:

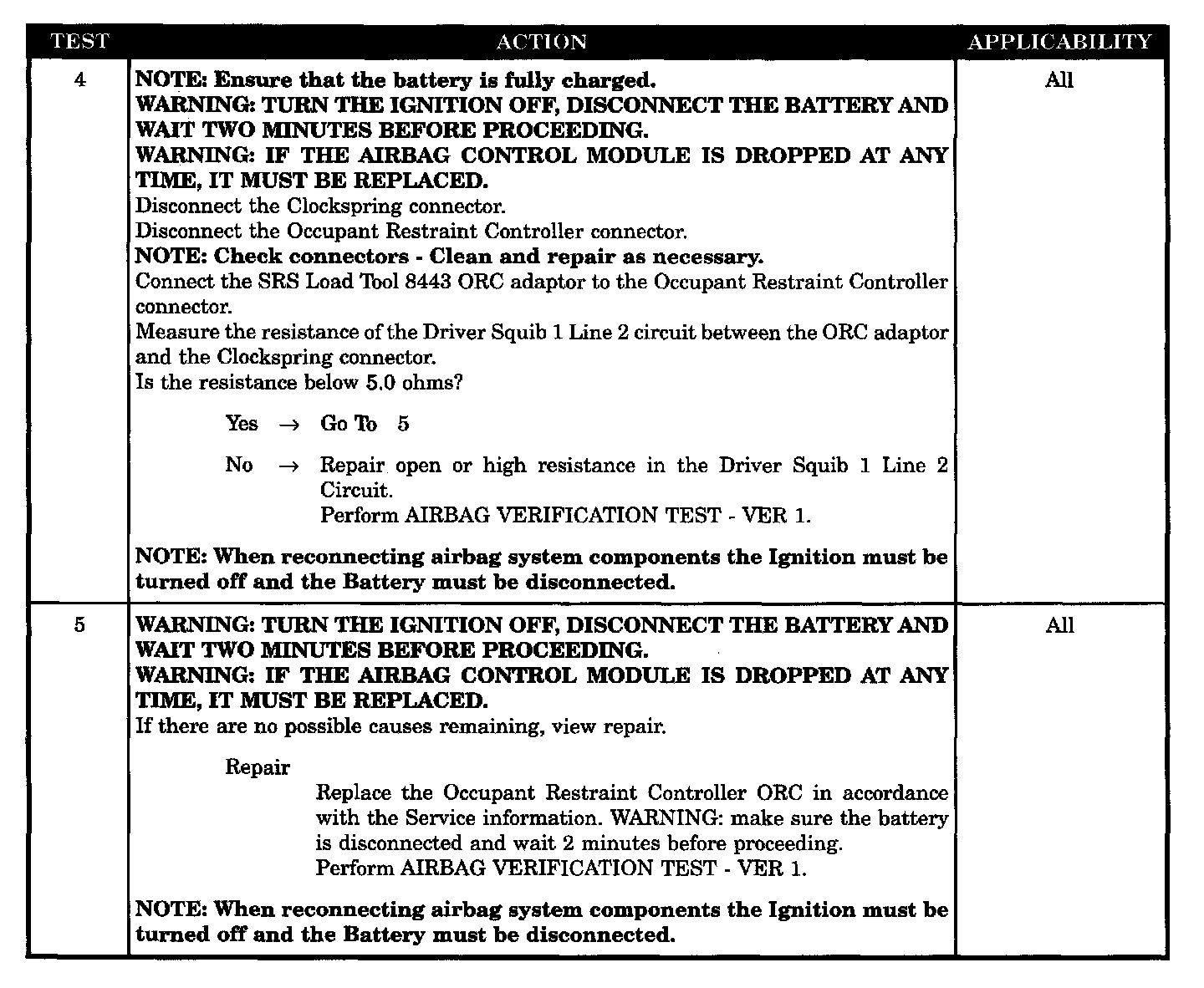

Tests 4 - 5:

SYMPTOM
ORC, DRIVER SQUIB 1 CIRCUIT OPEN - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Driver Squib 1 circuits.

SET CONDITION
The ORC has detected an open circuit or high resistance in the Driver Squib 1 circuits.

POSSIBLE CAUSES
- Driver airbag circuit open
- Clockspring, Driver squib 1 circuit open
- Driver squib 1 line 1 circuit open
- Driver squib 1 line 2 circuit open
- ORC, Driver squib 1 circuit open
