ORC Driver SBT Shorted to Ground (Active)

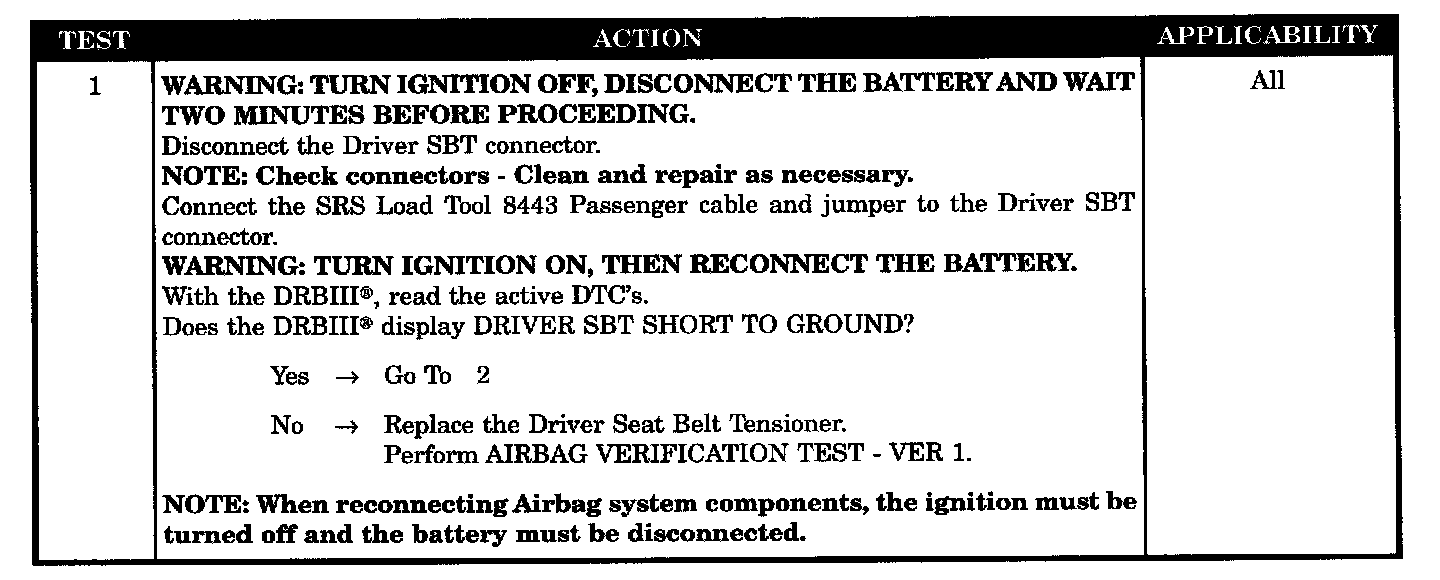

Test 1:

Tests 2 - 4:

SYMPTOM
ORC, DRIVER SBT SHORT TO GROUND - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the voltage of the Driver Seat Belt Tensioner circuits.

SET CONDITION
The ORC has detected a short to ground in the Driver Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Driver SBT circuits short to ground
- Driver SBT line 1 short to ground
- Driver SBT line 2 short to ground
- ORC, Driver SBT circuits short to ground
