ORC Driver SBT Shorted to Battery (Active)

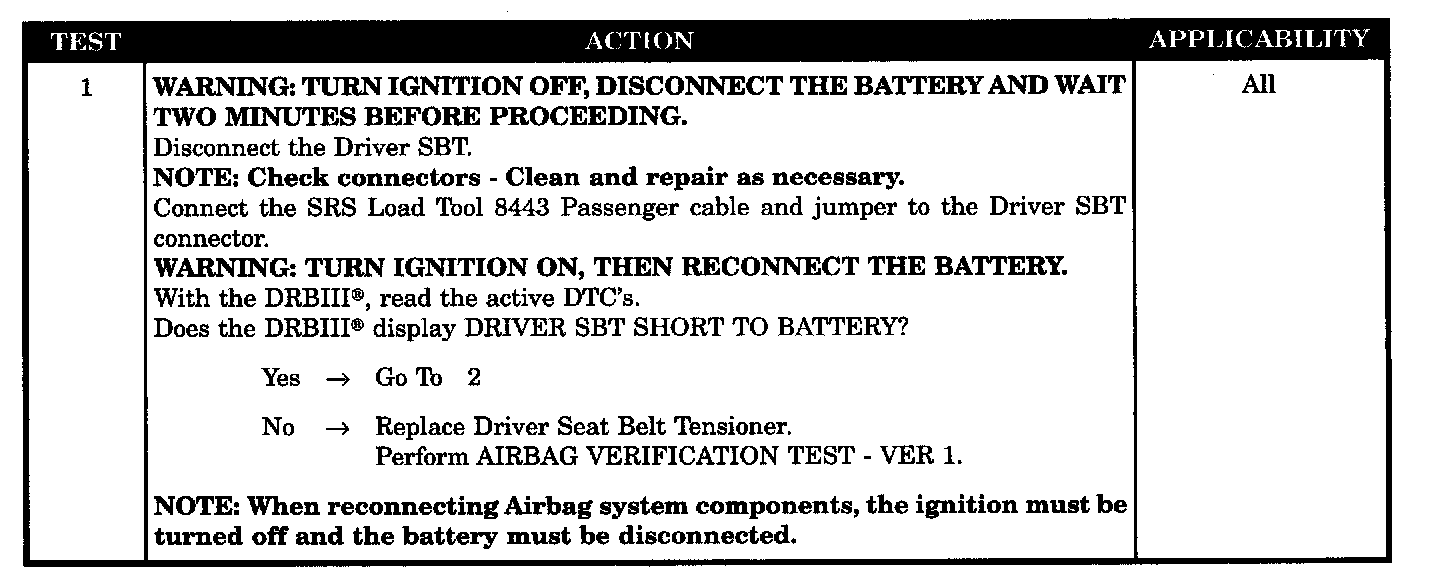

Test 1:

Tests 2 - 4:

SYMPTOM
ORC, DRIVER SBT SHORT TO BATTERY - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the voltage of the Driver Seat Belt Tensioner circuits.

SET CONDITION
The ORC has detected high voltage on the Driver Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Driver SBT circuits short to battery
- Driver SBT line 1 short to battery
- Driver SBT line 2 short to battery
- ORC, Driver SBT circuits short to battery
