ORC Driver SBT Circuit Shorted (Active)

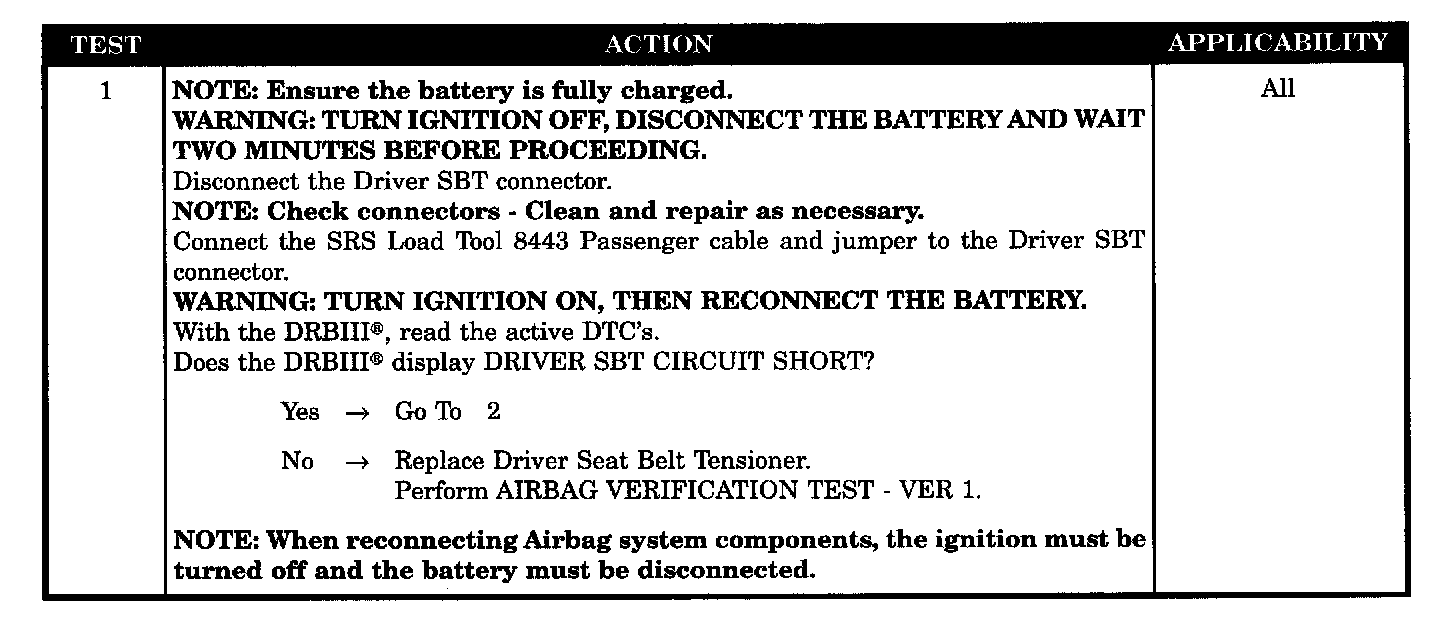

Test 1:

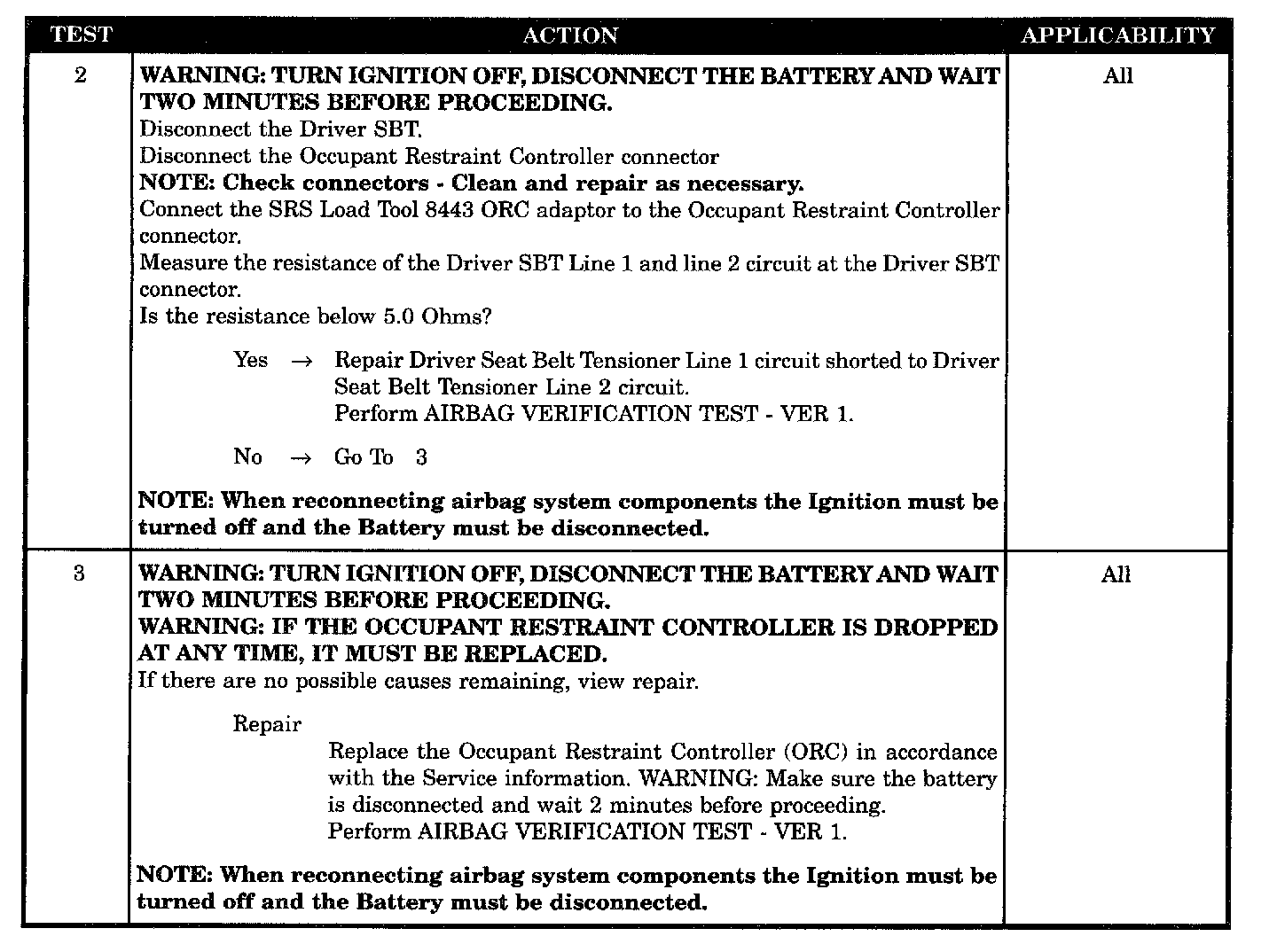

Tests 2 - 3:

SYMPTOM
ORC, DRIVER SBT CIRCUIT SHORT - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Driver Seat Belt Tensioner circuits

SET CONDITION
The ORC has detected low resistance in the Driver Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Driver SBT circuits short
- Driver SBT line 1 short to line 2
- ORC, Driver SBT circuit short
