ORC Driver SBT Circuit Open (Active)

Test 1:

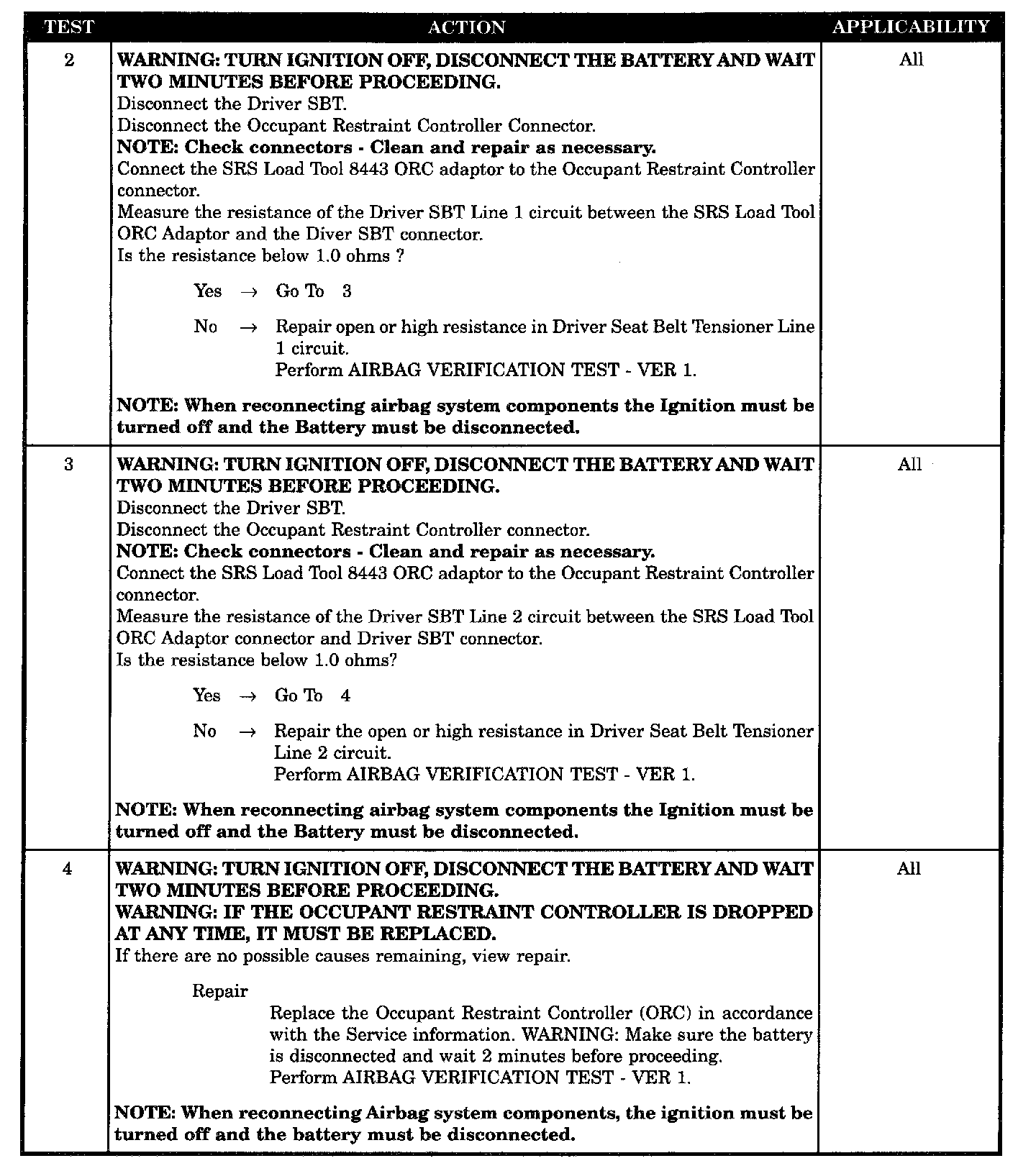

Tests 2 - 4:

SYMPTOM
ORC, DRIVER SBT CIRCUIT OPEN - ACTIVE

WHEN MONITORED
When the ignition is ON, the ORC monitors the resistance of the Driver Seat Belt Tensioner circuits.

SET CONDITION
The ORC has detected an open circuit or high resistance on the Driver Seat Belt Tensioner circuits.

POSSIBLE CAUSES
- Driver SBT circuits open
- Driver SBT line 1 circuit open
- Driver SBT line 2 circuit open
- ORC, Driver SBT circuits open
