ORC Cluster Messages Mismatch (Active)

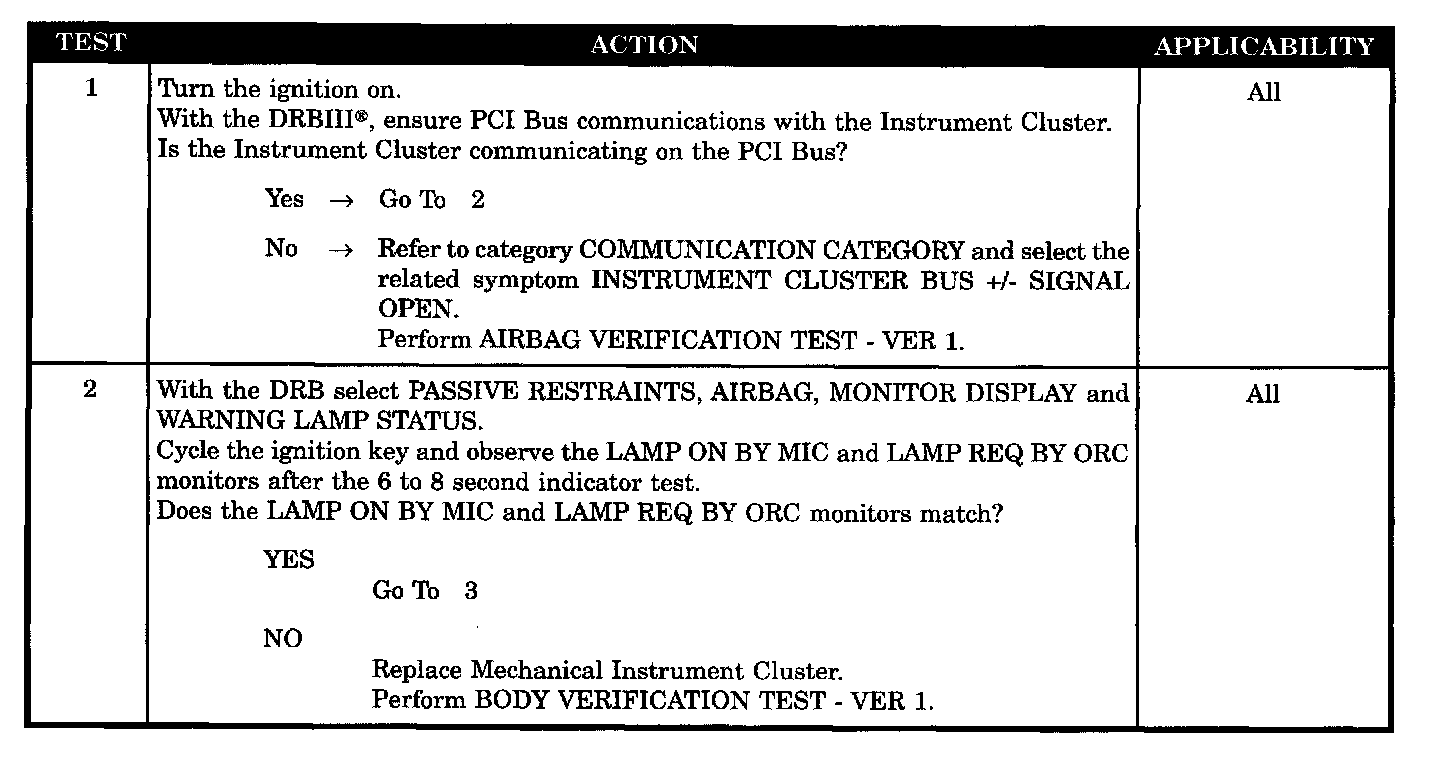

Tests 1 - 2:

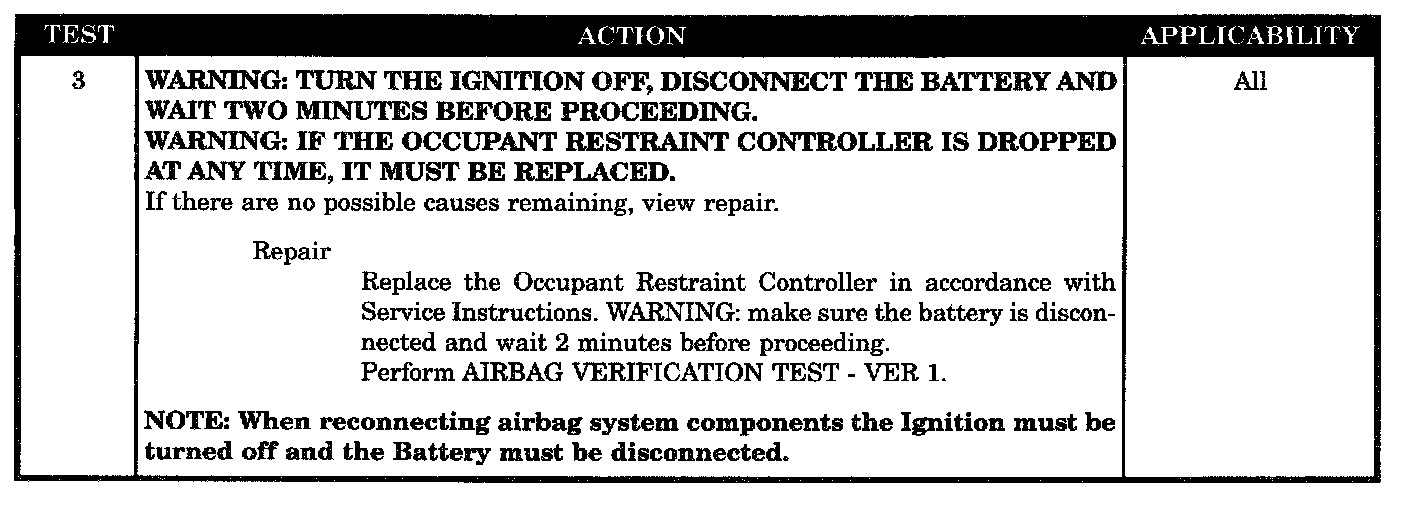

Test 3:

SYMPTOM
ORC, CLUSTER MESSAGE MISMATCH - ACTIVE

WHEN MONITORED
After the MIC bulb test is completed, the ORC compares the Lamp Request by ORC, ON or OFF; and the Lamp on by MIC, ON or OFF; PCI Bus messages. Each message is transmitted one time per second or when a change in the lamp state occur.

SET CONDITION
If the Lamp Request by ORC, ON or OFF; and the Lamp on by MIC, ON or OFF, messages do not match, the code will set.

POSSIBLE CAUSES
- MIC, Communication failure
- MIC, Cluster message mismatch
- ORC, Cluster message mismatch
